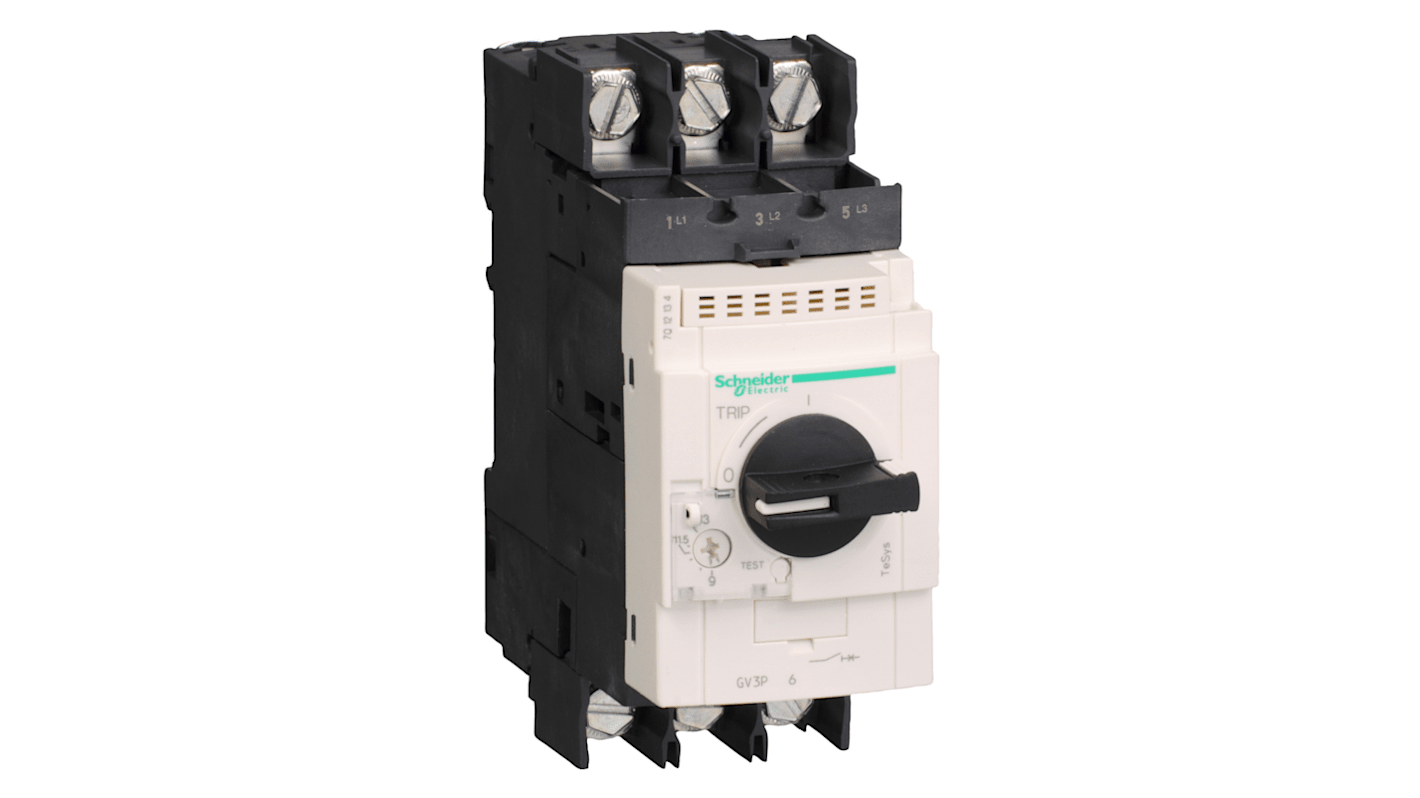

Schneider Electric TeSys Deca TeSys Deca Motor Protection Circuit Breaker - 3-Pole, DIN Rail, 40 A Current Rating, 100
- RS Stock No.:
- 256-4179
- Mfr. Part No.:
- GV3P406
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£371.83
(exc. VAT)
£446.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £371.83 |
*price indicative
- RS Stock No.:
- 256-4179
- Mfr. Part No.:
- GV3P406
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Motor Protection Circuit Breaker | |
| Current Rating | 40 A | |
| Series | TeSys Deca | |
| Number of Poles | 3 | |
| Range | TeSys Deca | |
| Width | 55 mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Handle | |
| Tripping Characteristics | Thermal Magnetic | |
| Standards/Approvals | EN/IEC 60947-2, UL 60947-4-1, CSA C22.2 No. 60947-4-1, EN/IEC 60947-4-1 | |
| Depth | 136mm | |
| Height | 55mm | |
| Rated AC Voltage | 690 V ac | |
| Breaking Capacity | 100kA | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Motor Protection Circuit Breaker | ||
Current Rating 40 A | ||
Series TeSys Deca | ||
Number of Poles 3 | ||
Range TeSys Deca | ||
Width 55 mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Handle | ||
Tripping Characteristics Thermal Magnetic | ||
Standards/Approvals EN/IEC 60947-2, UL 60947-4-1, CSA C22.2 No. 60947-4-1, EN/IEC 60947-4-1 | ||
Depth 136mm | ||
Height 55mm | ||
Rated AC Voltage 690 V ac | ||
Breaking Capacity 100kA | ||
- COO (Country of Origin):
- FR
The Schneider Electric Motor circuit breaker with thermal magnetic technology. It can operate in any position.
Lugs terminals
Ambient air temperature for storage -40 to 80 °C
IP degree of protection IP20
