ETA Thermal Circuit Breaker - 3120-N 5 Pole 50 V DC, 240 V AC Voltage Rating, 5A Current Rating
- RS Stock No.:
- 210-2110
- Mfr. Part No.:
- 3120-N554-P7T1-W02D-5A
- Brand:
- ETA
3 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£22.48
(exc. VAT)
£26.98
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £22.48 |
| 5 - 9 | £21.35 |
| 10 + | £19.65 |
- RS Stock No.:
- 210-2110
- Mfr. Part No.:
- 3120-N554-P7T1-W02D-5A
- Brand:
- ETA
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details

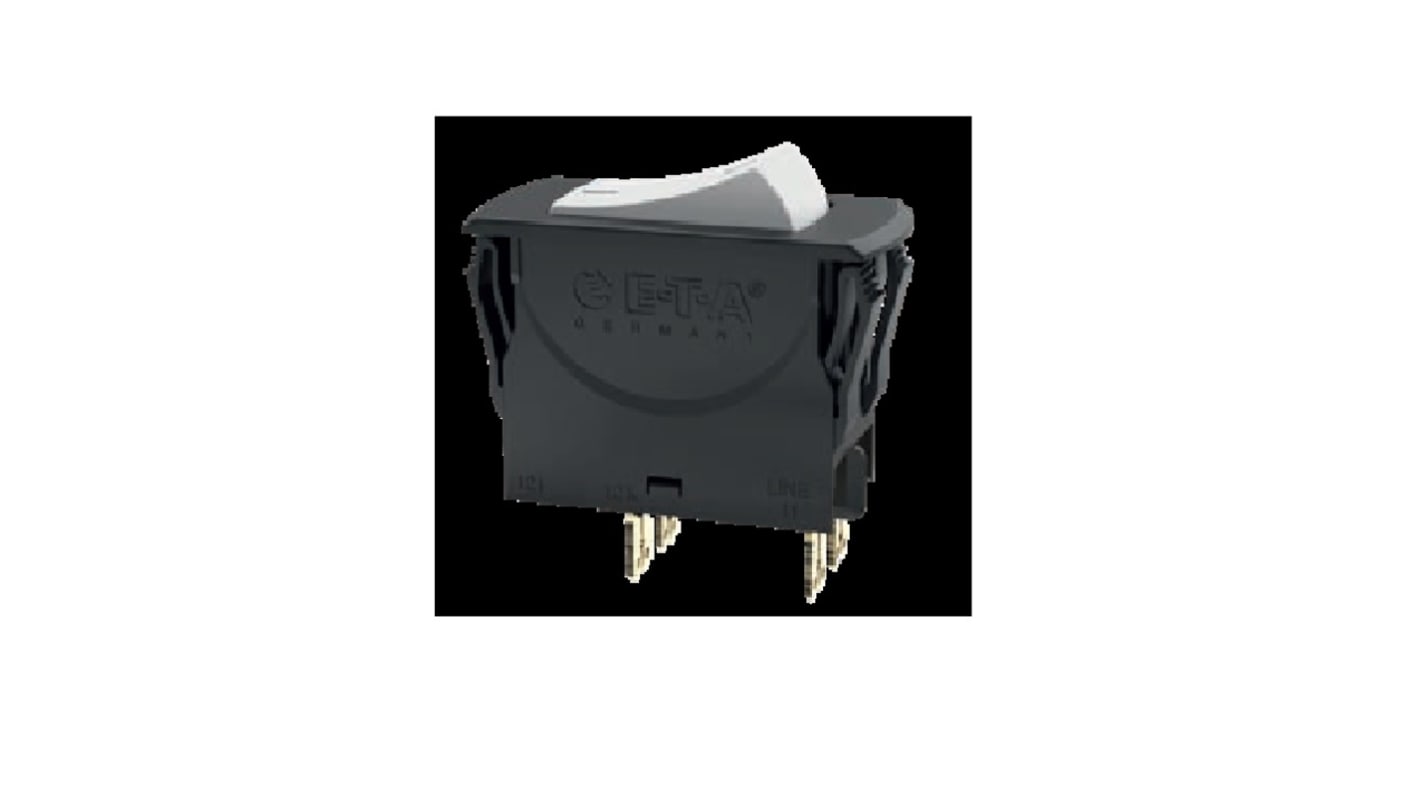

The ETA 3120-N 5-pole thermal rocker actuated circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. It has blade terminals. The trip element is a thermal bimetal. After tripping, it can reliably, easily and quickly be reset. The positively trip-free mechanism ensures reliable disconnection of the circuit even with the actuator blocked. It is ideally suited for overload protection of motors, pumps, transformers and cables.
Mounting type: Snap-in, cut-out 44.5mm x 22mm
Current rating: 5A
Extendable functionality through appliance inlet module
Water splash protection
Reduced mounting and wiring time
Space-saving design
Reduced disposition and storage costs
Increased overall reliability
Current rating: 5A
Extendable functionality through appliance inlet module
Water splash protection
Reduced mounting and wiring time
Space-saving design
Reduced disposition and storage costs
Increased overall reliability
Specifications
Attribute | Value |
|---|---|
| Current Rating | 5A |
| Number of Poles | 5 |
| Voltage Rating | 50 V DC, 240 V AC |
| Width | 28mm |
| Series | 3120-N |
| Circuit Breaker Type | Thermal Circuit Breaker |
