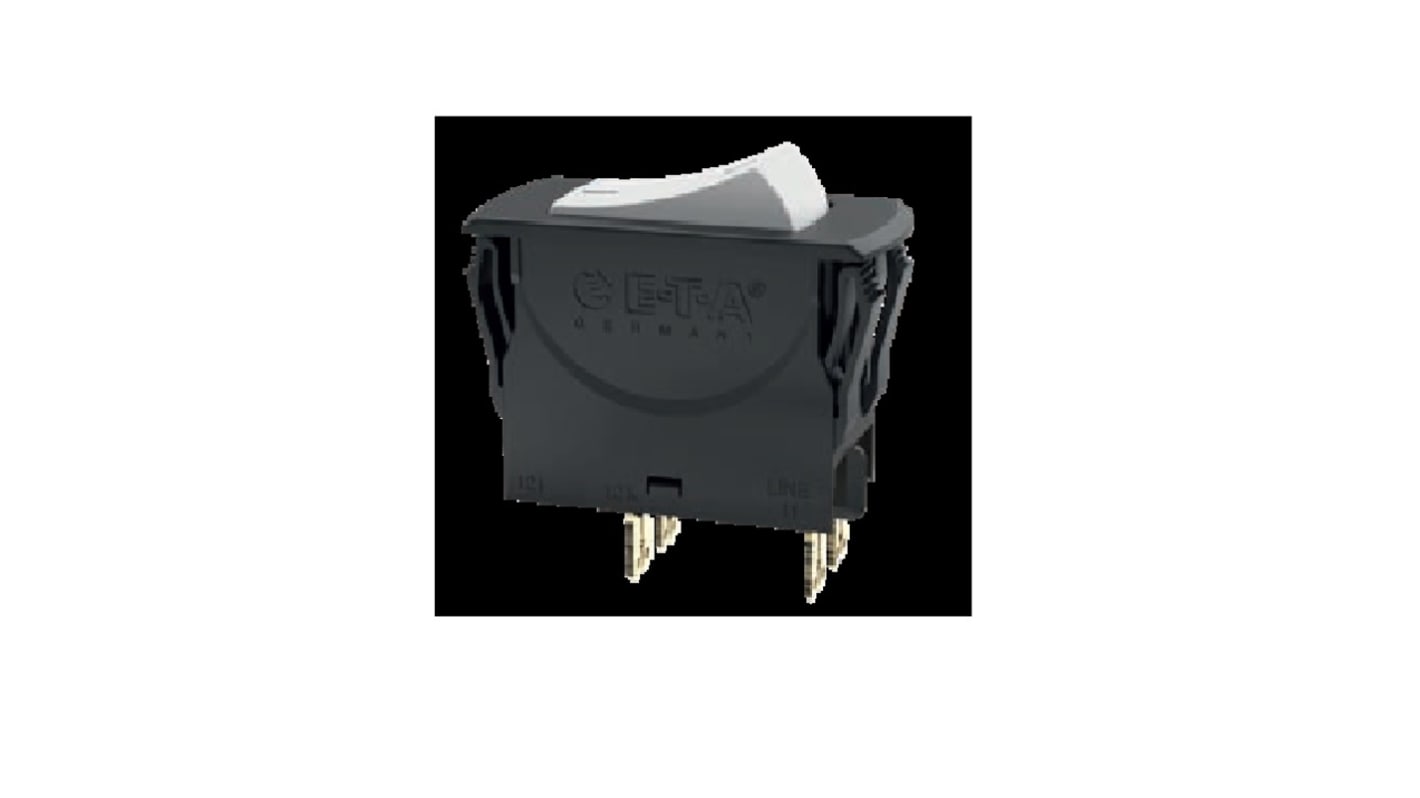

ETA Thermal Circuit Breaker - 3120-N 2 Pole 50 V DC, 240 V AC Voltage Rating, 20A Current Rating

View all Thermal Breakers
Bulk discount available

Subtotal (1 unit)*

£27.59

(exc. VAT)

£33.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
  • Plus 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£27.59
5 - 9£26.20
10 +£24.10

*price indicative

RS Stock No.:
210-2071
Mfr. Part No.:
3120-N521-H7T1-W01D-20A
Brand:
ETA
Find similar products by selecting one or more attributes.
Select all

Brand

ETA

Current Rating

20A

Number of Poles

2

Voltage Rating

50 V DC, 240 V AC

Width

25mm

Series

3120-N

Circuit Breaker Type

Thermal Circuit Breaker

COO (Country of Origin):
TN
The ETA 3120-N 2-pole thermal rocker actuated circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. It has blade terminals with flat head screws M3.5 for units with under voltage release module. The trip element is a thermal bimetal. After tripping, it can reliably, easily and quickly be reset. The positively trip-free mechanism ensures reliable disconnection of the circuit even with the actuator blocked. It is ideally suited for overload protection of motors, pumps, transformers and cables.

Mounting type: Snap-in, cut-out 44.5 x 22mm
Current rating: 20A
Extendable functionality through appliance inlet module
Power-on protection and water splash cover
Reduced mounting and wiring time
Space-saving design
Reduced disposition and storage costs
Increased overall reliability
