ETA Thermal Circuit Breaker - 3120-N 2 Pole 50 V DC, 240 V AC Voltage Rating, 15A Current Rating
- RS Stock No.:
- 210-2067
- Mfr. Part No.:
- 3120-N521-H7T1-W01D-15A-U0000M
- Brand:
- ETA
8 In stock - FREE next working day delivery available
Price Each
£49.86
(exc. VAT)
£59.83
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £49.86 |
| 5 - 9 | £47.36 |
| 10 + | £43.56 |
- RS Stock No.:
- 210-2067
- Mfr. Part No.:
- 3120-N521-H7T1-W01D-15A-U0000M
- Brand:
- ETA
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details

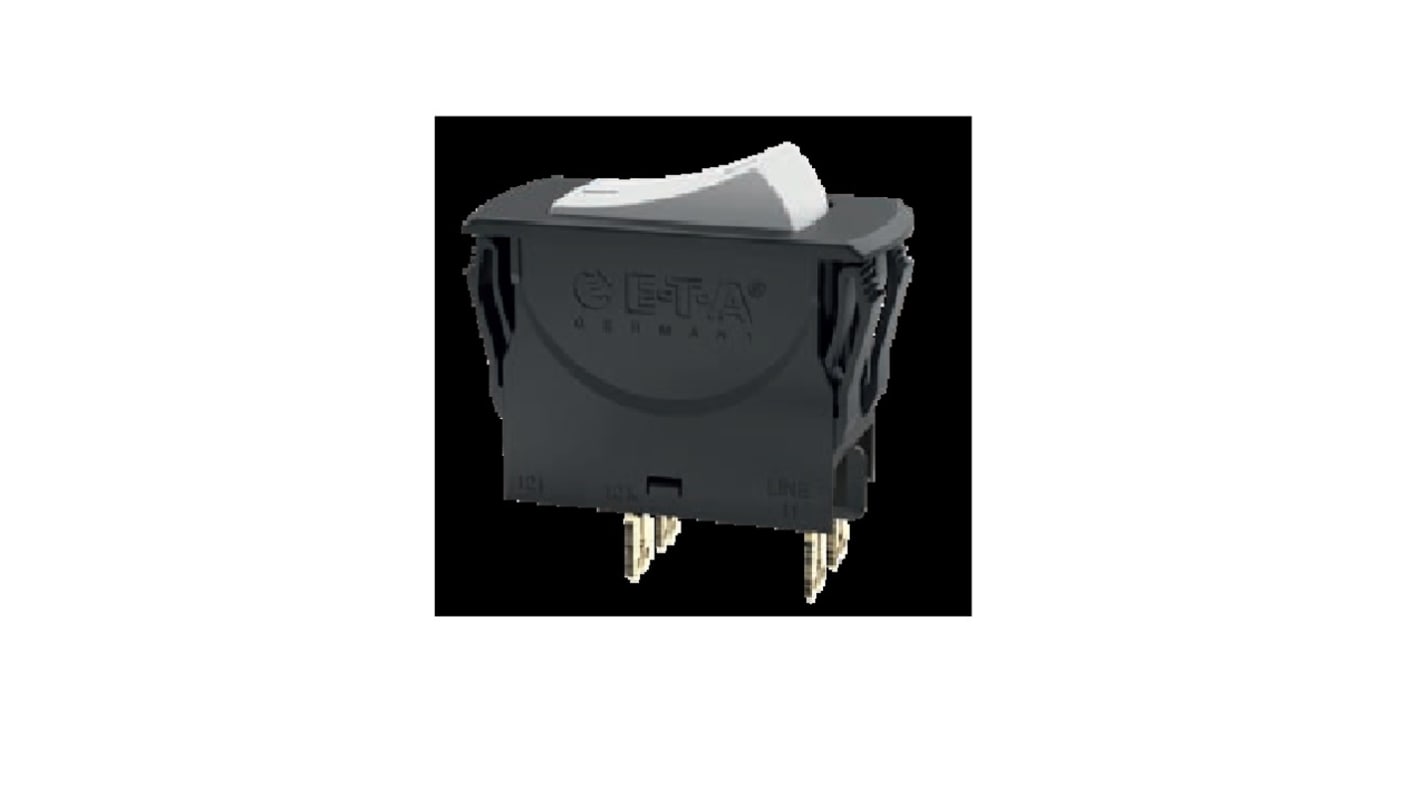

The ETA 3120-N 2-pole thermal rocker actuated circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. It has blade terminals with flat head screws M3.5 for units with under voltage release module. The trip element is a thermal bimetal. After tripping, it can reliably, easily and quickly be reset. The positively trip-free mechanism ensures reliable disconnection of the circuit even with the actuator blocked. It is ideally suited for overload protection of motors, pumps, transformers and cables.
Mounting type: Snap-in, cut-out 44.5 x 22mm
Current rating: 15A
Extendable functionality through appliance inlet module
Power-on protection and water splash cover
Reduced mounting and wiring time
Space-saving design
Reduced disposition and storage costs
Increased overall reliability
Current rating: 15A
Extendable functionality through appliance inlet module
Power-on protection and water splash cover
Reduced mounting and wiring time
Space-saving design
Reduced disposition and storage costs
Increased overall reliability
Specifications
Attribute | Value |
|---|---|
| Current Rating | 15A |
| Number of Poles | 2 |
| Voltage Rating | 50 V DC, 240 V AC |
| Width | 25mm |
| Series | 3120-N |
| Circuit Breaker Type | Thermal Circuit Breaker |
