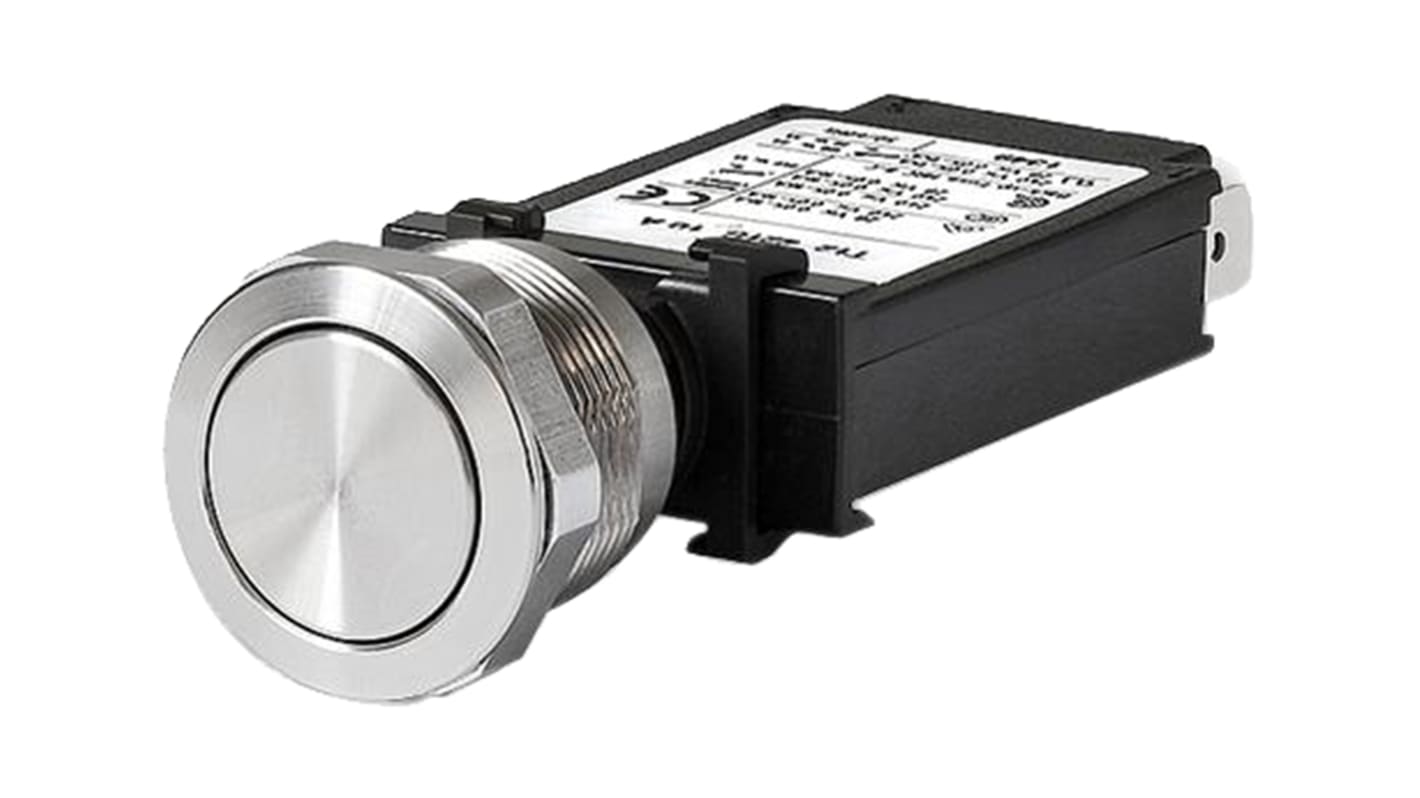

Schurter T12 T12 Thermal Circuit Breaker - 1-Pole, Panel, 10A Current Rating, 200 A, 240V ac, 28 V dc
- RS Stock No.:
- 173-8101
- Mfr. Part No.:
- 4410.9003
- Brand:
- Schurter
Subtotal (1 box of 10 units)*
£280.20
(exc. VAT)
£336.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 10 + | £28.02 | £280.20 |
*price indicative
- RS Stock No.:
- 173-8101
- Mfr. Part No.:
- 4410.9003
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Current Rating | 10A | |
| Product Type | Thermal Circuit Breaker | |
| Range | T12 | |
| Series | T12 | |
| Number of Poles | 1 | |
| Width | 11.5mm | |
| Mount Type | Panel | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Button | |
| Rated AC Voltage | 240V ac | |
| Standards/Approvals | RoHS | |
| Depth | 14.7mm | |
| Height | 48.5mm | |
| Rated DC Voltage | 28V dc | |
| Breaking Capacity | 200A | |
| Break Time | Short | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Current Rating 10A | ||
Product Type Thermal Circuit Breaker | ||
Range T12 | ||
Series T12 | ||
Number of Poles 1 | ||
Width 11.5mm | ||
Mount Type Panel | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Button | ||
Rated AC Voltage 240V ac | ||
Standards/Approvals RoHS | ||
Depth 14.7mm | ||
Height 48.5mm | ||
Rated DC Voltage 28V dc | ||
Breaking Capacity 200A | ||
Break Time Short | ||
- COO (Country of Origin):
- DE
T12-MSM Series Circuit Breaker
Schurter T12-MSM Series, 1 pole thermal circuit breaker with non-illuminated metal switch. Available in rated currents of 10A and 16A with quick connect terminals 6.3 x 0.8 mm. Applications include power supplies, uninterruptible power supplies, power tools and household appliances.
Thermal Magnetic Convertible
All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).
Approvals
IEC, UL
