MPN

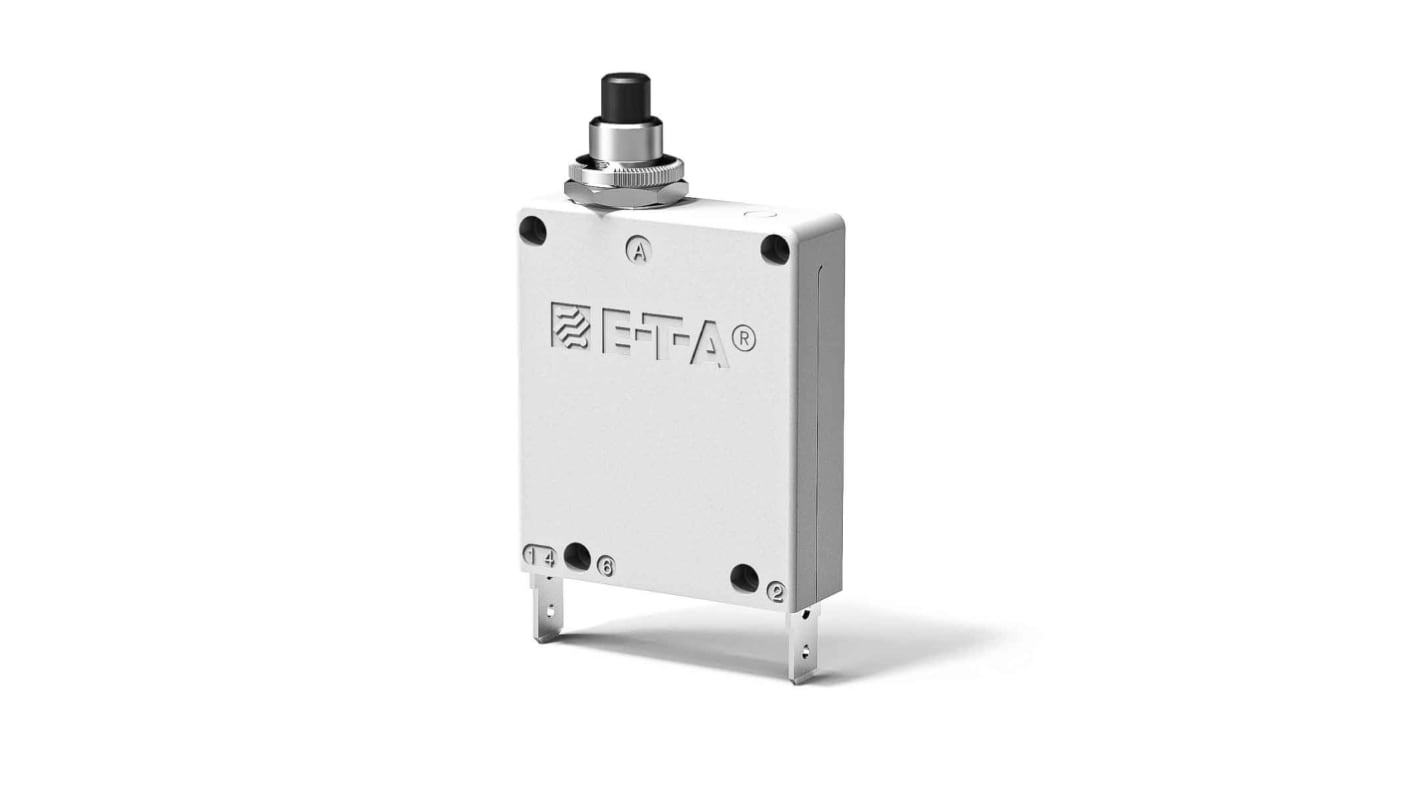

ETA 3400 Thermal Magnetic Circuit Breaker - 1-Pole, Panel, 5 A Current Rating, 25 A, 240 V ac, 80 V dc

Bulk discount available

Subtotal (1 unit)*

£45.84

(exc. VAT)

£55.01

(inc. VAT)

Stock information currently inaccessible - Please check back later

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ETA
	Current Rating	5 A
	Product Type	Thermal Magnetic Circuit Breaker
	Number of Poles	1
	Series	3400
	Width	14.5 mm
	Mount Type	Panel
	Terminal Type	Screw
	Tripping Mechanism	Thermal Magnetic
	Reset Actuator Type	Button
	Tripping Characteristics	Type R
	Standards/Approvals	RoHS, CE
	Height	50.8mm
	Rated AC Voltage	240 V ac
	Breaking Capacity	25A
	Break Time	Medium
	Rated DC Voltage	80 V dc

	Select all
	Brand ETA
	Current Rating 5 A
	Product Type Thermal Magnetic Circuit Breaker
	Number of Poles 1
	Series 3400
	Width 14.5 mm
	Mount Type Panel
	Terminal Type Screw
	Tripping Mechanism Thermal Magnetic
	Reset Actuator Type Button
	Tripping Characteristics Type R
	Standards/Approvals RoHS, CE
	Height 50.8mm
	Rated AC Voltage 240 V ac
	Breaking Capacity 25A
	Break Time Medium
	Rated DC Voltage 80 V dc

1-pole operation

1 N/O + 1 N/C auxiliary contacts, for signalling purposes

Manual reset, tease-free, trip-free mechanism

Pull, manual release function

Small physical size

Delayed overload characteristics

20 - 30 second tripping time @ 2xI_N

IEC Classification R/TM

Typical life - 5000 Ops.

All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).

UL, CSA, VDE, Demko, Nemko, ABS, BV, LRoS
