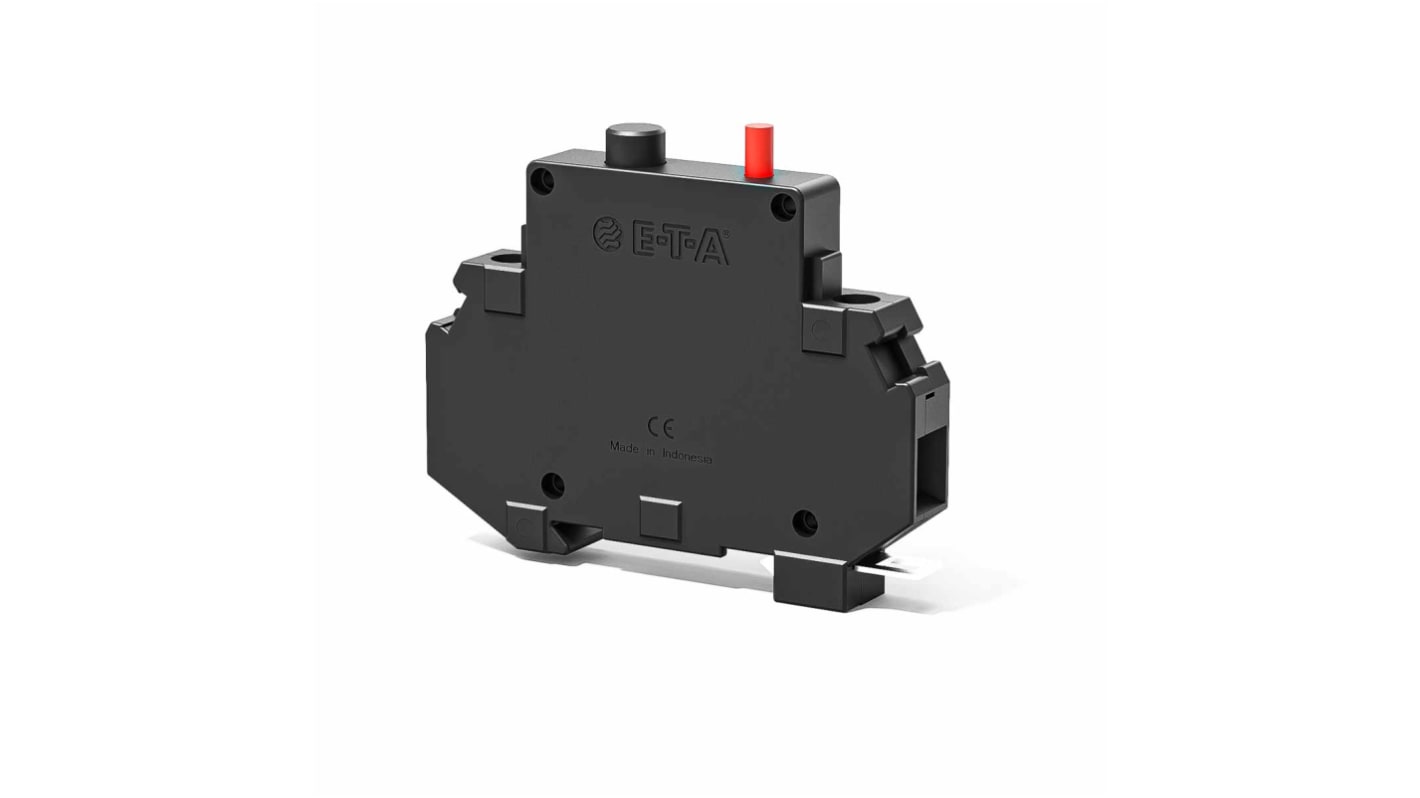

ETA 201 201 Thermal Magnetic Circuit Breaker - 1-Pole, DIN Rail, 500 mA Current Rating, 200 A, 250 V ac, 65 V dc
- RS Stock No.:
- 333-221
- Mfr. Part No.:
- 201-0.5A
- Brand:
- ETA
Bulk discount available
Subtotal (1 unit)*
£38.45
(exc. VAT)
£46.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 23 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £38.45 |
| 10 - 24 | £37.04 |
| 25 - 49 | £35.68 |
| 50 - 99 | £34.49 |
| 100 + | £33.34 |
*price indicative
- RS Stock No.:
- 333-221
- Mfr. Part No.:
- 201-0.5A
- Brand:
- ETA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ETA | |
| Product Type | Thermal Magnetic Circuit Breaker | |
| Current Rating | 500 mA | |
| Range | 201 | |
| Number of Poles | 1 | |
| Series | 201 | |
| Width | 80 mm | |
| Mount Type | DIN Rail | |
| Mount Hole Size | 8.5 mm | |
| Terminal Type | Recessed Terminal | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Button | |
| Tripping Characteristics | Thermomagnetic, current characteristic depends on ambient temperature, time | |
| Depth | 80mm | |
| Height | 64mm | |
| Standards/Approvals | CSA, LROS, VDE, DEMKO, ABS, BV, UL | |
| Rated AC Voltage | 250 V ac | |
| Rated DC Voltage | 65 V dc | |
| Breaking Capacity | 200A | |
| Select all | ||
|---|---|---|
Brand ETA | ||
Product Type Thermal Magnetic Circuit Breaker | ||
Current Rating 500 mA | ||
Range 201 | ||
Number of Poles 1 | ||
Series 201 | ||
Width 80 mm | ||
Mount Type DIN Rail | ||
Mount Hole Size 8.5 mm | ||
Terminal Type Recessed Terminal | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Button | ||
Tripping Characteristics Thermomagnetic, current characteristic depends on ambient temperature, time | ||
Depth 80mm | ||
Height 64mm | ||
Standards/Approvals CSA, LROS, VDE, DEMKO, ABS, BV, UL | ||
Rated AC Voltage 250 V ac | ||
Rated DC Voltage 65 V dc | ||
Breaking Capacity 200A | ||
DIN Rail Mount, 201 Series
Single-pole thermal/magnetic circuit breakers which may be housed in any of the modular DIN 43 880 enclosures (refer to the Enclosures Sections). The speed of operation together with the availability of low current ratings offer the possibility of finely tuned performance not achievable with other forms of protection.
Close tolerance overload characteristics for professional equipment/system protection
Twin button operation (black reset/red trip)
Trip-free/tease-free operation
Only 12·5mm wide (compared to standard MCBs 17·5mm)
Approved for 250V a.c./65V d.c. operation
IEC Classification M/TM
Breaking Capacity: 200A (up to 2A), 400A (3A and above)
Thermal Magnetic Convertible
All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).
Approvals
UL, CSA, VDE, Demko, ABS, BV, LRoS
