Hirschmann Test & Measurement Connector Test Lead 10A, 1000 V, Black, 250 mm Lead Length

View all Test Leads
Bulk discount available

Subtotal (1 unit)*

£8.02

(exc. VAT)

£9.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 55 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£8.02
10 - 24£7.40
25 +£6.85

*price indicative

RS Stock No.:
884-9115
Mfr. Part No.:
975694700
Brand:
Hirschmann Test & Measurement
Find similar products by selecting one or more attributes.
Select all

Brand

Hirschmann Test & Measurement

Lead Length

250mm

Product Type

Connector Test Lead

Connector Orientation A

Straight

Current

10A

Connector Shrouded A

Yes

Test Lead Type

2 mm Connector Test Lead

Connector Stackable A

Yes

Colour

Black

Voltage

1000 V

Connector Orientation B

Straight

Connector Stackable B

Yes

Connector Shrouded B

Yes

Connector Gender A

Male

Connector Gender B

Male

Contact Material

Beryllium Copper Alloy, Brass

Standards/Approvals

No

Insulation Material

Polyamide

Minimum Operating Temperature

-15°C

Safety Category Level

CAT III

Maximum Operating Temperature

70°C

COO (Country of Origin):
DE

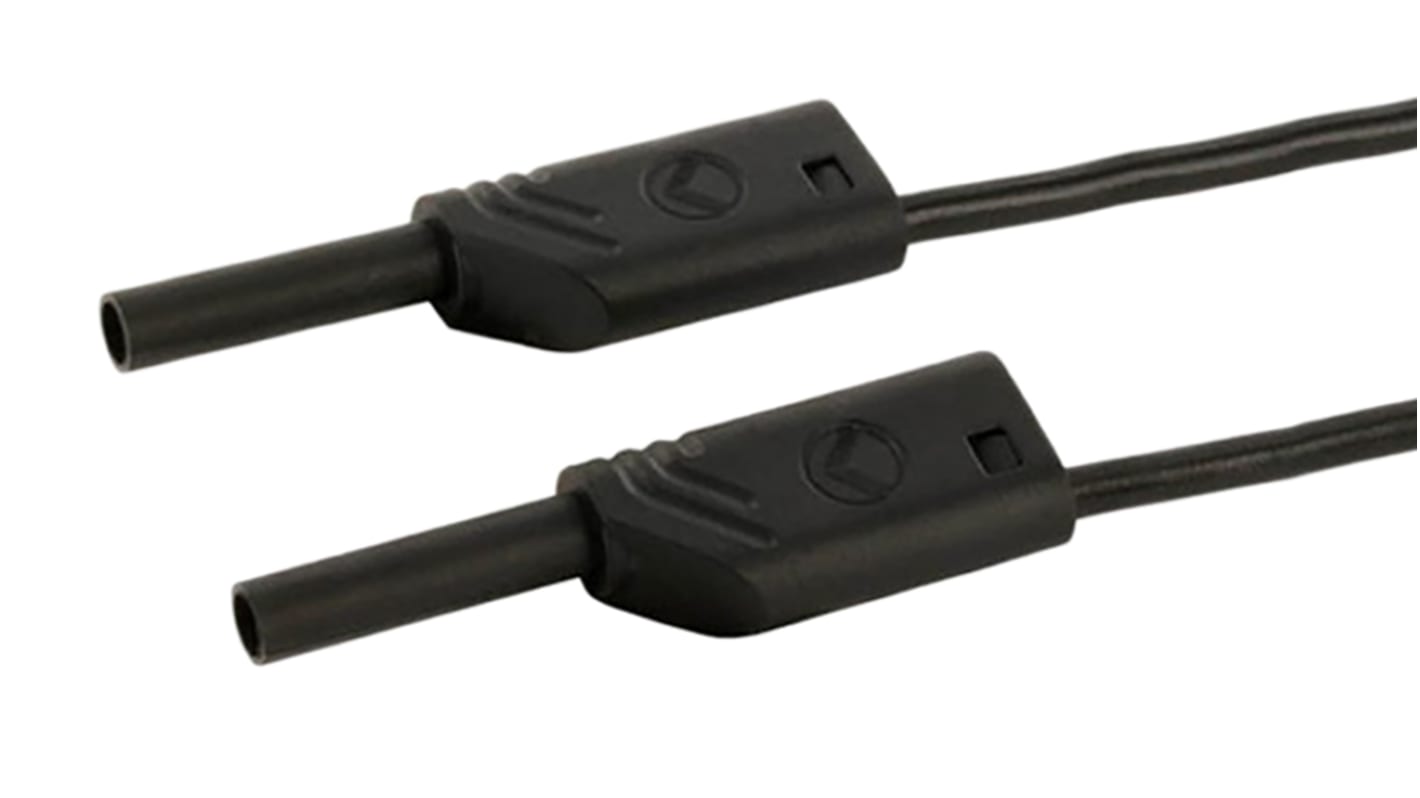

MVL S WS, Hirschmann Test and Measurement, CAT III, 25cm Safety Measuring Lead, 2mm Diameter


Hirschmann Test and Measurement, MVL S WS type, CAT III, 25cm safety measuring lead, with 2mm diameter safety plugs on both sides and 2mm sockets for stacking. These leads feature a gold-plated copper beryllium contact spring are highly flexible, and have a double insulated stranded lead and shatter-proof grip sleeves. Built in cable sheath colour indicator for easy identification of insulation damage.

Features and Benefits


Rated at 10A, 1000V AC/DC

Operating temperature -15 to +70 C° C

10 mΩ contact resistance

Dual layer PVC Cable sheath, with damage indicator

2mm Hirschmann Test Connectors


Standards

IEC 61010
