Hirschmann Test & Measurement Connector Test Lead 32A, 1000 V, Red, 250 mm Lead Length

View all Test Leads

Subtotal (1 unit)*

£6.30

(exc. VAT)

£7.56

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 21 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£6.30

*price indicative

RS Stock No.:
884-8945
Mfr. Part No.:
934079101
Brand:
Hirschmann Test & Measurement
Find similar products by selecting one or more attributes.
Select all

Brand

Hirschmann Test & Measurement

Lead Length

250mm

Product Type

Connector Test Lead

Connector Stackable A

No

Connector Orientation A

Angled

Test Lead Type

4 mm Connector Test Lead

Connector Shrouded A

Yes

Current

32A

Colour

Red

Voltage

1000 V

Connector Stackable B

No

Connector Shrouded B

Yes

Connector Orientation B

Straight

Connector Gender A

Male

Connector Gender B

Male

Contact Material

Beryllium Copper Alloy, Brass

Standards/Approvals

No

Insulation Material

Polyamide

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

70°C

Safety Category Level

CAT III

COO (Country of Origin):
DE

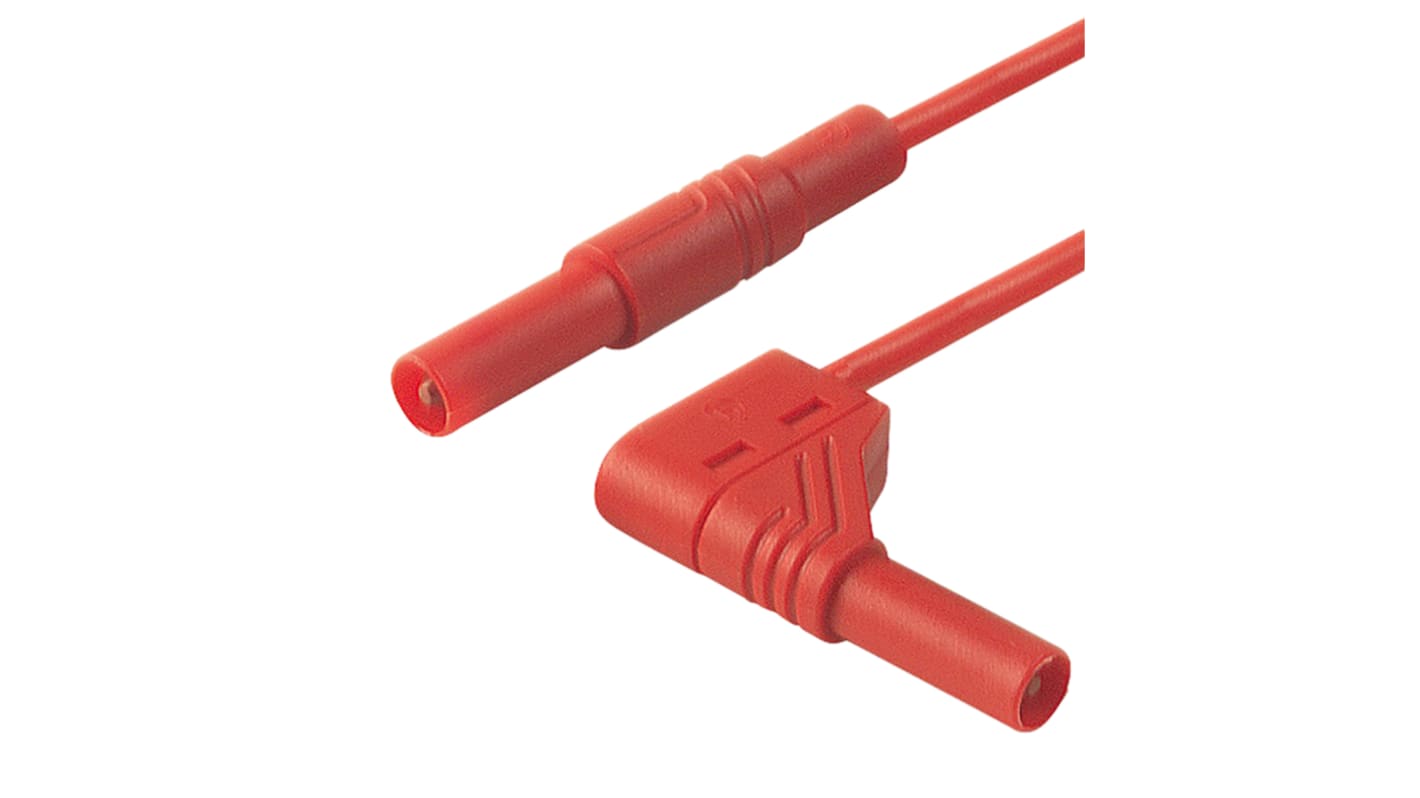

MLS WG 25,50,100,200/2.5 CAT III 4mm Measuring Leads


Hirschmann Test and Measurement MLS WG 4mm CAT III measuring leads have a 4mm diameter safety connector with a straight outlet one end and an 90 degree angled connector on the other. These measuring and test leads have a nickel plated copper beryllium contact spring, highly flexible,double insulated stranded lead and a shatter-proof sleeve. The test lead cable has a built in colour indicator for easy identification of insulation damage by means of a different coloured inner core of insulation.

Rated voltage 1000 VAC/DC

Rated current 32A

CAT III

PVC Insulated

100cm in length

Wire stranding 320 x 0.10mm

Contact resistance 12 mΩ
