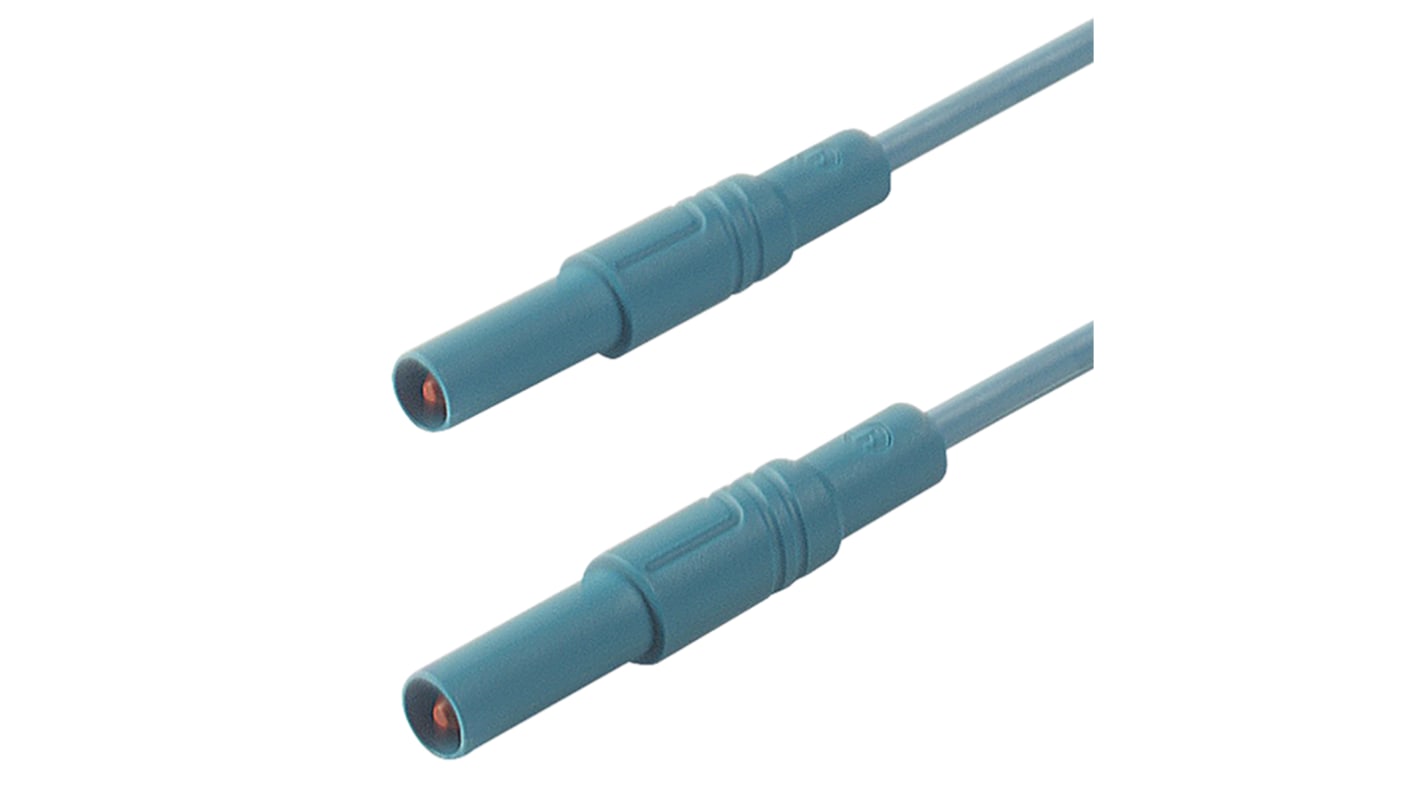

Hirschmann Test & Measurement Connector Test Lead 16A, 1000 V, Blue, 500 mm Lead Length

View all Test Leads

Subtotal (1 unit)*

£4.83

(exc. VAT)

£5.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£4.83

*price indicative

RS Stock No.:
884-8904
Mfr. Part No.:
934072102
Brand:
Hirschmann Test & Measurement
Find similar products by selecting one or more attributes.
Select all

Brand

Hirschmann Test & Measurement

Product Type

Connector Test Lead

Lead Length

500mm

Current

16A

Connector Stackable A

No

Connector Orientation A

Straight

Test Lead Type

4 mm Connector Test Lead

Connector Shrouded A

Yes

Colour

Blue

Connector Shrouded B

Yes

Connector Orientation B

Straight

Voltage

1000 V

Connector Stackable B

No

Connector Gender A

Male

Connector Gender B

Male

Contact Material

Beryllium Copper Alloy

Standards/Approvals

No

Insulation Material

Polyamide

Maximum Operating Temperature

70°C

Safety Category Level

CAT III

Minimum Operating Temperature

-15°C

COO (Country of Origin):
DE

MLS GG 25,50,100,200/1, CAT III 4mm Measuring Leads


Hirschmann Test and Measurement MLS GG, 4mm CAT III measuring leads have a 4mm diameter safety connector with a straight outlet each end and feature a 1mm² multi-stranded cable. These MLS GG type measuring and test leads have a nickel plated copper beryllium contact spring, highly flexible,double insulated stranded lead and a shatter-proof sleeve, and are available in various lengths and colours. The test lead cable has a built in colour indicator for easy identification of insulation damage by means of a different coloured inner core of insulation.

Features and Benefits:

• Rated voltage 1000 VAC/DC

• Rated current 32A

• CAT III

• Cable Material Silicon

• Contact resistance 12 mΩ
