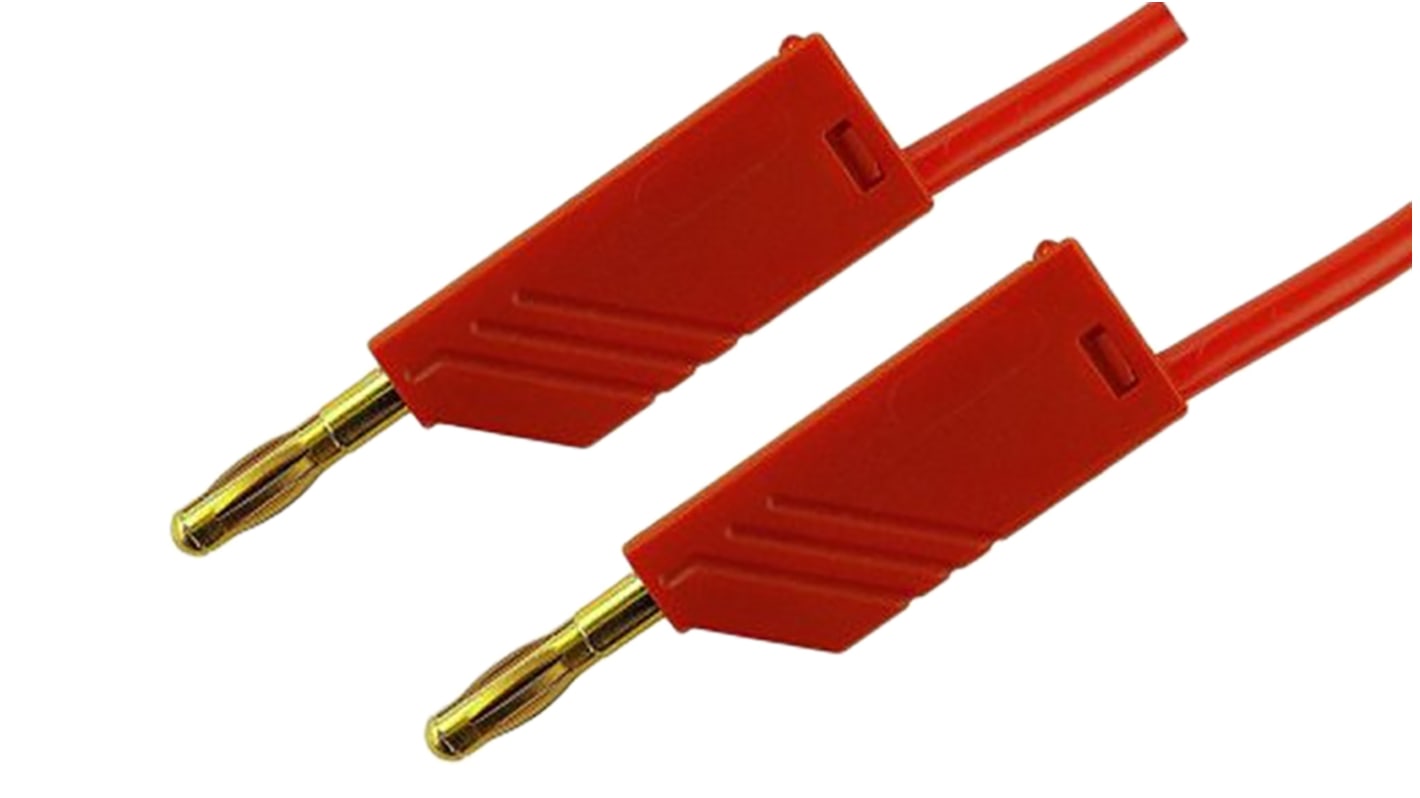

Hirschmann Test & Measurement, 32A, 30 V ac, 60V dc, Red, 500mm Lead Length
- RS Stock No.:
- 884-8850
- Mfr. Part No.:
- 934061701
- Brand:
- Hirschmann Test & Measurement
85 In stock - FREE next working day delivery available
31 available from Europe for delivery within 2 working day(s).
Price Each
£9.02
(exc. VAT)
£10.82
(inc. VAT)
Units | Per unit |
---|---|
1 - 9 | £9.02 |
10 - 24 | £8.33 |
25 + | £7.66 |
- RS Stock No.:
- 884-8850
- Mfr. Part No.:
- 934061701
- Brand:
- Hirschmann Test & Measurement
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
MLN 2.5 Stackable 4mm Measuring Leads
Hirschmann Test and Measurement MLN 2.5, 4mm measuring leads have at either end a 4mm diameter plug with caged spring and 4mm diameter socket for tower construction. These measuring and test leads have a nickel or gold plated, copper beryllium contact spring, highly flexible,double insulated stranded lead and a shatter-proof sleeve. The test lead cable has a built in colour indicator for easy identification of insulation damage by means of a different coloured inner core of insulation.
Rated voltage 30 VAC / 60 VDC
Rated current 32A
CAT I
PVC Insulated
Wire stranding 320 x 0.10mm
Contact resistance 12mΩ (100cm) 20mΩ (200cm)
Rated current 32A
CAT I
PVC Insulated
Wire stranding 320 x 0.10mm
Contact resistance 12mΩ (100cm) 20mΩ (200cm)
Note
All manufacturing part numbers ending in 7** are gold plated variants.
Specifications
Attribute | Value |
---|---|
Lead Length | 500mm |
Current Rating | 32A |
Test Lead Type | 4 mm Connector Test Leads |
Colour | Red |
Voltage Rating | 30 V ac, 60V dc |
Connector A Gender | Male |
Connector B Gender | Male |
Connector B Shrouded | Yes |
Connector A Stackable | Yes |
Connector B Stackable | Yes |
Connector A Orientation | Straight |
Connector B Orientation | Straight |
Contact Material | Gold-Plated |
Insulation Material | PA |
Minimum Operating Temperature | -15°C |
Operating Temperature Range | -15 → +70 °C |
Safety Category Level | CAT I |
Maximum Operating Temperature | +70°C |
