Hirschmann Test & Measurement, 16A, 60V dc, Yellow, 2m Lead Length
- RS Stock No.:
- 346-9200
- Mfr. Part No.:
- 934065103
- Brand:
- Hirschmann Test & Measurement
50 In stock - FREE next working day delivery available
5 available from Europe for delivery within 1 working day(s).
Added
Price Each
£11.19
(exc. VAT)
£13.43
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £11.19 |
| 10 - 24 | £10.33 |
| 25 + | £9.52 |
- RS Stock No.:
- 346-9200
- Mfr. Part No.:
- 934065103
- Brand:
- Hirschmann Test & Measurement
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

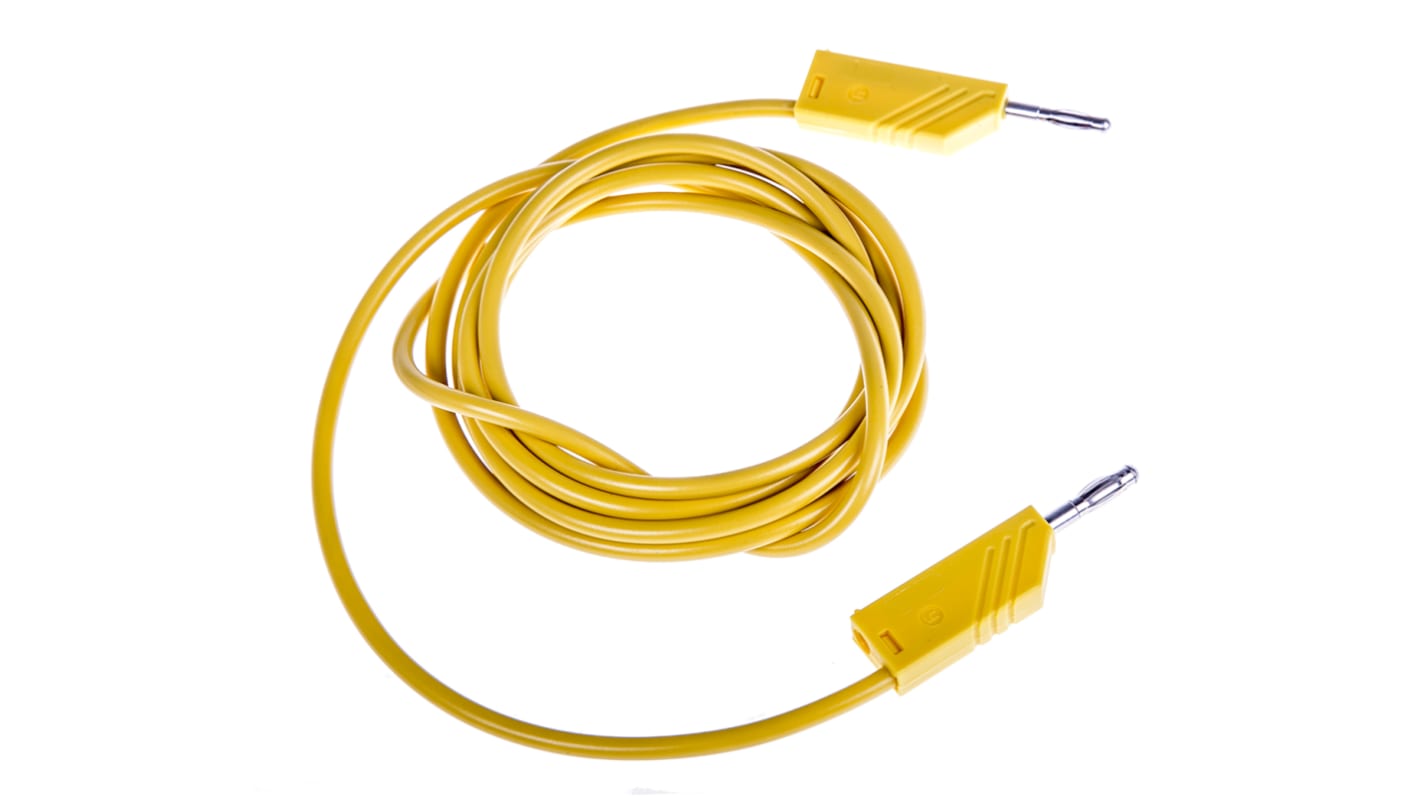

Moulded measuring leads 1 mm2
Moulded test leads fitted with 4 mm male plugs on each end with cage springs and same-diameter sockets for tower connection.
These leads are made from very flexible, multi-strand twisted wire, with double insulation.
The assembly is designed to be crush resistant.
These leads are made from very flexible, multi-strand twisted wire, with double insulation.
The assembly is designed to be crush resistant.
Specifications
Attribute | Value |
|---|---|
| Lead Length | 2m |
| Current Rating | 16A |
| Test Lead Type | 4 mm Connector Test Leads |
| Colour | Yellow |
| Voltage Rating | 60V dc |
| Connector A Gender | Male |
| Connector B Gender | Male |
| Connector A Orientation | Straight |
| Connector B Orientation | Straight |
| Contact Material | Beryllium Copper, Brass |
| Insulation Material | PVC |
| Operating Temperature Range | -15 → +70 °C |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
