Electro PJP Plug 12A, 1 kV, Green, 1 m Lead Length
- RS Stock No.:
- 287-9048
- Mfr. Part No.:
- 2710-IEC-100V
- Brand:
- Electro PJP
Subtotal (1 unit)*
£5.78
(exc. VAT)
£6.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.78 |
*price indicative
- RS Stock No.:
- 287-9048
- Mfr. Part No.:
- 2710-IEC-100V
- Brand:
- Electro PJP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Electro PJP | |
| Product Type | Plug | |
| Lead Length | 1m | |
| Test Lead Type | 4 mm Banana Cable | |
| Colour | Green | |
| Current | 12A | |
| Voltage | 1 kV | |
| Connector Gender A | Male | |
| Connector Gender B | Male | |
| Standards/Approvals | European " RoHS" 2011/65/UE, EN / IEC 60529, Standard NF C 93440:1986, EN / IEC 61010031:2015, European "Low Voltage " 2014/35/EU | |
| Contact Material | Annealed Copper, Nickel Coated Brass | |
| Safety Category Voltage | 1000V | |
| Maximum Operating Temperature | 40°C | |
| Minimum Operating Temperature | -20°C | |
| Safety Category Level | 1000 V CAT III, 1000 V CAT II, 600 V CAT IV | |
| Select all | ||
|---|---|---|
Brand Electro PJP | ||
Product Type Plug | ||
Lead Length 1m | ||
Test Lead Type 4 mm Banana Cable | ||
Colour Green | ||
Current 12A | ||
Voltage 1 kV | ||
Connector Gender A Male | ||
Connector Gender B Male | ||
Standards/Approvals European " RoHS" 2011/65/UE, EN / IEC 60529, Standard NF C 93440:1986, EN / IEC 61010031:2015, European "Low Voltage " 2014/35/EU | ||
Contact Material Annealed Copper, Nickel Coated Brass | ||
Safety Category Voltage 1000V | ||
Maximum Operating Temperature 40°C | ||
Minimum Operating Temperature -20°C | ||
Safety Category Level 1000 V CAT III, 1000 V CAT II, 600 V CAT IV | ||
- COO (Country of Origin):
- FR

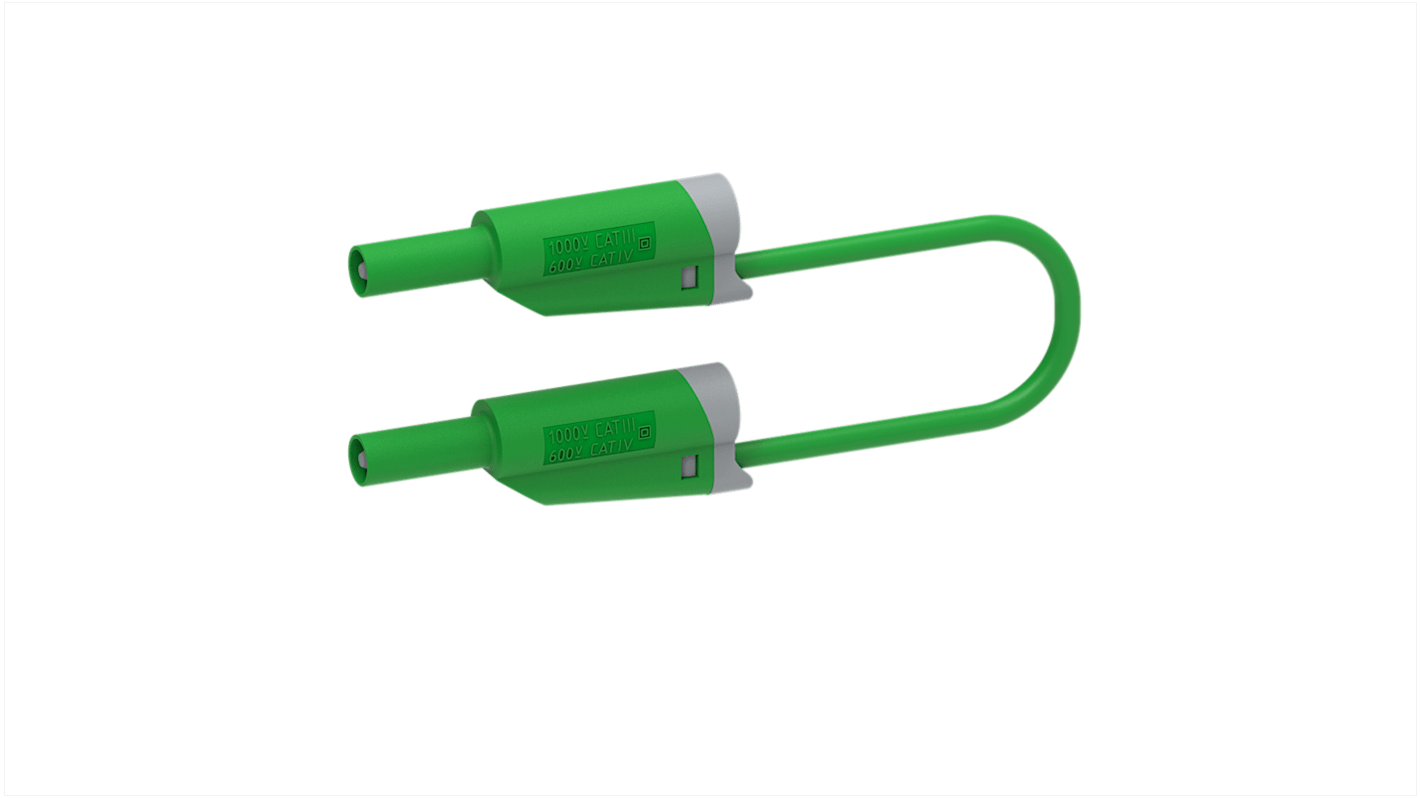

The Electro PJP Stackable safety banana plug is used to connect banana jacks, sockets and binding posts. It can be useful for general electronic testing, controlling and measuring.
Nickel coated Brass and red annealed copper conductor
PP plastic material
