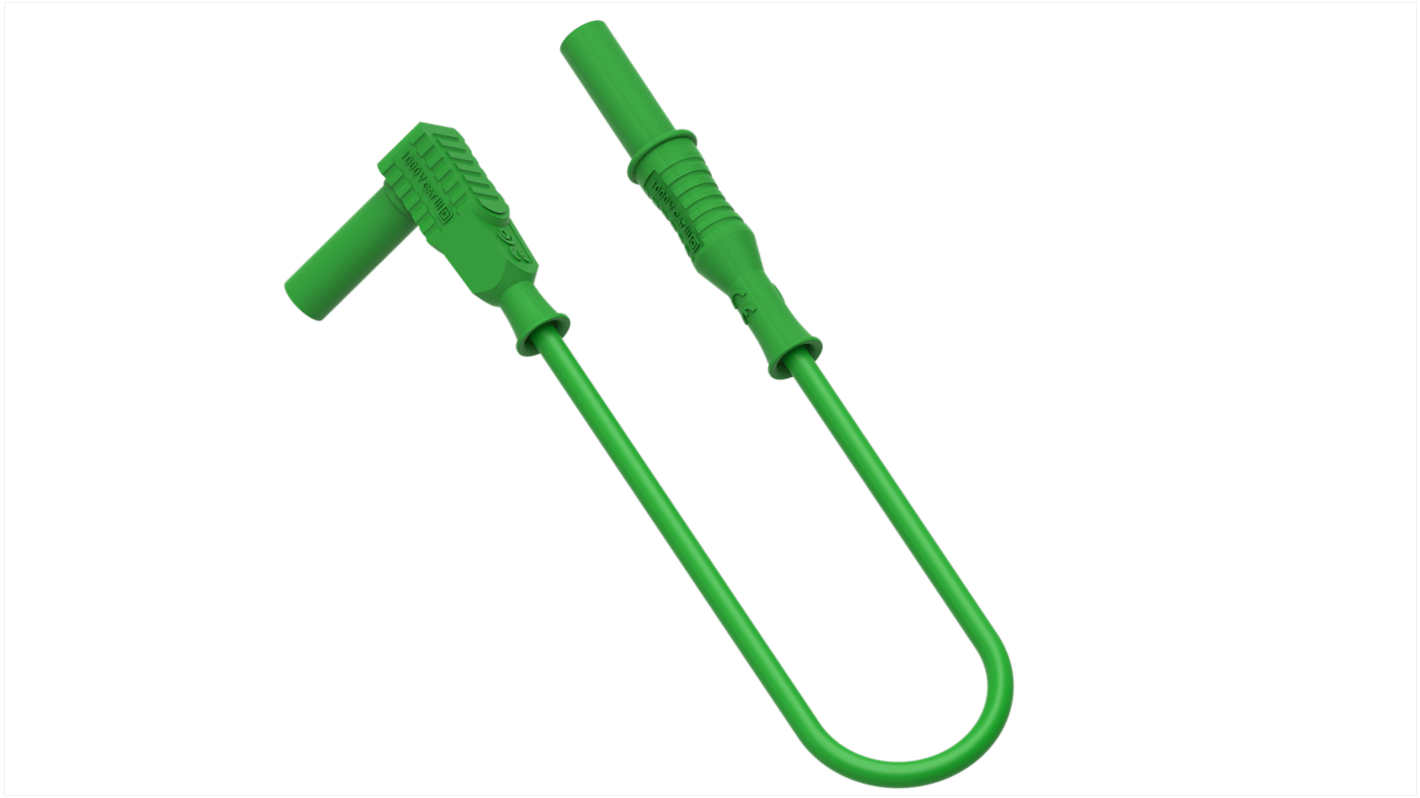

Electro PJP Test Lead 36A, 1000 V, 200 cm Lead Length
- RS Stock No.:
- 287-9044
- Mfr. Part No.:
- 2357-IEC-50V
- Brand:
- Electro PJP
Subtotal (1 unit)*
£5.98
(exc. VAT)
£7.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.98 |
*price indicative
- RS Stock No.:
- 287-9044
- Mfr. Part No.:
- 2357-IEC-50V
- Brand:
- Electro PJP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Electro PJP | |
| Lead Length | 200cm | |
| Product Type | Test Lead | |
| Connector Orientation A | Straight | |
| Current | 36A | |
| Voltage | 1000 V | |
| Connector Orientation B | Right Angle | |
| Connector Gender A | Male | |
| Connector Gender B | Male | |
| Standards/Approvals | EN / IEC 61010-031:2015, EN / IEC 60529, European Directive 2014/35/EU, European Directive 2011/65/EU | |
| Contact Material | Nickel Coated Brass | |
| Insulation Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -20°C | |
| Safety Category Voltage | 1000V | |
| Safety Category Level | 1000 V CAT III | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand Electro PJP | ||
Lead Length 200cm | ||
Product Type Test Lead | ||
Connector Orientation A Straight | ||
Current 36A | ||
Voltage 1000 V | ||
Connector Orientation B Right Angle | ||
Connector Gender A Male | ||
Connector Gender B Male | ||
Standards/Approvals EN / IEC 61010-031:2015, EN / IEC 60529, European Directive 2014/35/EU, European Directive 2011/65/EU | ||
Contact Material Nickel Coated Brass | ||
Insulation Material Polyvinyl Chloride | ||
Minimum Operating Temperature -20°C | ||
Safety Category Voltage 1000V | ||
Safety Category Level 1000 V CAT III | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- FR
The Electro PJP Safety banana plug is used to connect banana jacks, sockets and binding posts. It can be useful for very low voltage general electronic testing, controlling and measuring.
Nickel coated Brass conductor
PP plastic material
