Electro PJP Banana Plug 36A, 1000 V, 200 cm Lead Length
- RS Stock No.:
- 287-9030
- Mfr. Part No.:
- 2357-IEC-100J
- Brand:
- Electro PJP
Subtotal (1 unit)*
£7.23
(exc. VAT)
£8.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.23 |
*price indicative
- RS Stock No.:
- 287-9030
- Mfr. Part No.:
- 2357-IEC-100J
- Brand:
- Electro PJP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Electro PJP | |
| Product Type | Banana Plug | |
| Lead Length | 200cm | |
| Connector Orientation A | Straight | |
| Current | 36A | |
| Connector Orientation B | Right Angle | |
| Voltage | 1000 V | |
| Contact Material | Nickel Coated Brass | |
| Standards/Approvals | EN / IEC 61010-031:2015, EN / IEC 60529, European Directive 2014/35/EU, European Directive 2011/65/EU, European Directive 2015/863/EU, European regulation n°1907 / 2006 “REACH”, European regulation 2017 / 821 “Conflict minerals” | |
| Insulation Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 80°C | |
| Safety Category Voltage | 1000V | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand Electro PJP | ||
Product Type Banana Plug | ||
Lead Length 200cm | ||
Connector Orientation A Straight | ||
Current 36A | ||
Connector Orientation B Right Angle | ||
Voltage 1000 V | ||
Contact Material Nickel Coated Brass | ||
Standards/Approvals EN / IEC 61010-031:2015, EN / IEC 60529, European Directive 2014/35/EU, European Directive 2011/65/EU, European Directive 2015/863/EU, European regulation n°1907 / 2006 “REACH”, European regulation 2017 / 821 “Conflict minerals” | ||
Insulation Material Polyvinyl Chloride | ||
Maximum Operating Temperature 80°C | ||
Safety Category Voltage 1000V | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- FR

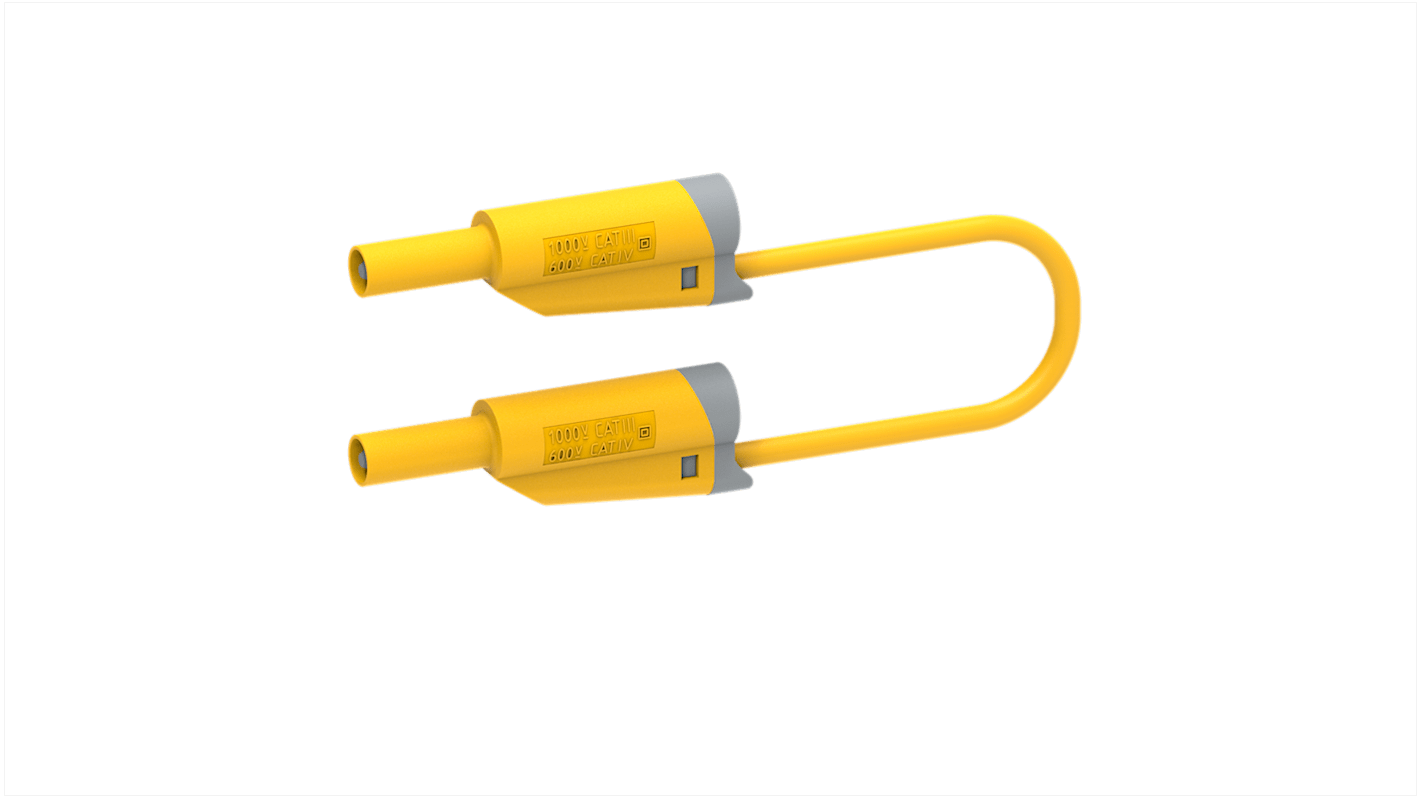

The Electro PJP Safety banana plug is used to connect banana jacks, sockets and binding posts. It can be useful for very low voltage general electronic testing, controlling and measuring.
Nickel coated Brass conductor
PP plastic material
