Hirschmann Test & Measurement Test Probe 16A, 60V dc, White, 1 m Lead Length
- RS Stock No.:
- 280-9076
- Mfr. Part No.:
- 973646107
- Brand:
- Hirschmann Test & Measurement
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 280-9076
- Mfr. Part No.:
- 973646107
- Brand:
- Hirschmann Test & Measurement
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirschmann Test & Measurement | |
| Product Type | Test Probe | |
| Lead Length | 1m | |
| Current | 16A | |
| Colour | White | |
| Connector Stackable A | Yes | |
| Test Lead Type | 4 mm Test Probes Lead | |
| Connector Orientation A | Straight | |
| Connector Shrouded A | Yes | |
| Connector Orientation B | Straight | |
| Connector Shrouded B | Yes | |
| Voltage | 60V dc | |
| Connector Stackable B | Yes | |
| Connector Gender A | Female | |
| Connector Gender B | Female | |
| Contact Material | Brass, Beryllium Copper Alloy | |
| Standards/Approvals | UL 94, RoHS, IEC 61010 | |
| Insulation Material | Polyamide | |
| Safety Category Voltage | 60V dc, 30V dc | |
| Safety Category Level | CAT II | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -15°C | |
| Select all | ||
|---|---|---|
Brand Hirschmann Test & Measurement | ||
Product Type Test Probe | ||
Lead Length 1m | ||
Current 16A | ||
Colour White | ||
Connector Stackable A Yes | ||
Test Lead Type 4 mm Test Probes Lead | ||
Connector Orientation A Straight | ||
Connector Shrouded A Yes | ||
Connector Orientation B Straight | ||
Connector Shrouded B Yes | ||
Voltage 60V dc | ||
Connector Stackable B Yes | ||
Connector Gender A Female | ||
Connector Gender B Female | ||
Contact Material Brass, Beryllium Copper Alloy | ||
Standards/Approvals UL 94, RoHS, IEC 61010 | ||
Insulation Material Polyamide | ||
Safety Category Voltage 60V dc, 30V dc | ||
Safety Category Level CAT II | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -15°C | ||
- COO (Country of Origin):
- DE

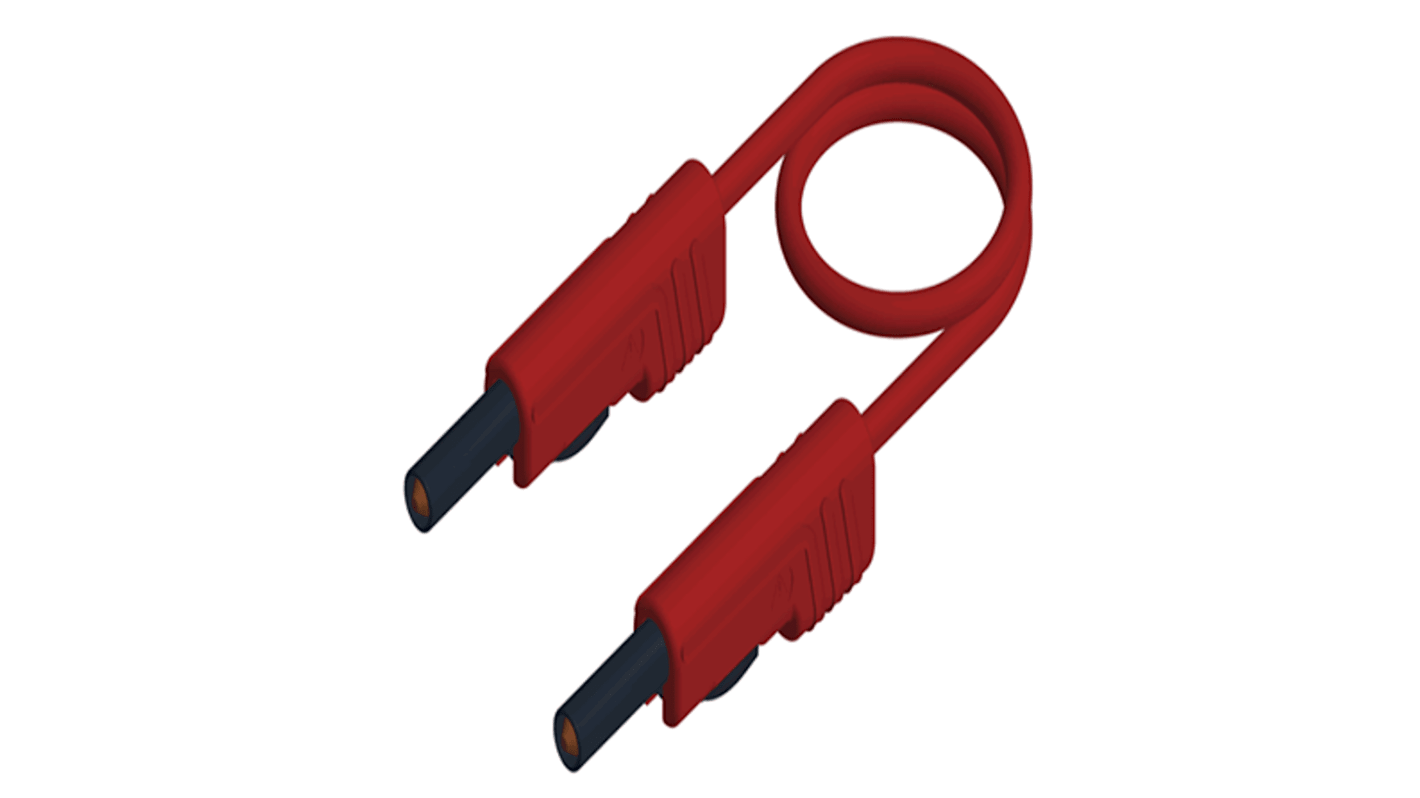

The Hirschmann Test & Measurement contact protected test lead on both sides sprung plug of diameter 4 mm, insulated by latching and sprung insulated, which is only released by pressure on the lateral locking spring, and rigid socket of diameter 4 mm to the far pluginess. It is highly flexible, double insulated stranded conductor with integrated color indicator for detecting damage to the insulation.
Contact pin brass
Contact spring copper beryllium
Housing material PA
Temperature range -15 °C to +70 °C
