Hirschmann Test & Measurement Test Probe 16A, 60V dc, Yellow, Green, 50 cm Lead Length
- RS Stock No.:
- 280-9072
- Mfr. Part No.:
- 973645188
- Brand:
- Hirschmann Test & Measurement
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 280-9072
- Mfr. Part No.:
- 973645188
- Brand:
- Hirschmann Test & Measurement
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirschmann Test & Measurement | |
| Product Type | Test Probe | |
| Lead Length | 50cm | |
| Current | 16A | |
| Connector Shrouded A | Yes | |
| Test Lead Type | 4 mm Test Probes Lead | |
| Connector Orientation A | Straight | |
| Colour | Yellow, Green | |
| Connector Stackable A | Yes | |
| Voltage | 60V dc | |
| Connector Shrouded B | Yes | |
| Connector Stackable B | Yes | |
| Connector Orientation B | Straight | |
| Connector Gender A | Female | |
| Connector Gender B | Female | |
| Standards/Approvals | IEC 61010, RoHS, UL 94 | |
| Contact Material | Brass, Beryllium Copper Alloy | |
| Maximum Operating Temperature | 70°C | |
| Safety Category Level | CAT II | |
| Safety Category Voltage | 60, 30V dc | |
| Minimum Operating Temperature | -15°C | |
| Select all | ||
|---|---|---|
Brand Hirschmann Test & Measurement | ||
Product Type Test Probe | ||
Lead Length 50cm | ||
Current 16A | ||
Connector Shrouded A Yes | ||
Test Lead Type 4 mm Test Probes Lead | ||
Connector Orientation A Straight | ||
Colour Yellow, Green | ||
Connector Stackable A Yes | ||
Voltage 60V dc | ||
Connector Shrouded B Yes | ||
Connector Stackable B Yes | ||
Connector Orientation B Straight | ||
Connector Gender A Female | ||
Connector Gender B Female | ||
Standards/Approvals IEC 61010, RoHS, UL 94 | ||
Contact Material Brass, Beryllium Copper Alloy | ||
Maximum Operating Temperature 70°C | ||
Safety Category Level CAT II | ||
Safety Category Voltage 60, 30V dc | ||
Minimum Operating Temperature -15°C | ||
- COO (Country of Origin):
- DE

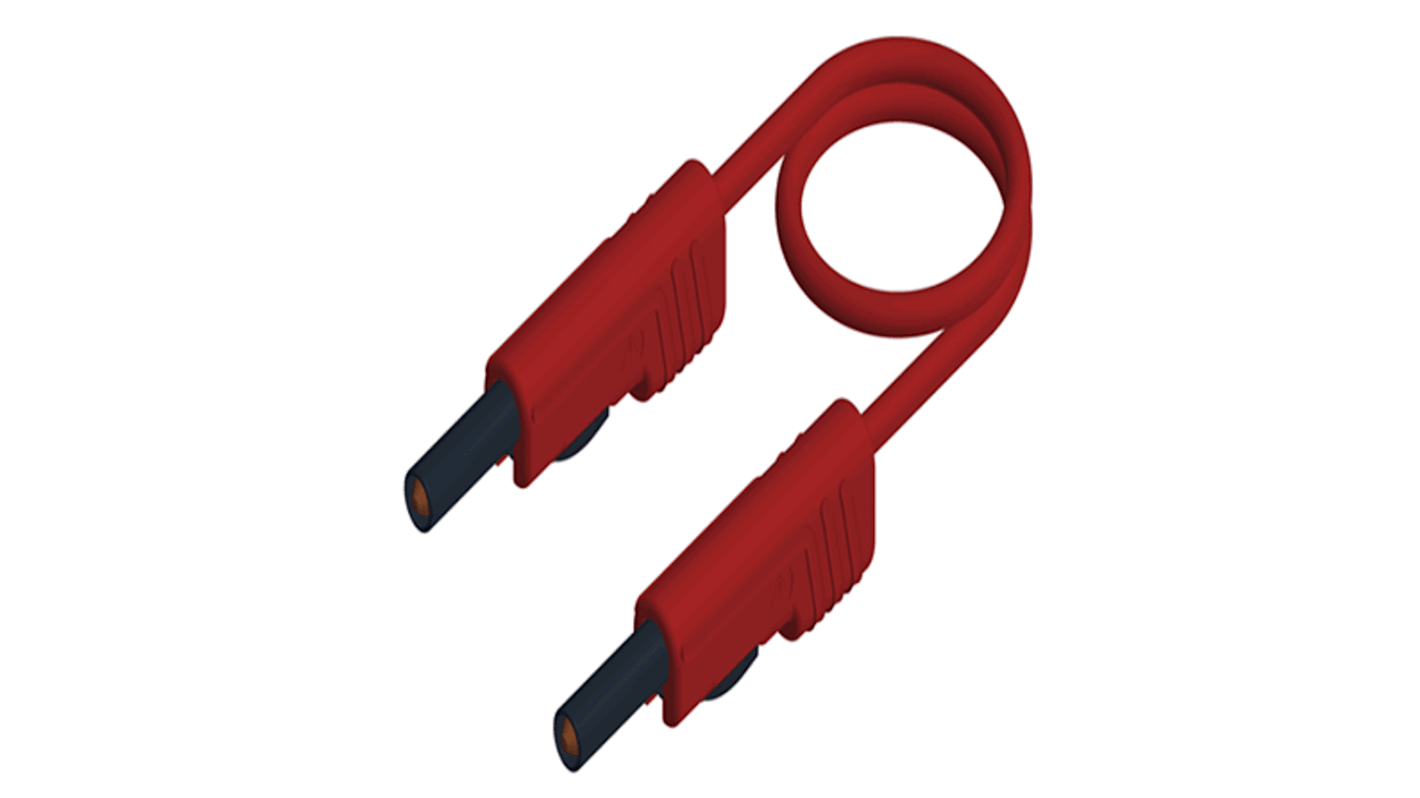

The Hirschmann Test & Measurement measuring lead is contact protected test lead on both sides sprung plug of diameter 4 mm, insulated by latching and sprung insulated, which is only released by pressure on the lateral locking spring, and rigid socket of diameter 4 mm to the far pluginess. It comes with double insulated stranded conductor with integrated color indicator for detecting damage to the insulation.
Highly flexible
Contact pin brass
Contact spring copper beryllium
Temperature rang -15 °C to +70 °C
