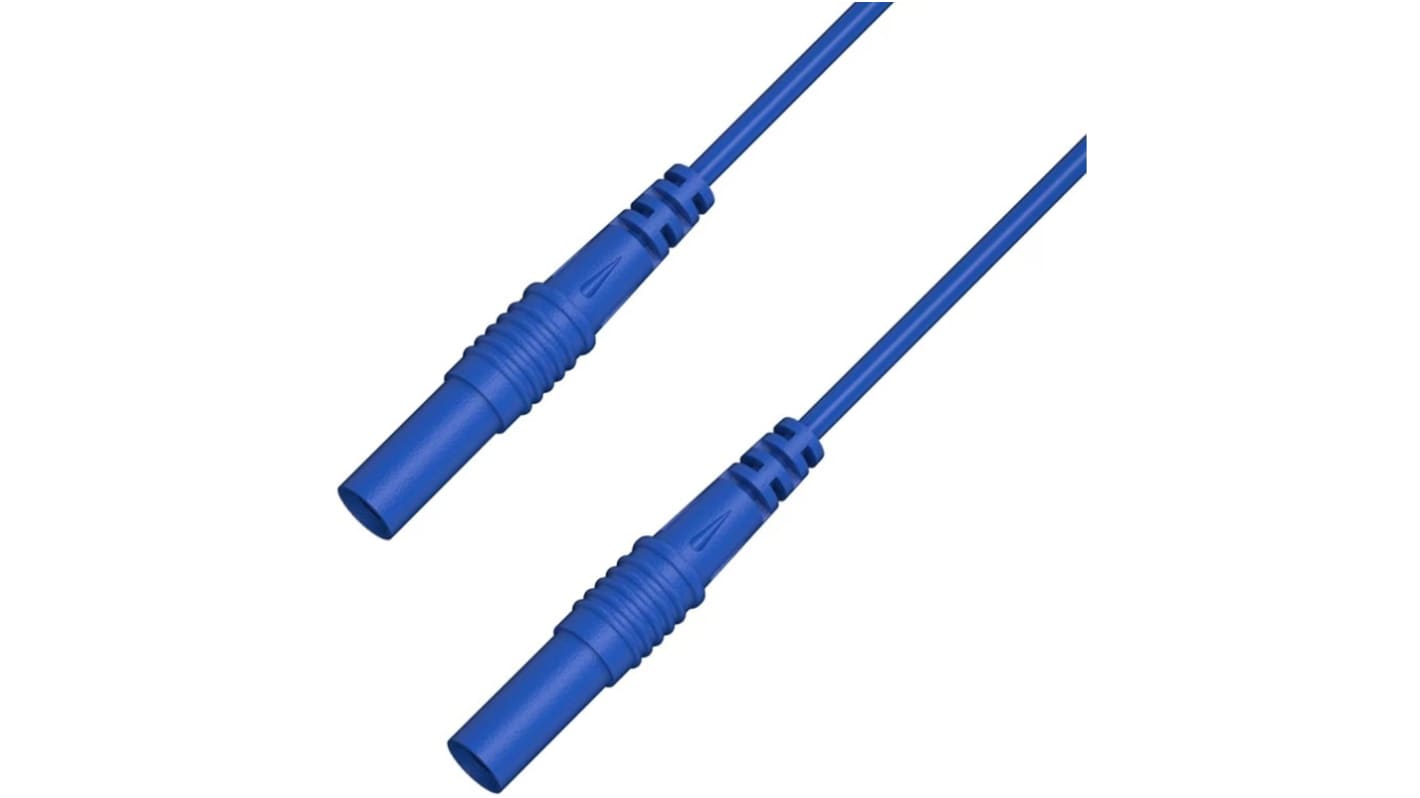

RS PRO Test Lead 2.5A, 1000V, Blue, 200 cm Lead Length

RS Stock No.:: 347-209
Brand:: RS PRO

RS PRO Test Lead 2.5A, 1000V, Blue, 200 cm Lead Length

Subtotal (1 unit)*

£4.34

(exc. VAT)

£5.21

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

300 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£4.34

*price indicative

RS Stock No.:: 347-209
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Lead Length	200cm
	Product Type	Test Lead
	Current	2.5A
	Colour	Blue
	Connector Shrouded A	Yes
	Test Lead Type	4 mm Banana Cable
	Connector Orientation A	Straight
	Connector Orientation B	Straight
	Connector Shrouded B	Yes
	Voltage	1000V
	Connector Gender A	Female
	Connector Gender B	Male
	Standards/Approvals	CE, Reach, RoHS, UKCA
	Insulation Material	Silicone
	Safety Category Voltage	1000V
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	70°C
	Safety Category Level	CAT II

	Select all
	Brand RS PRO
	Lead Length 200cm
	Product Type Test Lead
	Current 2.5A
	Colour Blue
	Connector Shrouded A Yes
	Test Lead Type 4 mm Banana Cable
	Connector Orientation A Straight
	Connector Orientation B Straight
	Connector Shrouded B Yes
	Voltage 1000V
	Connector Gender A Female
	Connector Gender B Male
	Standards/Approvals CE, Reach, RoHS, UKCA
	Insulation Material Silicone
	Safety Category Voltage 1000V
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 70°C
	Safety Category Level CAT II

COO (Country of Origin):: CN

RS PRO Test Lead, 200 cm Length

The RS PRO Test Lead is designed using PVC coaxial cable with a standard diameter of 2.8 mm. These flexible test lead sets serve as an ideal interface for multimeters equipped with 4 mm sheathed safety jacks. The plug and housing are molded directly to the cable in a seamless, one-piece design, with the wire double-crimped to ensure a durable and long-lasting connection. The multi-leaf banana spring is crafted from beryllium copper and nickel-plated, providing extended insertion cycle life and minimal contact resistance.

Features and Benefits

PVC coaxial cable: Standard diameter of 2.8 mm for reliable performance

Flexible test lead sets: Perfect interface for multimeters with 4 mm sheathed safety jacks

Integral one-piece design: Plug and housing molded directly to the cable for durability

Double-crimped wire: Ensures a long-lasting connection

Beryllium copper banana spring: Nickel-plated for extended insertion cycle life and low contact resistance

Applications

Electrical testing

Multimeter connections

Laboratory measurements

Additional Information

Lead Length: 200 cm

Safety Category: CAT III

Current Rating: 2.5 A

Voltage Rating: 50 V

Connector A: Female, Shrouded

Connector B: Male, Unshrouded
