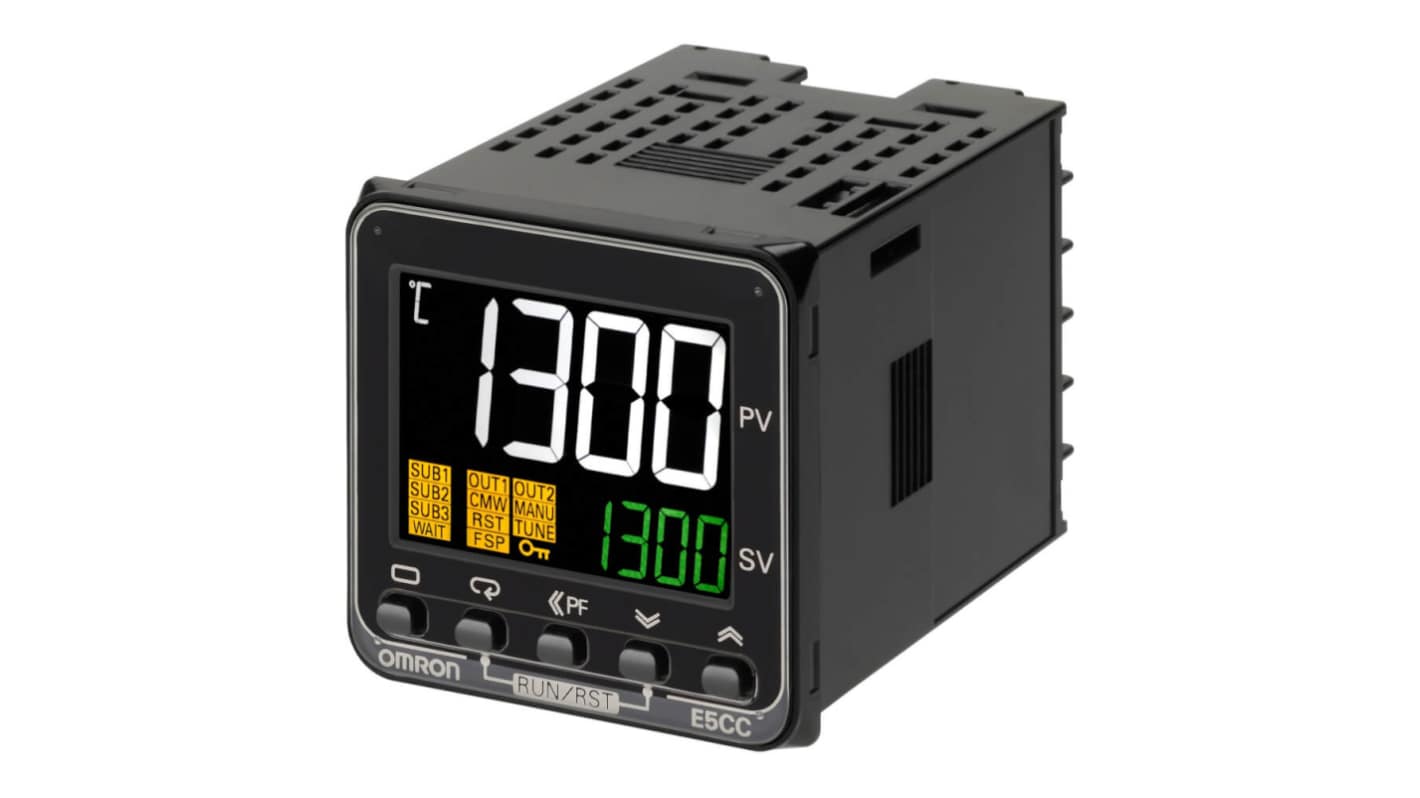

Omron E5CC Panel Mount PID Temperature Controller, 48 x 48mm 4 Input, 3 Output SSR, Solid State Relay, Logic, 24 V

RS Stock No.:: 760-5328
Mfr. Part No.:: E5CC-QX3D5M-005
Brand:: Omron

Omron E5CC Panel Mount PID Temperature Controller, 48 x 48mm 4 Input, 3 Output SSR, Solid State Relay, Logic, 24 V

Subtotal (1 unit)*

£269.70

(exc. VAT)

£323.64

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

2 unit(s) shipping from 02 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£269.70

*price indicative

RS Stock No.:: 760-5328
Mfr. Part No.:: E5CC-QX3D5M-005
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Output Type	SSR, Solid State Relay, Logic
	Supply Voltage	24 V ac/dc
	Size	48 x 48mm
	Number of Inputs	4
	Number of Outputs	3
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	+55°C
	Temperature Range	-200 → +2300 °C
	Control Type	ON/OFF, PID, 2-PID Controller
	IP Rating	IP00, IP20, IP66
	Mounting Type	Panel Mount
	Input Type	Analogue, Platinum Resistance Thermometer, PT100, Thermocouple, Universal
	Series	E5CC
	Range	0 → 10 V, 0 → 20 mA, 0 → +260 (Infrared Temperature Sensor) °C, -200 → +850 (Platinum Resistance Thermometer) °C, -200 → +2300 (Thermocouple) °C
	Termination Type	Screw terminal block
	Panel Depth	60mm
	Display Colour	White

	Select all
	Brand Omron
	Output Type SSR, Solid State Relay, Logic
	Supply Voltage 24 V ac/dc
	Size 48 x 48mm
	Number of Inputs 4
	Number of Outputs 3
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature +55°C
	Temperature Range -200 → +2300 °C
	Control Type ON/OFF, PID, 2-PID Controller
	IP Rating IP00, IP20, IP66
	Mounting Type Panel Mount
	Input Type Analogue, Platinum Resistance Thermometer, PT100, Thermocouple, Universal
	Series E5CC
	Range 0 → 10 V, 0 → 20 mA, 0 → +260 (Infrared Temperature Sensor) °C, -200 → +850 (Platinum Resistance Thermometer) °C, -200 → +2300 (Thermocouple) °C
	Termination Type Screw terminal block
	Panel Depth 60mm
	Display Colour White

Omron E5CC Series PID Temperature Controller, 48 x 48mm size, 24V AC/DC Supply Voltage - E5CC-QX3D5M-005

This PID temperature controller is a versatile unit designed for precise temperature control across a variety of applications. With dimensions of 48 x 48mm and a panel depth of 60mm, this device caters to industrial needs with an operational temperature range of -10 °C to +55 °C. It integrates a universal input capable of handling multiple sensor types, including thermocouples and PT100, making it ideal for various industrial temperature control solutions.

Features & Benefits

• Supports SSR and solid-state relay output for fast switching
• Offers PID control for precise temperature regulation
• Wide temperature range from -200 to +2300°C for diverse applications
• Capable of multi-sensor inputs, ensuring versatility in measurement
• Compact panel mount design fits easily into control panels
• Displays in white for excellent visibility in various lighting conditions

Applications

• Used for precise monitoring in industrial furnaces
• Employed in laboratory settings for exact temperature readings
• Utilised with infrared temperature sensors for non-contact
• Suitable for use in HVAC control systems for energy efficiency
• Integrates with PT100 sensors for accurate temperature measurement

How does this device ensure temperature control accuracy?

The device employs advanced PID control technology, allowing it to maintain precise temperature settings by continuously adjusting the output based on feedback from the sensors.

What types of sensors can be connected for temperature readings?

It accommodates various sensor types, including thermocouples, PT100 sensors, and infrared sensors, enabling flexibility for different measurement requirements in complex systems.

Is it easy to install in existing control panels?

Yes, the compact design and panel mount capability allow for simple integration into most control panels without requiring extensive modifications.

What is the significance of the device’s temperature range?

The extensive temperature range of -200 to +2300°C ensures it is suitable for a wide array of applications, from low-temperature processes in laboratories to high-temperature environments in industrial settings.

Can this controller assist in automation tasks across industries?

Indeed, its versatility and multiple input types make it an ideal candidate for automation tasks in sectors such as manufacturing, HVAC, and laboratory research, enhancing operational efficiency.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges
