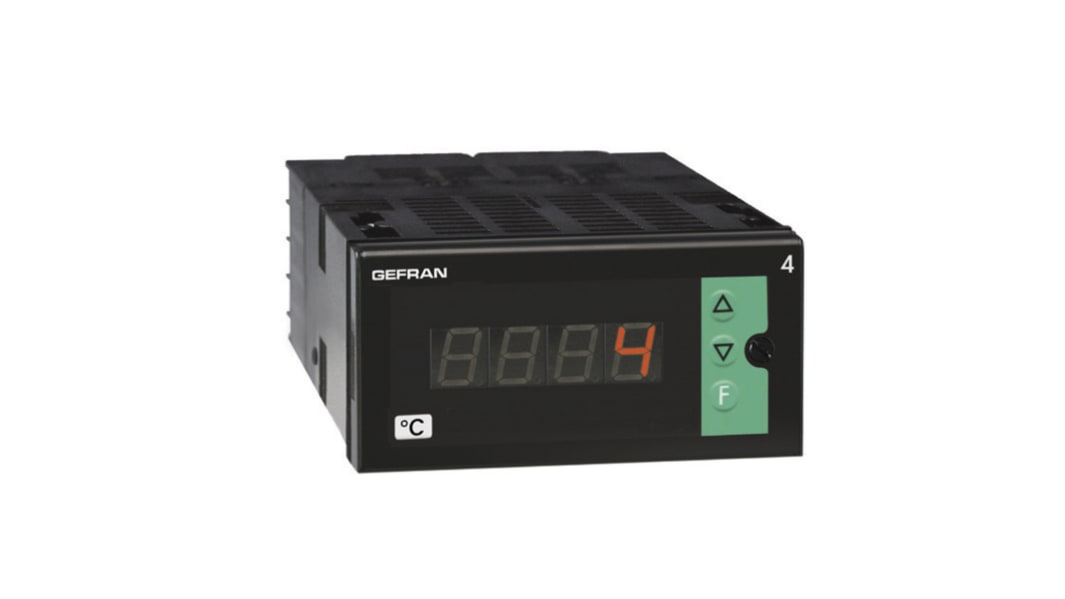

Gefran 4T 96 Front, Panel Temperature Indicator Analogue 240V ac/dc Temperature Control
- RS Stock No.:
- 335-4653
- Mfr. Part No.:
- 4T-96-4-00-0
- Brand:
- Gefran
Bulk discount available
Subtotal (1 unit)*
£239.73
(exc. VAT)
£287.68
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £239.73 |
| 5 - 9 | £227.72 |
| 10 - 24 | £215.76 |
| 25 - 49 | £203.76 |
| 50 + | £191.77 |
*price indicative
- RS Stock No.:
- 335-4653
- Mfr. Part No.:
- 4T-96-4-00-0
- Brand:
- Gefran
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Gefran | |
| Output Type | Analogue | |
| Product Type | Temperature Indicator | |
| Maximum Current | 50mA | |
| Maximum Operating Temperature | 50°C | |
| Minimum Operating Temperature | 0°C | |
| Control Type | Temperature Control | |
| Maximum Supply Voltage | 240V ac/dc | |
| Digital Comms | TTL, RS485 | |
| Maximum Voltage | 240V | |
| Display Type | 3 Digit, 4 Digit Red LED, 4 Digit | |
| IP Rating | IP65 | |
| Standards/Approvals | EN 61000-6-2, EN 61000-6-3, EN 61010-1, CE | |
| Width | 48mm | |
| Length | 96mm | |
| Series | 4T 96 | |
| Mount Type | Front, Panel | |
| Input Type | 0 to 60 Mv, 0 to 10 V, 1 to 5 V, 2 to 10 V, 0 to 5 V, 4 to 20 mA, 0 to 20 mA, PTC, 0 to 1 V, Thermocouple, RTD | |
| Panel Depth | 105mm | |
| Select all | ||
|---|---|---|
Brand Gefran | ||
Output Type Analogue | ||
Product Type Temperature Indicator | ||
Maximum Current 50mA | ||
Maximum Operating Temperature 50°C | ||
Minimum Operating Temperature 0°C | ||
Control Type Temperature Control | ||
Maximum Supply Voltage 240V ac/dc | ||
Digital Comms TTL, RS485 | ||
Maximum Voltage 240V | ||
Display Type 3 Digit, 4 Digit Red LED, 4 Digit | ||
IP Rating IP65 | ||
Standards/Approvals EN 61000-6-2, EN 61000-6-3, EN 61010-1, CE | ||
Width 48mm | ||
Length 96mm | ||
Series 4T 96 | ||
Mount Type Front, Panel | ||
Input Type 0 to 60 Mv, 0 to 10 V, 1 to 5 V, 2 to 10 V, 0 to 5 V, 4 to 20 mA, 0 to 20 mA, PTC, 0 to 1 V, Thermocouple, RTD | ||
Panel Depth 105mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Series 4T configurable indicators
Universal process indicators that are fully configurable with linear input signal range, thermoresistance, thermocouple or thermistor.
Indication of the size measured by an adhesive label on the front face (for most common physical units).
Indication of over or under-scale measurement for linear inputs.
Identification of temperature probe cut-out or short circuit.
