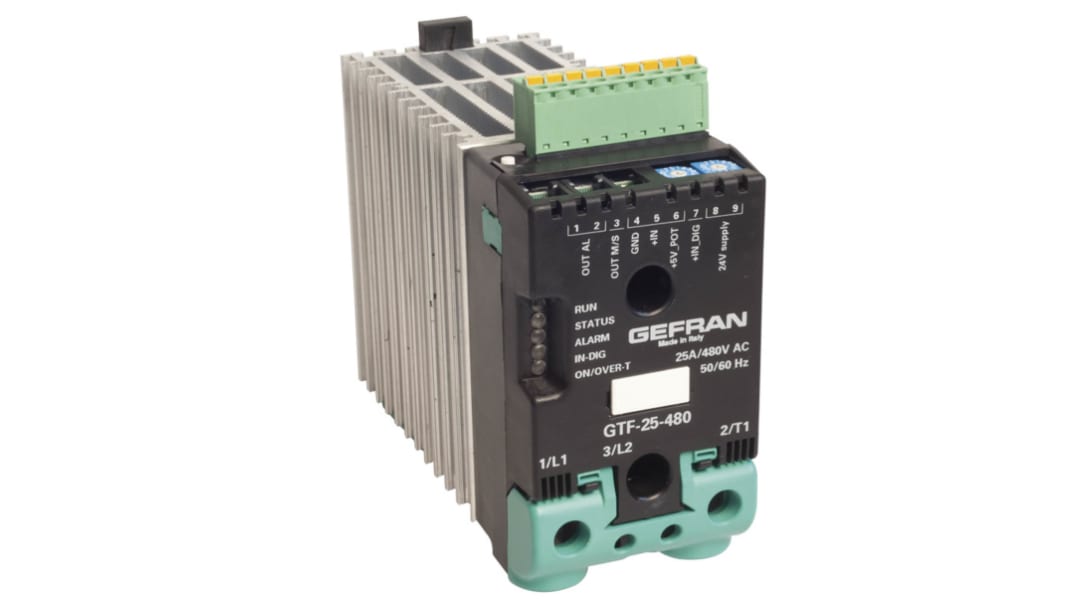

Gefran GTF Panel, DIN Rail Power Controller Solid State Relay 760V 3 Phase
- RS Stock No.:
- 183-3578
- Mfr. Part No.:
- GTF-25-480-0-0-0-0 1-B-M
- Brand:
- Gefran
Subtotal (1 unit)*
£256.22
(exc. VAT)
£307.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 16 March 2026
- Plus 5 unit(s) shipping from 17 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £256.22 |
*price indicative
- RS Stock No.:
- 183-3578
- Mfr. Part No.:
- GTF-25-480-0-0-0-0 1-B-M
- Brand:
- Gefran
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Gefran | |
| Output Type | Solid State Relay | |
| Product Type | Power Controller | |
| Maximum Current | 250A | |
| Maximum Operating Temperature | 50°C | |
| Minimum Operating Temperature | 0°C | |
| Control Type | 3 Phase | |
| Maximum Supply Voltage | 760V | |
| Auxiliary Power Supply | 24 V | |
| Digital Comms | Modbus RTU, RS485 | |
| Maximum Voltage | 760V | |
| Display Type | LED | |
| Width | 143 mm | |
| Standards/Approvals | CE, UL, TÜV, UL508, CSA, EN 60947-4-3 | |
| Length | 287mm | |
| Mount Type | Panel, DIN Rail | |
| Input Type | Potentiometer 1 to 10 KΩ, 0 to 20 mA, Analogue (0 to 10 V), Digital: PWM 5 to 30 V, 0 to 5 V | |
| Series | GTF | |
| Panel Depth | 170.4mm | |
| Select all | ||
|---|---|---|
Brand Gefran | ||
Output Type Solid State Relay | ||
Product Type Power Controller | ||
Maximum Current 250A | ||
Maximum Operating Temperature 50°C | ||
Minimum Operating Temperature 0°C | ||
Control Type 3 Phase | ||
Maximum Supply Voltage 760V | ||
Auxiliary Power Supply 24 V | ||
Digital Comms Modbus RTU, RS485 | ||
Maximum Voltage 760V | ||
Display Type LED | ||
Width 143 mm | ||
Standards/Approvals CE, UL, TÜV, UL508, CSA, EN 60947-4-3 | ||
Length 287mm | ||
Mount Type Panel, DIN Rail | ||
Input Type Potentiometer 1 to 10 KΩ, 0 to 20 mA, Analogue (0 to 10 V), Digital: PWM 5 to 30 V, 0 to 5 V | ||
Series GTF | ||
Panel Depth 170.4mm | ||
- COO (Country of Origin):
- IT
Current levels from 40A to 250A
Rated voltage 480Vac to 600Vac
Trigger configurable in “Zero crossing” (Fixed Cycle, Burst Firing, Half single Cycle) or “Phase angle”
Analog control input, configurable in:
Volt, mA, potentiometer (digital in PWM)
Incorporated Resettable Electronic fuse (optional)
Total and partial load interrupt alarm (HB) (optional)
Communication Modbus RTU, RS 485 2 wires (optional)
Current limit (optional)
V, I, P feedback (optional)
Connections for monophase and triphase applications (just in zero crossing” mode)
Configuration from PC (by USB – TTL cable)
