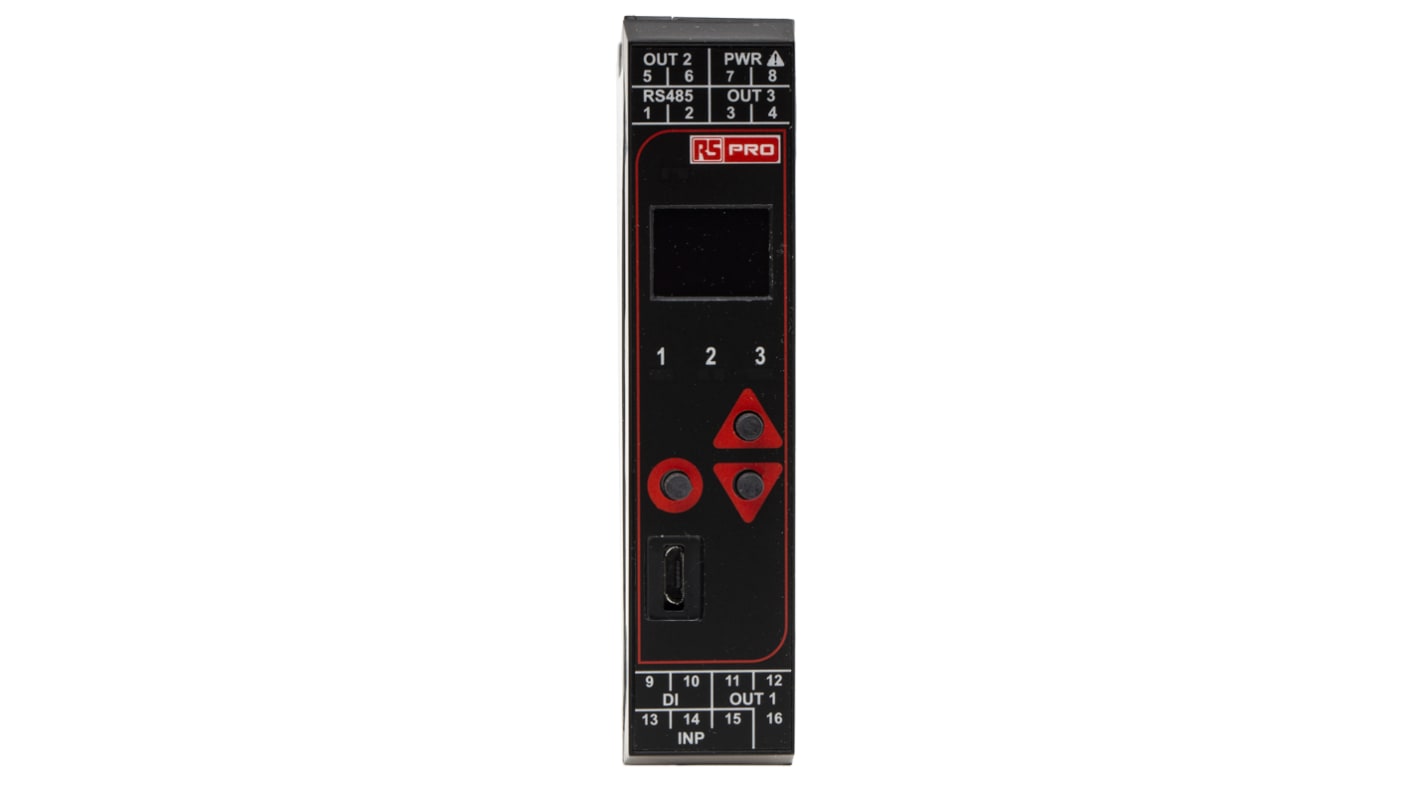

RS PRO MVR DIN Rail PID Temperature Controller 1 Input, 3 Output Relay 24V ac PID Controller

View all Temperature Controllers

Subtotal (1 unit)*

£279.66

(exc. VAT)

£335.59

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 87 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£279.66

*price indicative

RS Stock No.:
144-8681
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Output Type

Relay

Product Type

PID Temperature Controller

Number of Inputs

1

Number of Outputs

3

Maximum Current

2A

Minimum Operating Temperature

0°C

Maximum Operating Temperature

55°C

Control Type

PID Controller

Terminal Type

Screw

Maximum Supply Voltage

24V ac

Digital Comms

RS485 Modbus RTU

Maximum Voltage

250V

Display Type

OLED

IP Rating

IP20

Standards/Approvals

UL61010-1, EN61326, EN61010-1, CE

Length

110mm

Width

22.5mm

Mount Type

DIN Rail

Series

MVR

Panel Depth

99mm

COO (Country of Origin):
GB

RS PRO DIN Rail PID Temperature Controller with Universal Input, 100-240V


A PID temperature controller with an easy to read OLED display featuring universal input and 3 outputs. The temperature controller is simple to setup and install with fast configuration and a quick start menu. ;Designed to be mounted to a standard 35mm DIN rail and comes with IP20 protection. The PID controller includes high/low and deviation alarms and accepts thermocouple input of J, K, C, R, S, T, B L, N with SSR, Relay and Changeover Relay output.;An accurate and versatile PID temperature controller providing comprehensive temperature control

Features and Benefits


Clear OLED display with 3 button operation

Text/icon matrix display

3 Status LEDs

Quick setup menu with main configuration parameters

Thermocouple, PT100 or linear DC sensor input

Universal input

3 outputs; relay, changeover relay and SSR

Isolated digital Input

Fast configuration

22.5 x 110mm module size

DIN Rail mounting
