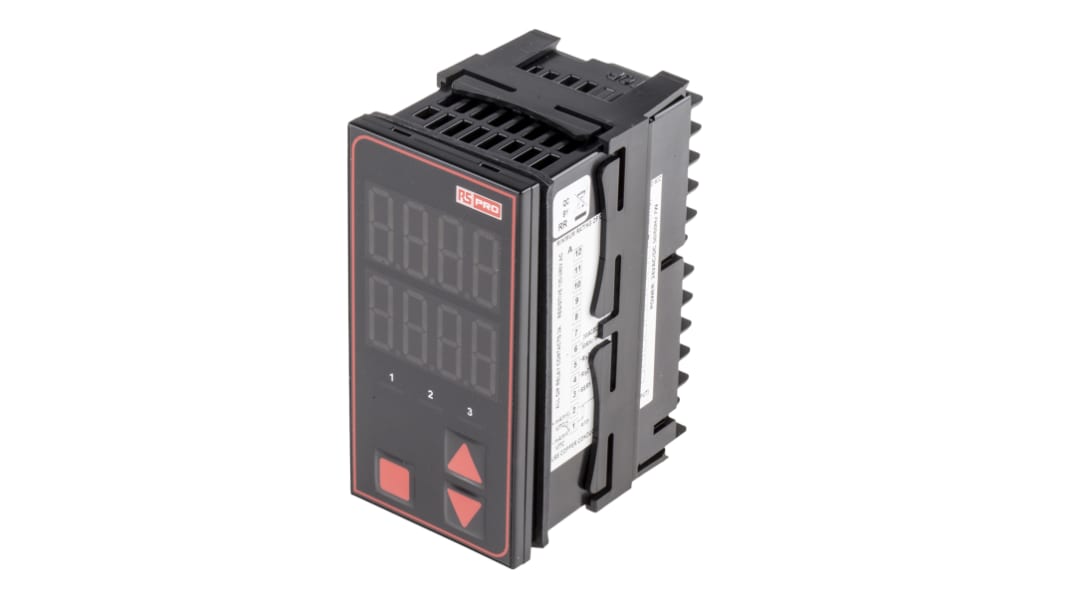

RS PRO Panel Mount PID Temperature Controller, 96 x 48mm, 3 Output Relay, SSR, 24 V ac/dc Supply Voltage
- RS Stock No.:
- 124-1061
- Brand:
- RS PRO
Subtotal (1 unit)*
£224.27
(exc. VAT)
£269.12
(inc. VAT)
FREE delivery for orders over £50.00
- 1 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 + | £224.27 |
*price indicative
- RS Stock No.:
- 124-1061
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Output Type | Relay, SSR | |
| Supply Voltage | 24 V ac/dc | |
| Size | 96 x 48mm | |
| Number of Outputs | 3 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +55°C | |
| Temperature Range | +100 → +1824 (Type B Thermocouple) °C, 0 → +1399 (Type N Thermocouple) °C, 0 → +1762 (Type S Thermocouple) °C, 0 → +1795 (Type R Thermocouple) °C, 0 → +2320 (Type C Thermocouple) °C, 0 → +762 (Type L Thermocouple) °C, -199 → +800 (PT100) °C, -200 → +1200 (Type J Thermocouple) °C, -240 → +1373 (Type K Thermocouple) °C | |
| Display Type | Dual 4 Digit LED | |
| IP Rating | IP20, IP65 | |
| Additional Functionality | PID Function Only | |
| Mounting Type | Panel Mount | |
| Input Type | Analogue, B Type Thermocouple, C Type Thermocouple, J Type Thermocouple, K Type Thermocouple, L Type Thermocouple, N Type Thermocouple, PT100, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple | |
| Panel Depth | 67mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Output Type Relay, SSR | ||
Supply Voltage 24 V ac/dc | ||
Size 96 x 48mm | ||
Number of Outputs 3 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +55°C | ||
Temperature Range +100 → +1824 (Type B Thermocouple) °C, 0 → +1399 (Type N Thermocouple) °C, 0 → +1762 (Type S Thermocouple) °C, 0 → +1795 (Type R Thermocouple) °C, 0 → +2320 (Type C Thermocouple) °C, 0 → +762 (Type L Thermocouple) °C, -199 → +800 (PT100) °C, -200 → +1200 (Type J Thermocouple) °C, -240 → +1373 (Type K Thermocouple) °C | ||
Display Type Dual 4 Digit LED | ||
IP Rating IP20, IP65 | ||
Additional Functionality PID Function Only | ||
Mounting Type Panel Mount | ||
Input Type Analogue, B Type Thermocouple, C Type Thermocouple, J Type Thermocouple, K Type Thermocouple, L Type Thermocouple, N Type Thermocouple, PT100, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple | ||
Panel Depth 67mm | ||
- COO (Country of Origin):
- GB
RS Pro PID Temperature Controller 1/8 DIN
Features and Benefits
• Large clear LED display
• 3 Button operation
• Universal input
• Up to 3 outputs with a choice of either relay or SSR
• 2 Process alarms, high/low, deviation or band
• Thermocouple, PT100 or linear DC sensor input
• Selectable indictor mode
• Quick setup menu with top 10 configuration parameters
• Easy installation
• Front panel configuration
• Suitable for applications where primary temperature control functions, such as heat only or heat/cool are needed
