RS PRO 22μF Electrolytic Tantalum Electrolytic Capacitor 16V dc
- RS Stock No.:
- 181-4562
- Brand:
- RS PRO
Available to back order for despatch 04/09/2024
Added
Price Each (In a Bag of 500)
£0.266
(exc. VAT)
£0.319
(inc. VAT)
| Units | Per unit | Per Bag* |
| 500 - 1000 | £0.266 | £133.00 |
| 1500 + | £0.246 | £123.00 |
| *price indicative | ||
- RS Stock No.:
- 181-4562
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

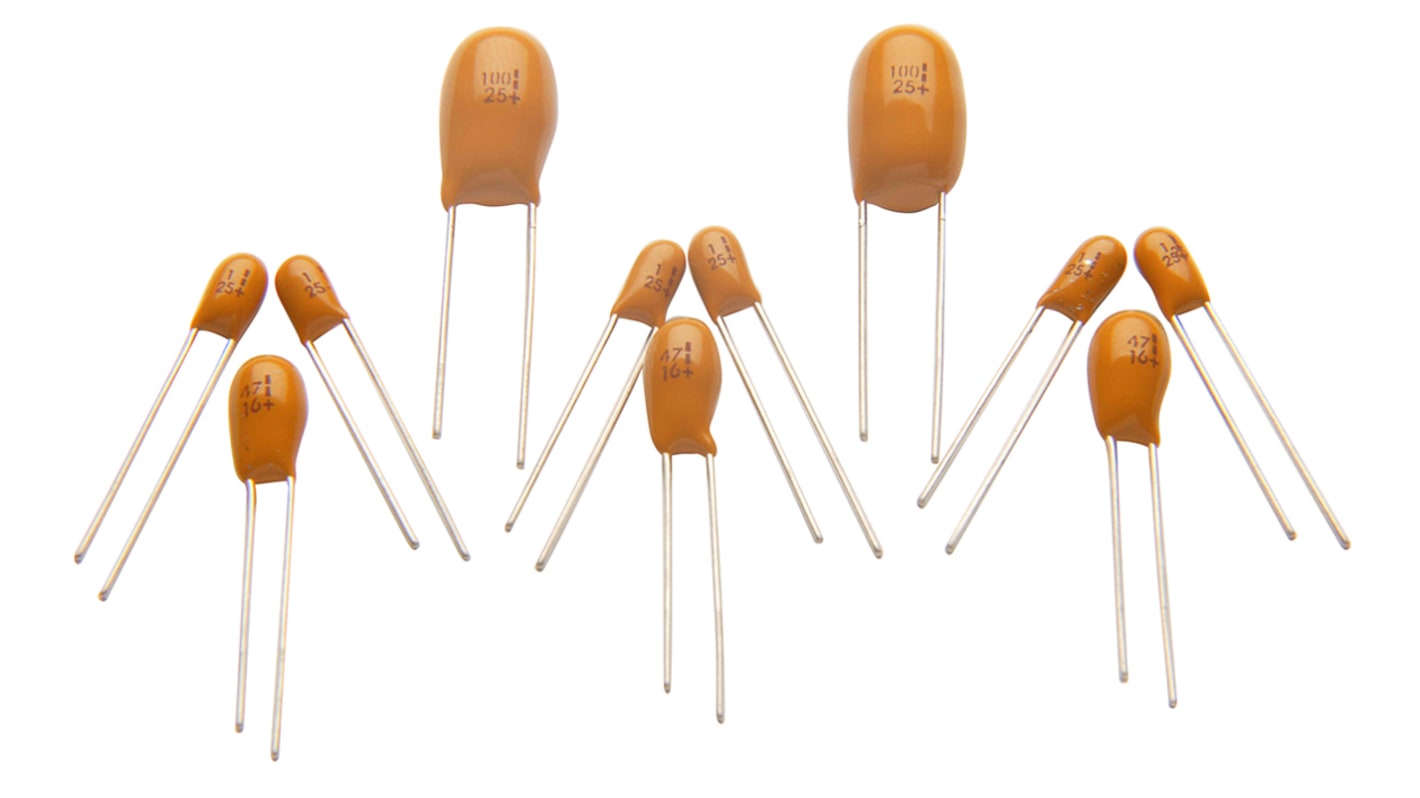

RS PRO Tantalum Capacitor
The RS PRO CB series 22μF epoxy-coated solid electrolytic tantalum capacitor has a voltage rating of 16VDC and a leakage current of 500nA. It has dimensions of 5.5mm x 5.5mm x 9.5mm x 0.5mm (L x D x H x lead diameter).
Features and Benefits
• Tolerance: ±20%
• Operating temperature ranges between -55°C and 125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.08%
• Through hole mount
• Package/Case: C
• Operating temperature ranges between -55°C and 125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.08%
• Through hole mount
• Package/Case: C
Applications
• Electronics Industry
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
• BS EN 61340-5-1: 2007
Specifications
Attribute | Value |
|---|---|
| Technology | Electrolytic |
| Capacitance | 22µF |
| Voltage | 16V dc |
| Mounting Type | Through Hole |
| Package/Case | C |
| Lead Pitch | 2.5mm |
| Tolerance | ±20% |
| Length | 5.5mm |
| Depth | 5.5mm |
| Height | 9.5mm |
| Dimensions | 5.5 x 5.5 x 9.5mm |
| Maximum Operating Temperature | +125°C |
| Electrolyte Type | Solid |
| Polarised | Positive |
| Tolerance Minus | -20% |
| Dissipation Factor | <lteq/>0.08% |
| Minimum Operating Temperature | -55°C |
| Tolerance Plus | +20% |
| Leakage Current | 500 nA |
| Lead Diameter | 0.5mm |
| Dielectric Material Family | Tantalum |
