RS PRO 6.8μF Electrolytic Tantalum Electrolytic Capacitor 16V dc
- RS Stock No.:
- 181-4559
- Brand:
- RS PRO
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 181-4559
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Technology | Electrolytic | |
| Capacitance | 6.8µF | |
| Voltage | 16V dc | |
| Mounting Type | Through Hole | |
| Package/Case | B | |
| Lead Pitch | 2.5mm | |
| Tolerance | ±20% | |
| Length | 5mm | |
| Depth | 5mm | |
| Height | 8mm | |
| Dimensions | 5 x 5 x 8mm | |
| Maximum Operating Temperature | +125°C | |
| Electrolyte Type | Solid | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | ≤0.06% | |
| Polarised | Positive | |
| Dielectric Material Family | Tantalum | |
| Leakage Current | 500 nA | |
| Lead Diameter | 0.5mm | |
| Tolerance Minus | -20% | |
| Tolerance Plus | +20% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Technology Electrolytic | ||
Capacitance 6.8µF | ||
Voltage 16V dc | ||
Mounting Type Through Hole | ||
Package/Case B | ||
Lead Pitch 2.5mm | ||
Tolerance ±20% | ||
Length 5mm | ||
Depth 5mm | ||
Height 8mm | ||
Dimensions 5 x 5 x 8mm | ||
Maximum Operating Temperature +125°C | ||
Electrolyte Type Solid | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor ≤0.06% | ||
Polarised Positive | ||
Dielectric Material Family Tantalum | ||
Leakage Current 500 nA | ||
Lead Diameter 0.5mm | ||
Tolerance Minus -20% | ||
Tolerance Plus +20% | ||
- COO (Country of Origin):
- CN

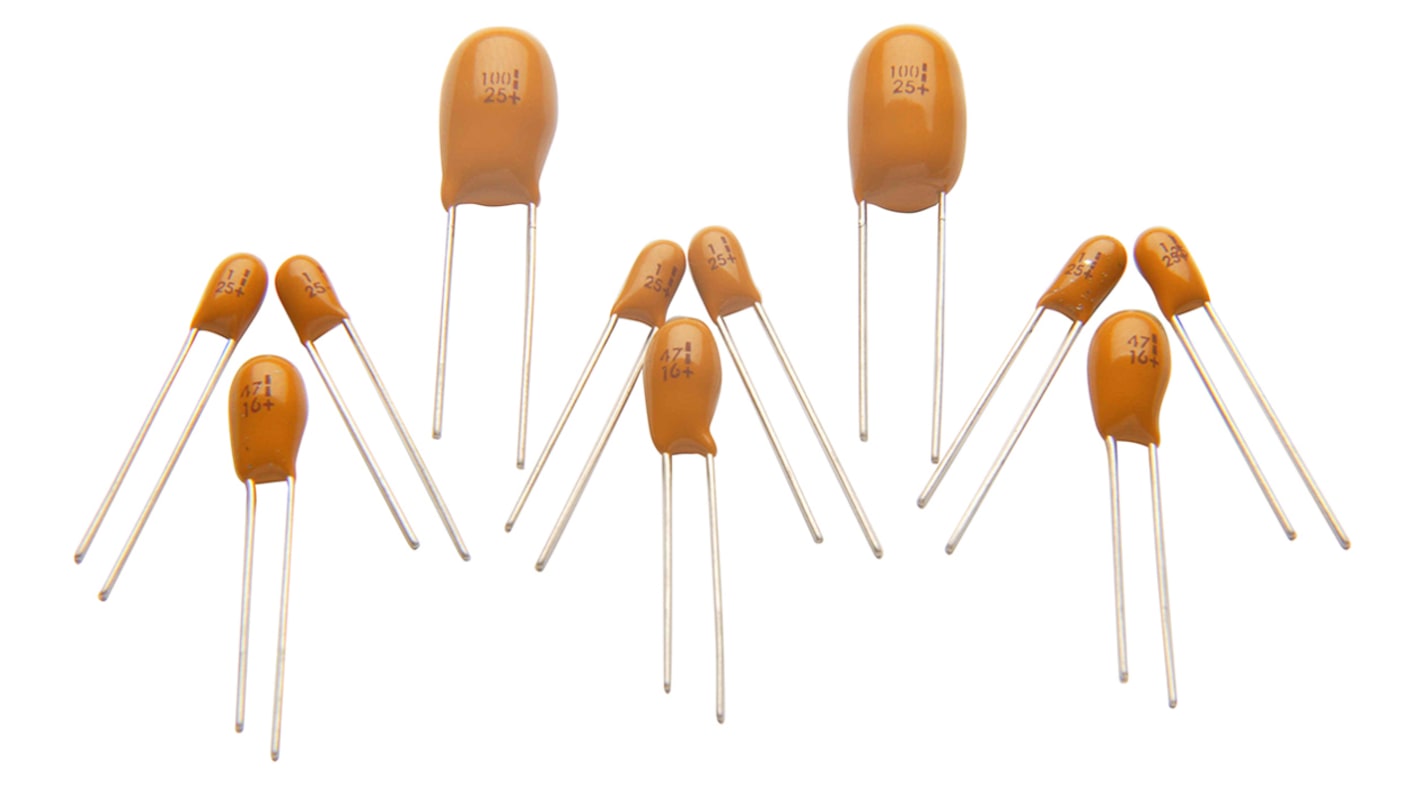

RS Pros is increasing its range of Passive components with the introduction of a range of Leaded Radial Epoxy Coated Solid Electrolytic Tantalum Capacitors.
1. Available in a range from 0.1uF to 220uF
2. In Voltage range of 6.3V, 10V, 16V, 25V, 35V, 50V
3. Tolerance 20%
4. Temperature Range -55’C to +125’C
5. Lifetest 1000hr
6. Rohs Compliant
1. Available in a range from 0.1uF to 220uF
2. In Voltage range of 6.3V, 10V, 16V, 25V, 35V, 50V
3. Tolerance 20%
4. Temperature Range -55’C to +125’C
5. Lifetest 1000hr
6. Rohs Compliant
