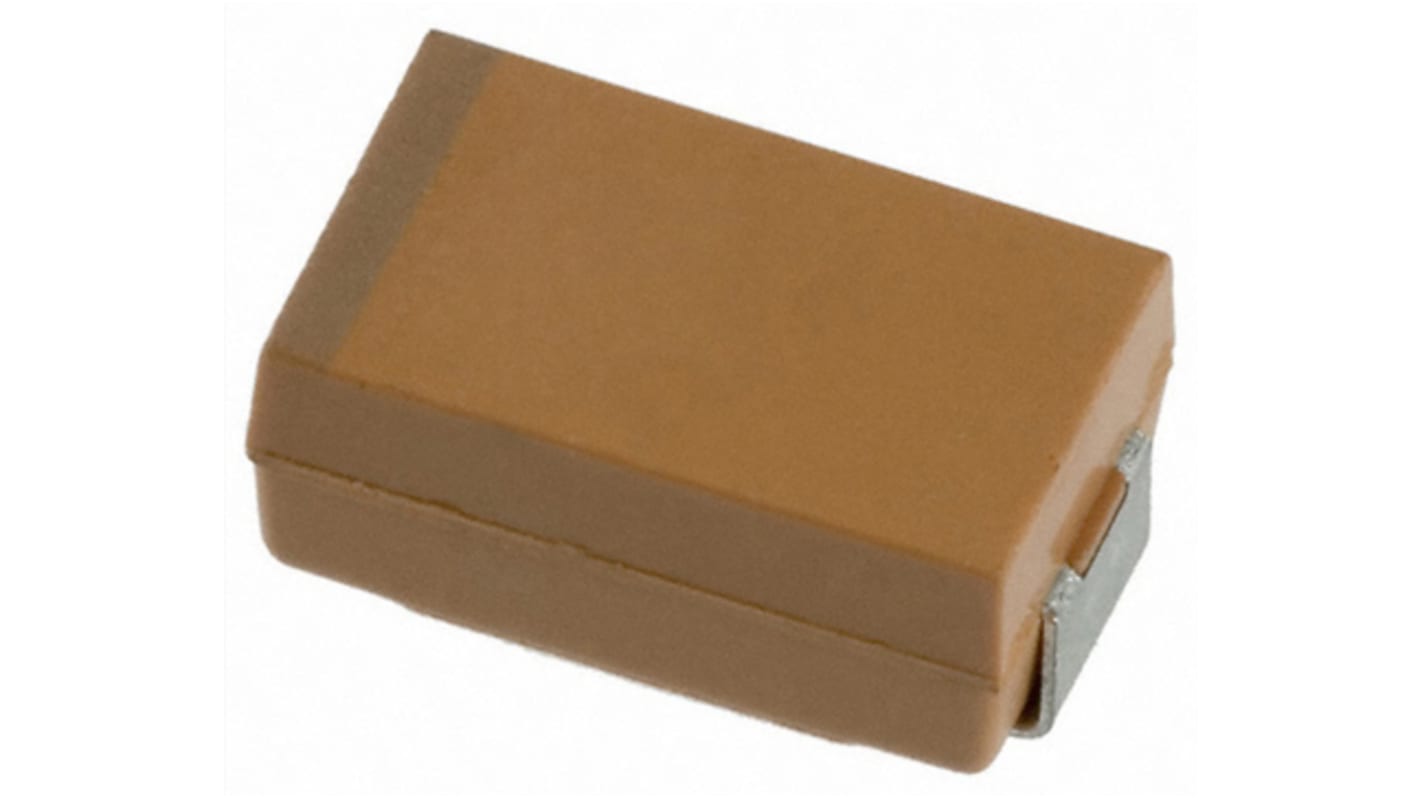

KYOCERA AVX 220μF Electrolytic Tantalum Capacitor 10V dc, TPS Series
- RS Stock No.:
- 135-4351
- Mfr. Part No.:
- TPSD227K010R0150
- Brand:
- KYOCERA AVX
Bulk discount available
Subtotal (1 reel of 500 units)*
£183.00
(exc. VAT)
£219.50
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
|---|---|---|
| 500 - 2000 | £0.366 | £183.00 |
| 2500 - 4500 | £0.336 | £168.00 |
| 5000 + | £0.315 | £157.50 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 500)
£0.867
(exc. VAT)
£1.04
(inc. VAT)
- RS Stock No.:
- 135-4351
- Mfr. Part No.:
- TPSD227K010R0150
- Brand:
- KYOCERA AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KYOCERA AVX | |
| Technology | Electrolytic | |
| Capacitance | 220µF | |
| Voltage | 10V dc | |
| Mounting Type | Surface Mount | |
| Package/Case | 2917 | |
| Equivalent Series Resistance | 150mΩ | |
| Lead Pitch | 4.4mm | |
| Length | 7.3mm | |
| Height | 2.9mm | |
| Dimensions | 7.3 x 4.3 x 2.9mm | |
| Series | TPS | |
| Electrolyte Type | Solid | |
| Maximum Operating Temperature | +125°C | |
| Dissipation Factor | 8% | |
| Terminal Type | SMT | |
| Surge Voltage | 13 V dc @ ≤+85 °C, 8 V dc @ ≤+125 °C | |
| Dielectric Material Family | Tantalum | |
| Minimum Operating Temperature | -55°C | |
| Leakage Current | 22 μA | |
| Polarised | Polar | |
Select all | ||
|---|---|---|
Brand KYOCERA AVX | ||
Technology Electrolytic | ||
Capacitance 220µF | ||
Voltage 10V dc | ||
Mounting Type Surface Mount | ||
Package/Case 2917 | ||
Equivalent Series Resistance 150mΩ | ||
Lead Pitch 4.4mm | ||
Length 7.3mm | ||
Height 2.9mm | ||
Dimensions 7.3 x 4.3 x 2.9mm | ||
Series TPS | ||
Electrolyte Type Solid | ||
Maximum Operating Temperature +125°C | ||
Dissipation Factor 8% | ||
Terminal Type SMT | ||
Surge Voltage 13 V dc @ ≤+85 °C, 8 V dc @ ≤+125 °C | ||
Dielectric Material Family Tantalum | ||
Minimum Operating Temperature -55°C | ||
Leakage Current 22 μA | ||
Polarised Polar | ||
- COO (Country of Origin):
- US
TPS Series 10 to 16Vdc
The TPS series of low ESR SMD capacitors from AVX are designed for use mainly in power supply applications. The TPS series of capacitor is available with 14 different case size options.
Low ESR (equivalent series resistance)
High ripple current capability
Low power and heat dissipation
High ripple current capability
Low power and heat dissipation
