Bulk discount available
Subtotal (1 unit)*
£9.93
(exc. VAT)
£11.92
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 3 unit(s) shipping from 06 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £9.93 |
| 25 - 99 | £8.18 |
| 100 - 249 | £6.87 |
| 250 - 499 | £5.97 |
| 500 + | £5.53 |
*price indicative
- RS Stock No.:
- 703-8737
- Mfr. Part No.:
- 125NHG02B
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Centred Tag Fuse | |
| Fuse Type | NH | |
| Current Rating | 125A | |
| Fuse Size | NH2 | |
| Voltage | 500V ac | |
| Standards/Approvals | IEC 60269, DIN 43620, VDE 0636 | |
| Tag Width | 6mm | |
| High Rupture Capacity | Yes | |
| Fuse Characteristics | Dual Indication | |
| Tag Type | Blade | |
| Overall Length | 150mm | |
| Length | 75mm | |
| Width | 52mm | |
| Height | 53mm | |
| Series | Bussman | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Centred Tag Fuse | ||
Fuse Type NH | ||
Current Rating 125A | ||
Fuse Size NH2 | ||
Voltage 500V ac | ||
Standards/Approvals IEC 60269, DIN 43620, VDE 0636 | ||
Tag Width 6mm | ||
High Rupture Capacity Yes | ||
Fuse Characteristics Dual Indication | ||
Tag Type Blade | ||
Overall Length 150mm | ||
Length 75mm | ||
Width 52mm | ||
Height 53mm | ||
Series Bussman | ||

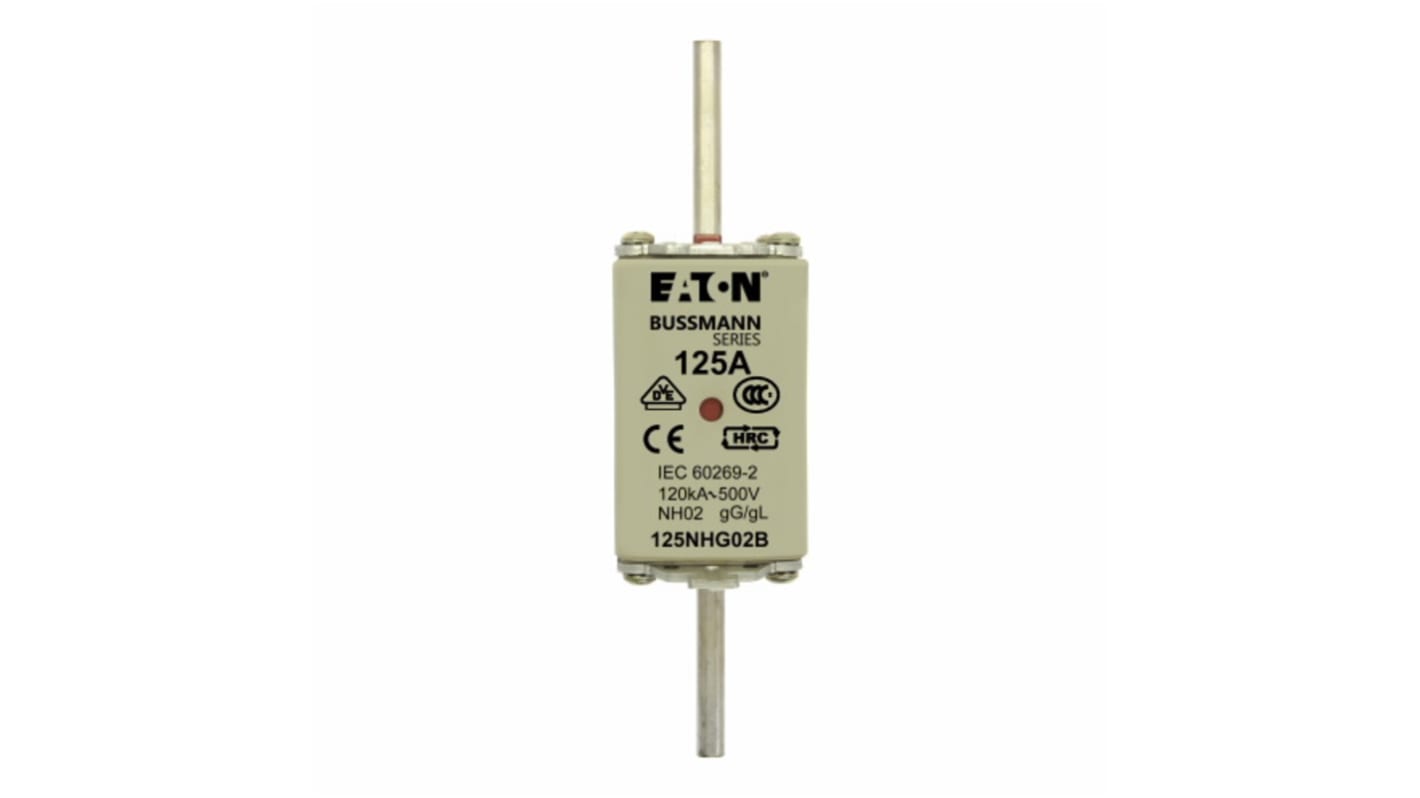

Eaton Centred Tag Fuse, 120kA Breaking Capacity, 500V AC Voltage Rating 125NHG02B
Use this centred tag fuse from Eaton to protect components on your distribution boards from short circuits and overload faults. The steatite housing is tough and non-flammable, so can be safely used in electrical installations. As this material also has a high thermal tolerance, it's suitable for very hot environments. A high breaking capacity of 120kA means this fuse reliably protects your equipment from short circuits in volatile areas without causing an arc or fire. You'll find it useful for protecting your cables in electricity distribution systems.
Features & Benefits
• Compact dimensions of 75 (L) x 52 (W) x 53mm (H) for installation in setups with limited space
• Low power loss of 12.5W for energy efficiency
• 100% recyclable parts make it sustainable
What's the difference between a fuse and a circuit breaker?
The major difference between a fuse and a circuit breaker is that a fuse can only be used once, while a circuit breaker can be reset and reused. Fuses also generally work faster than circuit breakers.
Note
Eaton formerly known as Bussmann
