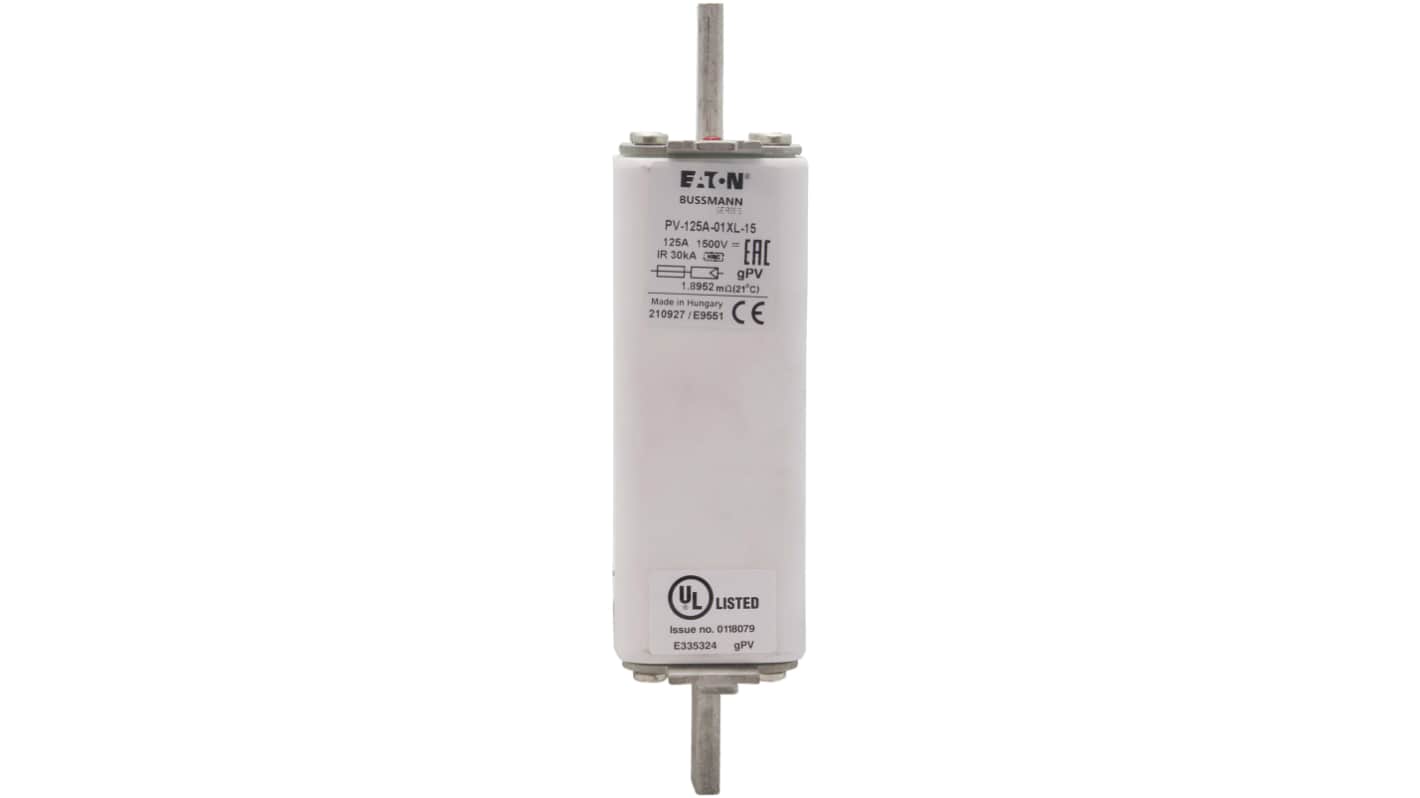

Eaton 125A Tag Fuse 01XL 1000V, 189 mm
- RS Stock No.:
- 282-6495
- Mfr. Part No.:
- PV-125A-01XL
- Brand:
- Eaton
Subtotal (1 unit)*
£269.54
(exc. VAT)
£323.45
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Stock information currently inaccessible - Please check back later
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £269.54 |
*price indicative
- RS Stock No.:
- 282-6495
- Mfr. Part No.:
- PV-125A-01XL
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 125A | |
| Fuse Type | PV 01XL | |
| Product Type | Tag Fuse | |
| Fuse Size | 01XL | |
| Voltage | 1000V | |
| Standards/Approvals | CSA, IEC 60269, UL | |
| Fixing Centres | 189 mm | |
| Application Category | gPV | |
| Tag Width | 189mm | |
| High Rupture Capacity | Yes | |
| Fuse Characteristics | Fast Acting | |
| Overall Length | 46.5mm | |
| Length | 46.5mm | |
| Height | 46.5mm | |
| Width | 189mm | |
| Series | Bussmann | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 125A | ||
Fuse Type PV 01XL | ||
Product Type Tag Fuse | ||
Fuse Size 01XL | ||
Voltage 1000V | ||
Standards/Approvals CSA, IEC 60269, UL | ||
Fixing Centres 189 mm | ||
Application Category gPV | ||
Tag Width 189mm | ||
High Rupture Capacity Yes | ||
Fuse Characteristics Fast Acting | ||
Overall Length 46.5mm | ||
Length 46.5mm | ||
Height 46.5mm | ||
Width 189mm | ||
Series Bussmann | ||
- COO (Country of Origin):
- HU
The Eaton XL fuse links are specifically designed to protect and isolate photovoltaic array combiners and disconnects. These fuse links are capable of interrupting low overcurrents associated with faulted PV systems (reverse current, multi-array fault).
Global accreditations
RoHS compliant
