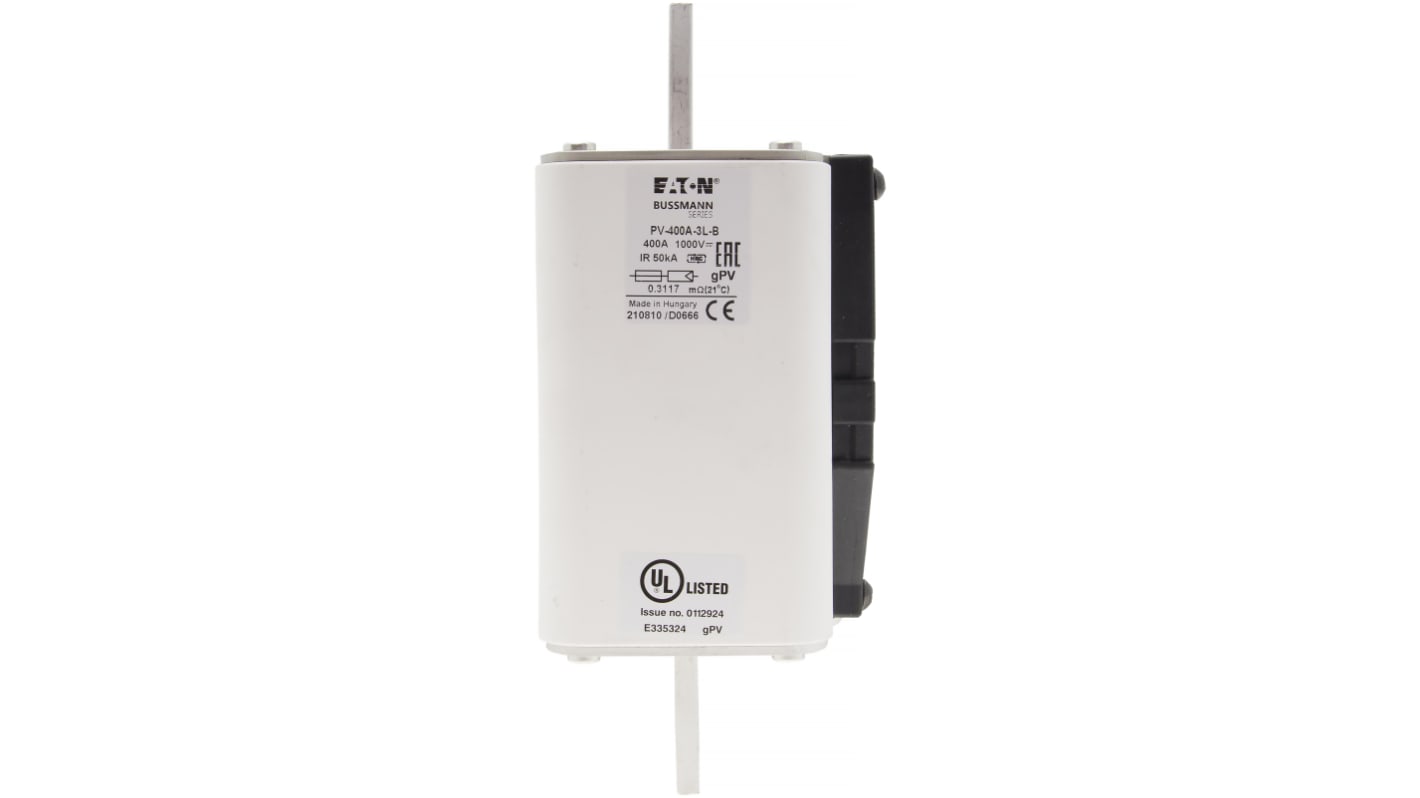

Eaton 400A Tag Fuse 91 x 201.4 x 73.5 mm 1000V, 170 mm
- RS Stock No.:
- 282-6246
- Mfr. Part No.:
- PV-400A-3L-B
- Brand:
- Eaton
Subtotal (1 unit)*
£666.19
(exc. VAT)
£799.43
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £666.19 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 282-6246
- Mfr. Part No.:
- PV-400A-3L-B
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Tag Fuse | |
| Current Rating | 400A | |
| Fuse Size | 91 x 201.4 x 73.5 mm | |
| Voltage | 1000V | |
| Standards/Approvals | CSA, IEC 60269, UL | |
| Fixing Centres | 170 mm | |
| Application Category | Photovoltaic Systems | |
| Fuse Speed | High | |
| High Rupture Capacity | 50 kAIC | |
| Length | 91mm | |
| Width | 73.5mm | |
| Height | 201.4mm | |
| Better World Product | Yes | |
| Better World Claim | Renewable Energy Solution | |
| Series | Bussmann | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Tag Fuse | ||
Current Rating 400A | ||
Fuse Size 91 x 201.4 x 73.5 mm | ||
Voltage 1000V | ||
Standards/Approvals CSA, IEC 60269, UL | ||
Fixing Centres 170 mm | ||
Application Category Photovoltaic Systems | ||
Fuse Speed High | ||
High Rupture Capacity 50 kAIC | ||
Length 91mm | ||
Width 73.5mm | ||
Height 201.4mm | ||
Better World Product Yes | ||
Better World Claim Renewable Energy Solution | ||
Series Bussmann | ||
- COO (Country of Origin):
- HU
Eaton Tag Fuse, 400A Current Rating, 1000V Voltage - PV-400A-3L-B
This tag fuse is designed for protection within photovoltaic systems, providing overcurrent interruption for solar arrays operating at high DC potentials. It is intended for use where Rapid disconnection of fault currents is required to protect strings, inverters and downstream equipment in PV installations.
Features & Benefits
• 400A rating permits high-current PV string protection and system sising
• 1000V DC capability allows direct connection to high-voltage arrays
• High-speed operation limits energy let-through during faults
• 50kAIC high rupture capacity clears substantial fault currents
• Conforms to IEC60269 series for recognised electrical performance
• Fixing centres of 170mm simplify secure panel or rail mounting
• 1000V DC capability allows direct connection to high-voltage arrays
• High-speed operation limits energy let-through during faults
• 50kAIC high rupture capacity clears substantial fault currents
• Conforms to IEC60269 series for recognised electrical performance
• Fixing centres of 170mm simplify secure panel or rail mounting
**Applications**
• Suitable for mid-to-large rooftop solar string protection
• Ideal for use in commercial PV farm combiner panels
• Used with inverter input protection on high-voltage arrays
• Can be used for Rapid disconnection in solar maintenance procedures
• Ideal for use in commercial PV farm combiner panels
• Used with inverter input protection on high-voltage arrays
• Can be used for Rapid disconnection in solar maintenance procedures
What mounting spacing is required to fit this device?
The fuse requires 170mm between fixing points to align with enclosure or rail attachments.
How Compact is the unit for panel layouts?
The body measures 91 x 201.4 x 73.5 mm which aids dense layouts in combiner boxes.
How does its speed characteristic affect system safety?
The high-speed characteristic reduces fault duration and limits thermal and mechanical stress on conductors.
