Eaton 200A Tag Fuse 1XL 1500V
- RS Stock No.:
- 282-6211
- Mfr. Part No.:
- PV-200A-1XL-15
- Brand:
- Eaton
Subtotal (1 unit)*
£306.71
(exc. VAT)
£368.05
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £306.71 |
*price indicative
- RS Stock No.:
- 282-6211
- Mfr. Part No.:
- PV-200A-1XL-15
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Tag Fuse | |
| Fuse Type | PV 1XL | |
| Current Rating | 200A | |
| Fuse Size | 1XL | |
| Voltage | 1500V | |
| Standards/Approvals | CE marked, RoHS Compliant, CSA, IEC 60269, UL | |
| Application Category | gPV | |
| Tag Width | 85mm | |
| Fuse Speed | F | |
| Fuse Characteristics | Fast Acting | |
| Overall Length | 217mm | |
| Length | 217mm | |
| Width | 85mm | |
| Height | 65mm | |
| Series | Bussmann | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Tag Fuse | ||
Fuse Type PV 1XL | ||
Current Rating 200A | ||
Fuse Size 1XL | ||
Voltage 1500V | ||
Standards/Approvals CE marked, RoHS Compliant, CSA, IEC 60269, UL | ||
Application Category gPV | ||
Tag Width 85mm | ||
Fuse Speed F | ||
Fuse Characteristics Fast Acting | ||
Overall Length 217mm | ||
Length 217mm | ||
Width 85mm | ||
Height 65mm | ||
Series Bussmann | ||

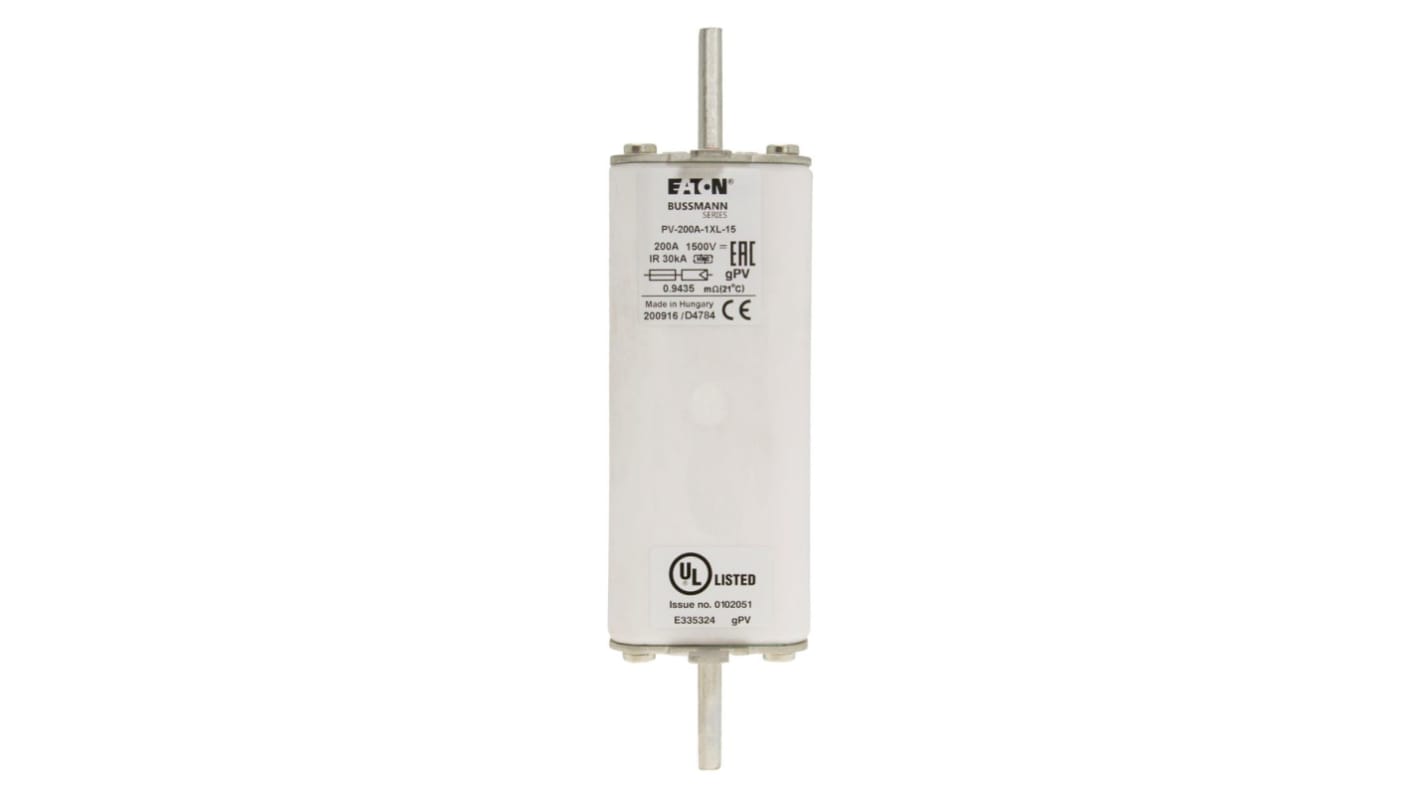

Eaton Tag Fuse, 200A Current, 1500V Voltage - PV-200A-1XL-15
This tag fuse provides overcurrent protection and isolation for photovoltaic array combiners and disconnects in high-voltage solar systems. Designed for use in gPV applications, it interrupts low-magnitude fault currents typical of reverse-current and multi-array faults while operating at elevated system voltages.
Features & Benefits
• 1500V rated voltage offering high-voltage solar protection
• 200A current rating for heavy-current PV circuits
• Fast-acting characteristic to limit fault energy
• gPV class operation for photovoltaic-specific performance
• Minimum interrupting rating equal to 2xIn for safety margin
• Compatible with dedicated XL fuse bases and extraction handles
• 200A current rating for heavy-current PV circuits
• Fast-acting characteristic to limit fault energy
• gPV class operation for photovoltaic-specific performance
• Minimum interrupting rating equal to 2xIn for safety margin
• Compatible with dedicated XL fuse bases and extraction handles
Applications
• Suitable for PV array combiners in utility-scale installations
• Ideal for DC isolator protection on rooftop systems
• used with compatible XL fuse bases in inverter inputs
• Can be used for isolation in multi-string PV configurations
• Suitable for replacing tag-style fuses in existing PV panels
• Ideal for DC isolator protection on rooftop systems
• used with compatible XL fuse bases in inverter inputs
• Can be used for isolation in multi-string PV configurations
• Suitable for replacing tag-style fuses in existing PV panels
What is the product’s behaviour during a low overcurrent fault?
It clears reverse-current and multi-array low overcurrent faults rapidly due to its fast-acting fuse element which reduces total let-through energy.
Which accessories are required for installation?
Installation requires the corresponding XL fuse base and an extraction handle sized for the fuse body
microswitches are available for status signalling.
How does the fuse perform thermally at rated current?
Power loss at rated current is specified so designers can assess thermal loading when selecting base assemblies and enclosure ventilation.
What standards govern its design and approval?
It meets IEC 60269‑6 and UL 248‑19 standards and is RoHS compliant, indicating adherence to recognised PV fuse specifications.
