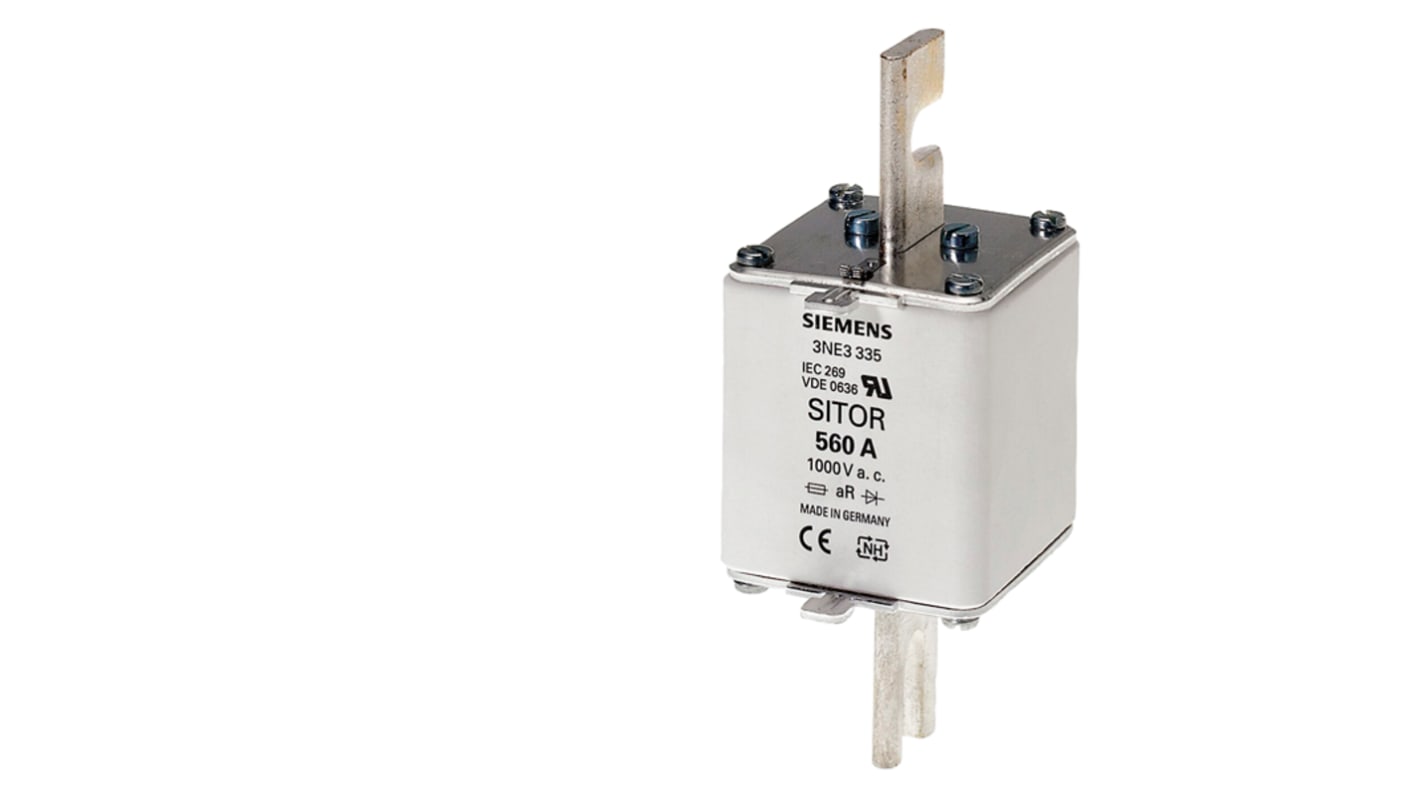

Siemens 560A NH Fuse NH2 1000V ac
- RS Stock No.:
- 269-8366
- Mfr. Part No.:
- 3NE3335
- Brand:
- Siemens
Subtotal (1 pack of 3 units)*
£640.179
(exc. VAT)
£768.216
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 3 + | £213.393 | £640.18 |
*price indicative
- RS Stock No.:
- 269-8366
- Mfr. Part No.:
- 3NE3335
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | NH Fuse | |
| Current Rating | 560A | |
| Fuse Size | NH2 | |
| Voltage | 1000V ac | |
| Standards/Approvals | EN 60269-1, IEC 60947-2 | |
| Application Category | aR | |
| Tag Width | 25mm | |
| High Rupture Capacity | Yes | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Length | 72mm | |
| Overall Length | 72mm | |
| Height | 149mm | |
| Width | 60mm | |
| Series | SENTRON | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type NH Fuse | ||
Current Rating 560A | ||
Fuse Size NH2 | ||
Voltage 1000V ac | ||
Standards/Approvals EN 60269-1, IEC 60947-2 | ||
Application Category aR | ||
Tag Width 25mm | ||
High Rupture Capacity Yes | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Length 72mm | ||
Overall Length 72mm | ||
Height 149mm | ||
Width 60mm | ||
Series SENTRON | ||
- COO (Country of Origin):
- GR
The Siemens semiconductor fuse protect power semiconductors from the effects of short circuits because the super quick-response disconnect characteristic is far quicker than with conventional LV HRC fuses. It protect expensive devices and system components, such as converters with fuses in the input and the DC link, UPS systems and soft starters for motors.
For the short-circuit protection of power semiconductors
High varying load factor
High level of operational safety and plant availability
Tested with regard to heat dissipation and maximum current loading
