Siemens 630A NH Fuse NH3 690V ac/dc
- RS Stock No.:
- 269-8331
- Mfr. Part No.:
- 3ND1372
- Brand:
- Siemens
Subtotal (1 pack of 3 units)*
£450.681
(exc. VAT)
£540.816
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 3 + | £150.227 | £450.68 |
*price indicative
- RS Stock No.:
- 269-8331
- Mfr. Part No.:
- 3ND1372
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Fuse Type | LV HRC | |
| Product Type | NH Fuse | |
| Current Rating | 630A | |
| Fuse Size | NH3 | |
| Voltage | 690V ac/dc | |
| Standards/Approvals | EAC, IEC 81346-2, EN 60269-1, IEC 60947-2, UKCA, CE | |
| Fuse Speed | AM | |
| High Rupture Capacity | Yes | |
| Fuse Characteristics | aM | |
| Minimum Operating Temperature | -5°C | |
| Overall Length | 83mm | |
| Maximum Operating Temperature | 40°C | |
| Length | 83mm | |
| Width | 21mm | |
| Height | 151mm | |
| Series | SENTRON | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Fuse Type LV HRC | ||
Product Type NH Fuse | ||
Current Rating 630A | ||
Fuse Size NH3 | ||
Voltage 690V ac/dc | ||
Standards/Approvals EAC, IEC 81346-2, EN 60269-1, IEC 60947-2, UKCA, CE | ||
Fuse Speed AM | ||
High Rupture Capacity Yes | ||
Fuse Characteristics aM | ||
Minimum Operating Temperature -5°C | ||
Overall Length 83mm | ||
Maximum Operating Temperature 40°C | ||
Length 83mm | ||
Width 21mm | ||
Height 151mm | ||
Series SENTRON | ||
- COO (Country of Origin):
- GR

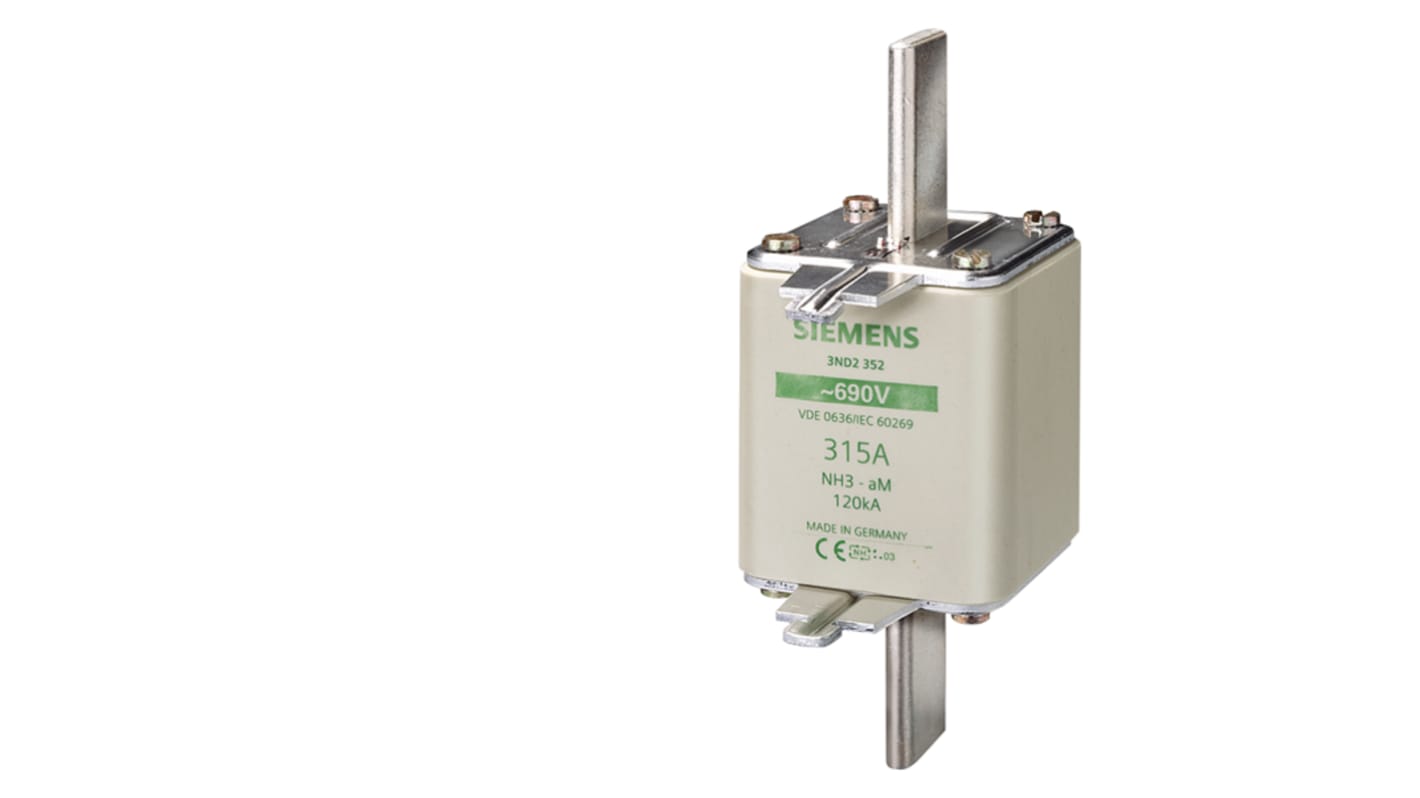

The Siemens LV HRC fuse is used for installation systems in non-residential, commercial and industrial buildings as well as in systems of power supply companies, thereby protect essential building parts and plants. The LV HRC fuse is fuse system designed for operation by experts. There are no constructional requirements for non-interchangeability of rated current and touch protection.
Live grip lugs
Equipped with silver-plated contact pins
Front indicator
NH3 operating class
