Bulk discount available
Subtotal (1 bag of 5 units)*
£35.08
(exc. VAT)
£42.10
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 20 unit(s), ready to ship
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £35.08 | £7.016 |
| 5 - 9 | £31.57 | £6.314 |
| 10 + | £29.85 | £5.97 |
*price indicative
- RS Stock No.:
- 221-3711
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Bolted Tag Fuse | |
| Current Rating | 25A | |
| Fuse Size | A2 | |
| Voltage | 690V ac | |
| Standards/Approvals | BS 88-2, IEC 60269-2, RoHS | |
| Fixing Centres | 73 mm | |
| Tag Width | 9mm | |
| Fuse Speed | F | |
| High Rupture Capacity | Yes | |
| Tag Orientation | Offset | |
| Overall Length | 86mm | |
| Length | 49mm | |
| Height | 22mm | |
| Width | 24mm | |
| Diameter | 22mm | |
| Series | SSA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Bolted Tag Fuse | ||
Current Rating 25A | ||
Fuse Size A2 | ||
Voltage 690V ac | ||
Standards/Approvals BS 88-2, IEC 60269-2, RoHS | ||
Fixing Centres 73 mm | ||
Tag Width 9mm | ||
Fuse Speed F | ||
High Rupture Capacity Yes | ||
Tag Orientation Offset | ||
Overall Length 86mm | ||
Length 49mm | ||
Height 22mm | ||
Width 24mm | ||
Diameter 22mm | ||
Series SSA | ||
- COO (Country of Origin):
- GB

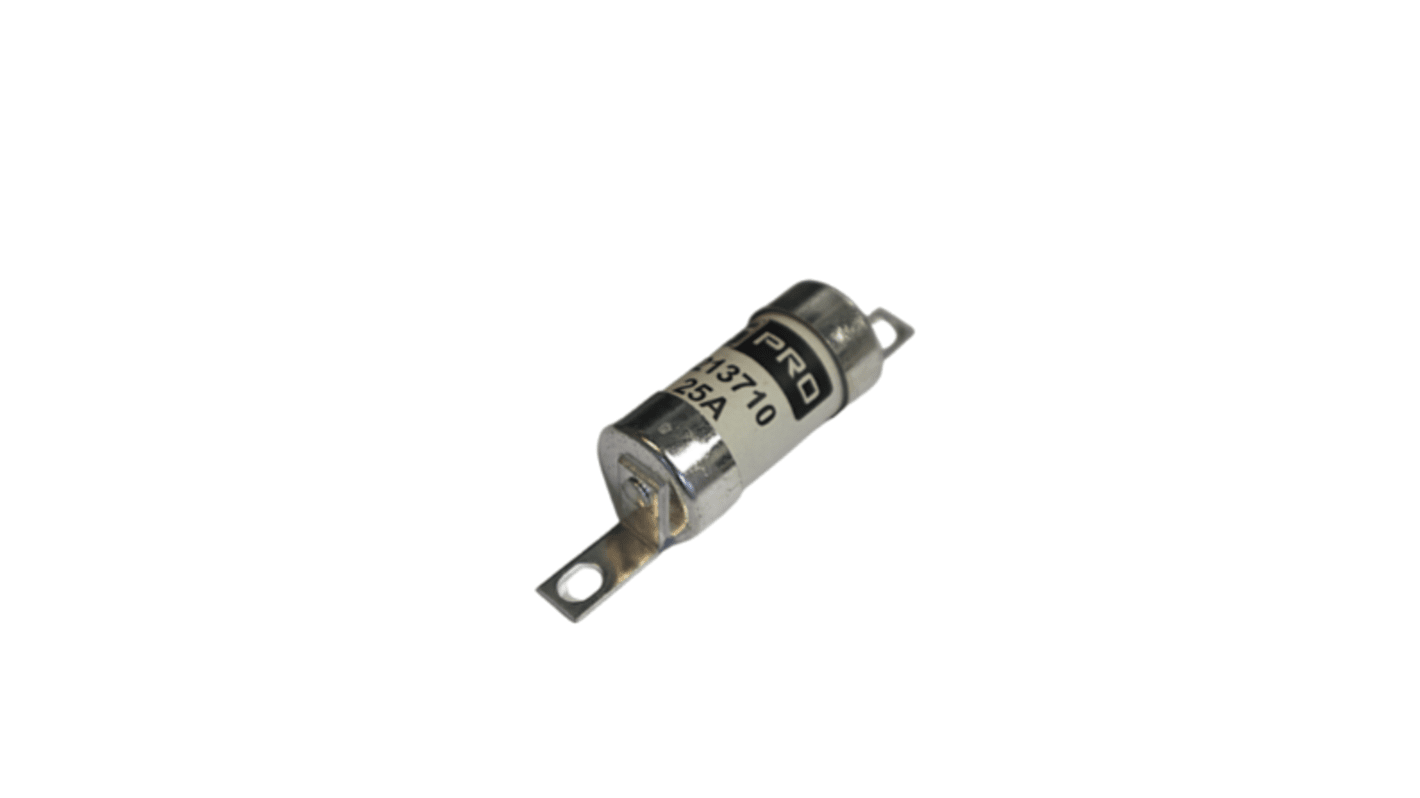

RS PRO SSA Series Bolted Tag Fuses
Introducing from RS PRO the SSA series bolted tag fuses. These fuses are used in industrial applications designed to protect electrical circuits when overcurrent or short circuits are detected. They do this via a weak sacrificial link that breaks, protecting the electrical circuitry.
Upon inspection, each fuse is housed within a fuse holder with a tag at either end with mounting through-holes. The RS PRO SSA series offer a voltage rating of 250 V dc, 690 Vac with 6A to 63A current ratings. Installation is quick and easy and complies with the fuse standard IEC 60269-2/BS 88-2.
Why is a fuse important?
The main purpose of a fuse is to offer circuit protection by acting as the weakest link in the system. It is designed to fail when overloads occur. It’s safer and cheaper to replace a solitary fuse than to replace electrical components within the system.
Features and Benefits
General Specification
Applications
