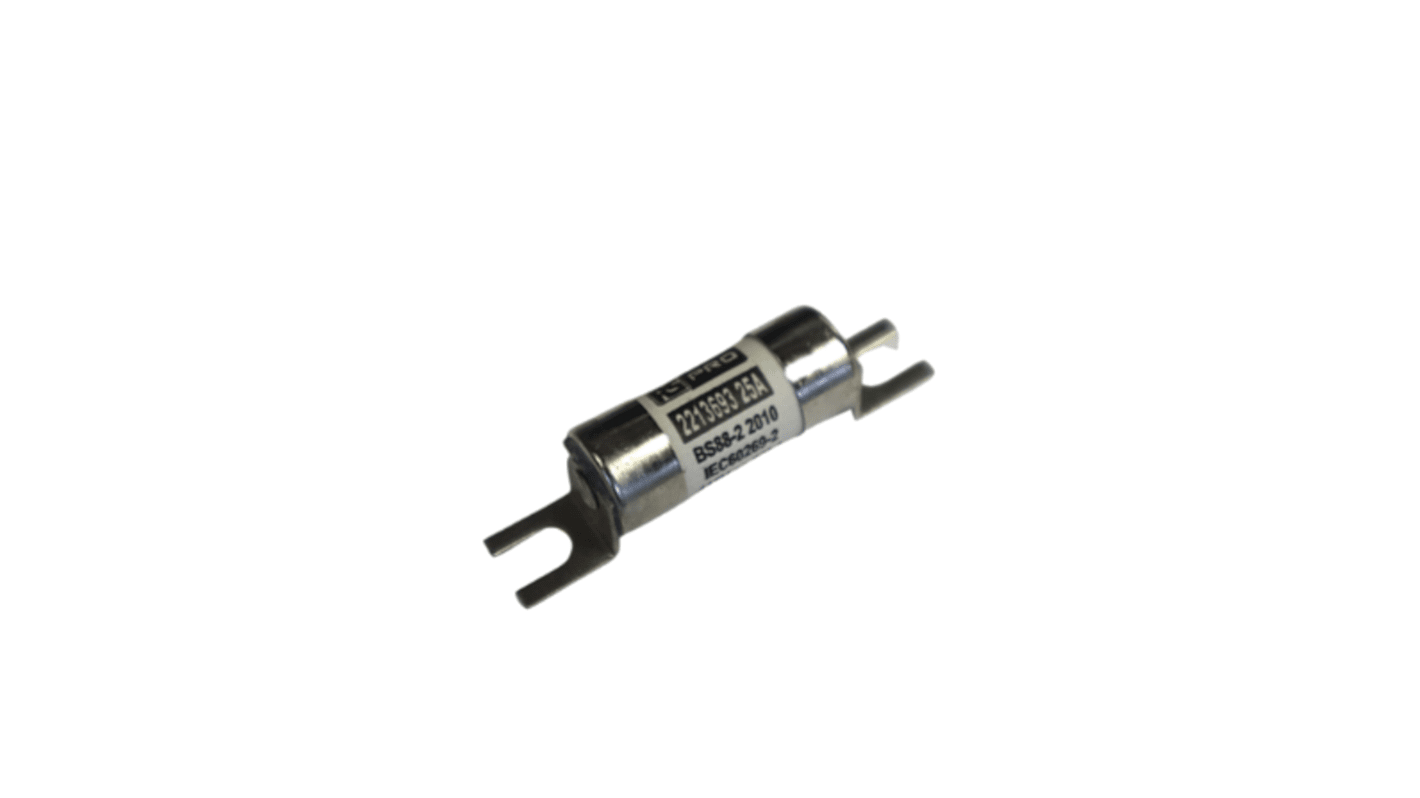

RS PRO 25A Slotted Tag Fuse, A1, 250 V dc, 415V ac, 44.5mm

View all Tag Fuses
Bulk discount available

Subtotal (1 bag of 5 units)*

£21.92

(exc. VAT)

£26.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 - 4£21.92£4.384
5 - 9£19.70£3.94
10 +£18.67£3.734

*price indicative

RS Stock No.:
221-3694
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Current Rating

25A

Fuse Size

A1

Voltage Rating

250 V dc, 415V ac

Fuse Standard

IEC 60269-2/BS 88-2

Fixing Centres

44.5mm

Application Category

gG, gM

Tag Width

9.5mm

High Rupture Capacity

Yes

Overall Length

56mm

Body Diameter

12.7mm

Tag Type

Slotted

Body Length

33mm

Tag Orientation

Offset

Series

NIT

COO (Country of Origin):
GB

RS PRO NIT Series Slotted Tag Fuses


Introducing from RS PRO the NIT series bolted tag fuses. These fuses are used in industrial application designed to protect electrical circuits when overcurrent or short circuits are detected. They do this via a weak sacrificial link that breaks, protecting the electrical circuitry.

Upon inspection, each fuse is housed within a fuse holder with a tag at either end with mounting through-holes. The RS PRO NIT series offer a voltage rating of 250 V dc, 415 Vac with 6A to 25A current ratings. Installation is quick and easy and complies with the fuse standard IEC 60269-2/BS 88-2.

Why is a fuse important?


The main purpose of a fuse is to offer circuit protection by acting as the weakest link in the system. It is designed to fail when overloads occur. It’s safer and cheaper to replace a solitary fuse than to replace electrical components within the system.

Features and Benefits


  • Protection during overload and shorts

  • Slotted tag

  • Breaking Capacities 80kA a.c.,40kA d.c.

  • Type: Bolted tag fuse

  • Fuse Size: A1

  • Application Category: gG/gM

  • Standards Met: IEC 60269-2/BS88-2

General Specification


  • Voltage Rating: 250 V dc, 415 V ac

  • Current Rating: 6A, 10A, 25A

  • Tag Width: 9.5 mm

  • Overall Length: 56 mm

  • Body Diameter: 12.7 mm

  • Body Length: 33 mm

Applications


  • Machinery

  • Industrial Buildings

  • Distribution Network
