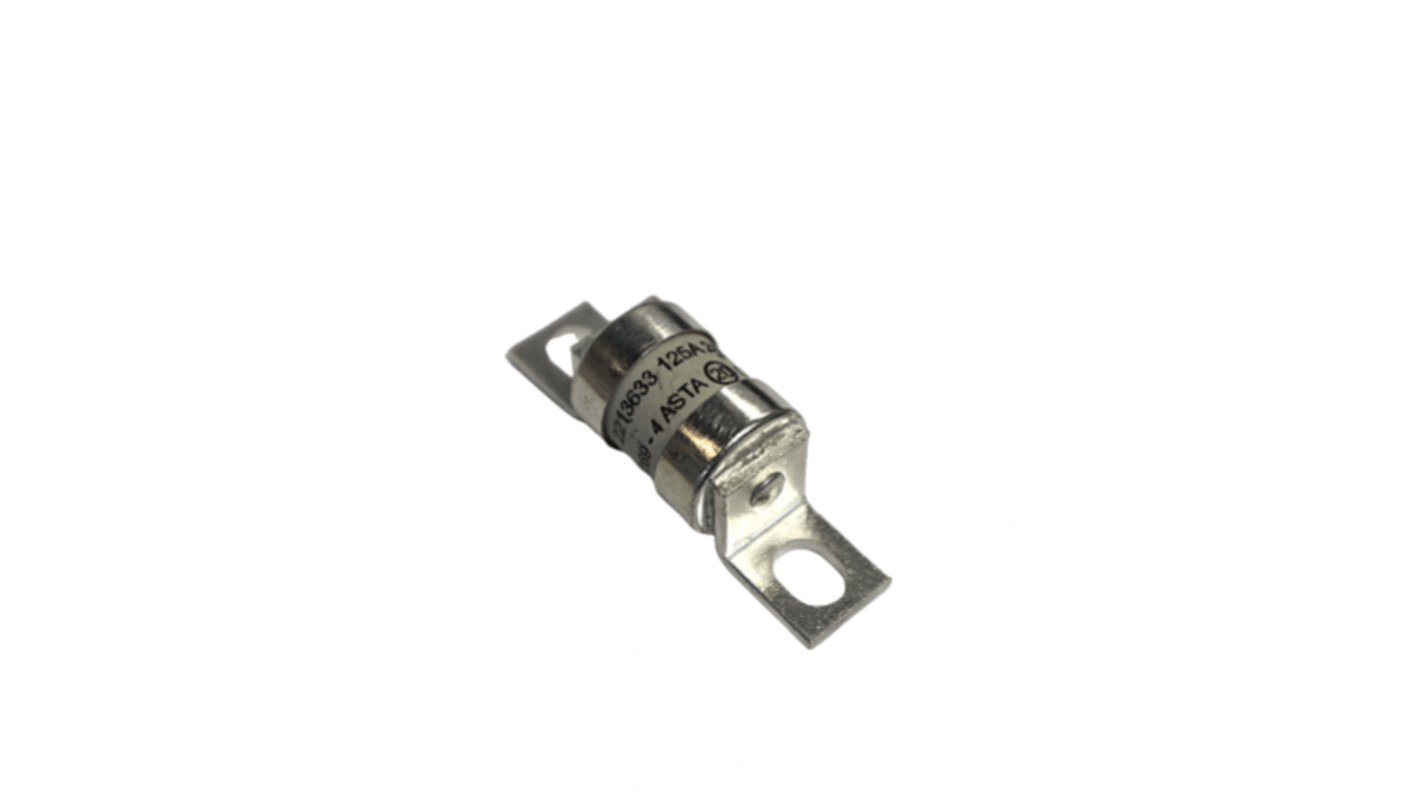

RS PRO 125A Bolted Tag Fuse, 120 V dc, 240V ac, 59mm
- RS Stock No.:
- 221-3633
- Brand:
- RS PRO
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 221-3633
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Current Rating | 125A | |
Voltage Rating | 120 V dc, 240V ac | |
Fuse Standard | IEC 60269-4/BS 88-4 | |
Fixing Centres | 59mm | |
Application Category | aR | |
Tag Width | 12.7mm | |
High Rupture Capacity | Yes | |
Overall Length | 85mm | |
Tag Type | Bolted | |
Body Diameter | 41.5mm | |
Body Length | 32.6mm | |
Tag Orientation | Offset | |
Series | LSA | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Current Rating 125A | ||
Voltage Rating 120 V dc, 240V ac | ||
Fuse Standard IEC 60269-4/BS 88-4 | ||
Fixing Centres 59mm | ||
Application Category aR | ||
Tag Width 12.7mm | ||
High Rupture Capacity Yes | ||
Overall Length 85mm | ||
Tag Type Bolted | ||
Body Diameter 41.5mm | ||
Body Length 32.6mm | ||
Tag Orientation Offset | ||
Series LSA | ||
- COO (Country of Origin):
- GB
RS PRO LSA Series Bolted Tag Fuses
Introducing from RS PRO the LSA series bolted tag fuses. These fuses are designed to protect electrical circuits when overcurrent or short circuits are detected. They do this via a weak sacrificial link that breaks, protecting the electrical circuitry.
Upon inspection, each fuse is housed within a fuse holder with a tag at either end with mounting through-holes. The RS PRO LSA series offer a voltage rating of 120 V dc, 240 Vac, and 125 A current rating. Installation is quick and easy and complies with the fuse standard IEC 60269-4/BS 88-4.
Why is a fuse important?
The main purpose of a fuse is to offer circuit protection by acting as the weakest link in the system. It is designed to fail when overloads occur. Its safer and cheaper to replace a solitary fuse than to replace electrical components within the system.
Features and Benefits
- Protection during overload and shorts
- Fuses feature tags with through-holes
- Breaking Capacities 100kA a.c.,100kA d.c.
- Low voltage fuse
- Type: Bolted tag fuse
- Application Category: AR
- Standards Met: IEC 60269-4/BS88-4
General Specification
- Voltage Rating: 120 V dc, 240 V ac
- Current Rating: 125 A
- Tag Width: 25.4 mm
- Overall Length: 85 mm
- Body Diameter: 41.5 mm
- Body Length: 32.6 mm
- Tag Orientation: Offset
Applications
- Machinery
- Industrial Buildings
- Distribution Network
