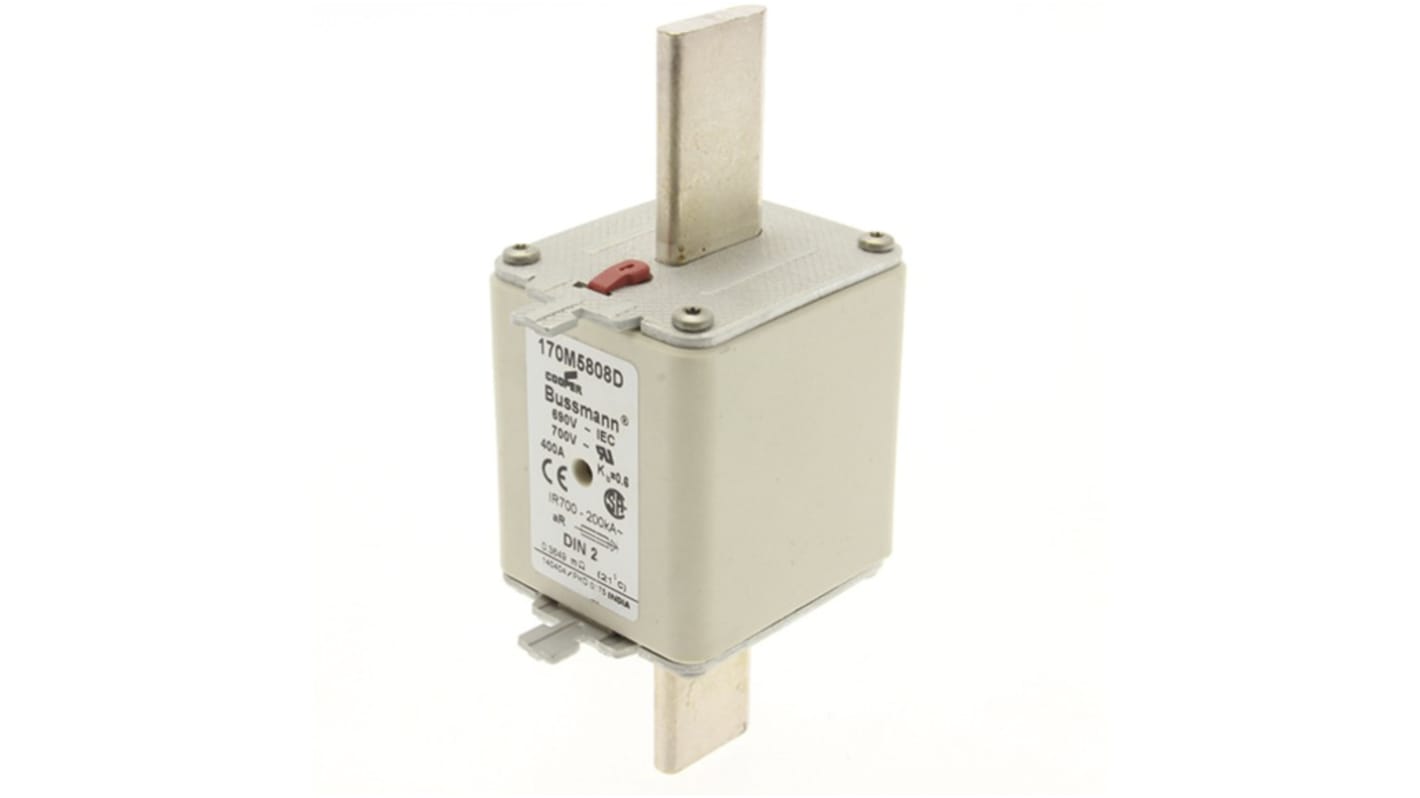

Eaton 400A Centred Tag Fuse, NH2, 690V
- RS Stock No.:
- 182-1765
- Mfr. Part No.:
- 170M5808D
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£294.01
(exc. VAT)
£352.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £294.01 |
| 2 + | £279.32 |
*price indicative
- RS Stock No.:
- 182-1765
- Mfr. Part No.:
- 170M5808D
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 400A | |
| Fuse Size | NH2 | |
| Voltage Rating | 690V | |
| Fuse Standard | CE, CSA, IEC 60269, UL | |
| Application Category | aR | |
| Tag Width | 25mm | |
| Overall Length | 150mm | |
| Tag Type | Blade | |
| Body Length | 72mm | |
| Body Width | 54mm | |
| Body Height | 68mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 400A | ||
Fuse Size NH2 | ||
Voltage Rating 690V | ||
Fuse Standard CE, CSA, IEC 60269, UL | ||
Application Category aR | ||
Tag Width 25mm | ||
Overall Length 150mm | ||
Tag Type Blade | ||
Body Length 72mm | ||
Body Width 54mm | ||
Body Height 68mm | ||
- COO (Country of Origin):
- IN
Eaton Centred Tag Fuse, 400A Current Rating, 690V AC Voltage Rating - 170M5808D
This centred tag fuse is designed to deliver exceptional performance in electrical applications. With a current rating of 400A and a voltage rating of 690V AC, this NH2 fuse size measures 72 x 54 x 68mm. The fuse features a centred orientation and is built to meet various electrical fuse standards, enhancing its reliability in critical setups.
Features & Benefits
• High rupture capacity ensures safe operation during faults
• Meets CE, CSA, IEC 60269, and UL electrical standards
• Blade tag type allows for easy installation and removal
• Well-suited for applications requiring high-speed fusing
• Compact size enables use in space-constrained environments
• Offers precise protection for electrical systems from overloads
• Meets CE, CSA, IEC 60269, and UL electrical standards
• Blade tag type allows for easy installation and removal
• Well-suited for applications requiring high-speed fusing
• Compact size enables use in space-constrained environments
• Offers precise protection for electrical systems from overloads
Applications
• Utilised in industrial automation for protecting equipment
• Suitable for electrical systems with high fault levels
• Employed in machinery to safeguard against overloads
• Ideal for use in power distribution networks
• Suitable for electrical systems with high fault levels
• Employed in machinery to safeguard against overloads
• Ideal for use in power distribution networks
What electrical standards does this product comply with?
This product is designed to meet multiple standards including CE, CSA, IEC 60269, and UL, ensuring it provides a reliable and compliant protection solution for various applications.
How does the high rupture capacity benefit the user?
The high rupture capacity allows the fuse to safely interrupt high fault currents without causing damage to the electrical system, protecting components from potential harm during faults.
What is the significance of the aR application category?
The aR application category indicates that this fuse is designed for high-speed protection of electrical devices, making it suitable for rapid response to overload conditions.
Can this fuse be used in environments with limited space?
Yes, its compact dimensions make it an excellent choice for installations in confined spaces while still ensuring effective protection against electrical faults.
Note
Eaton formerly known as Bussmann
