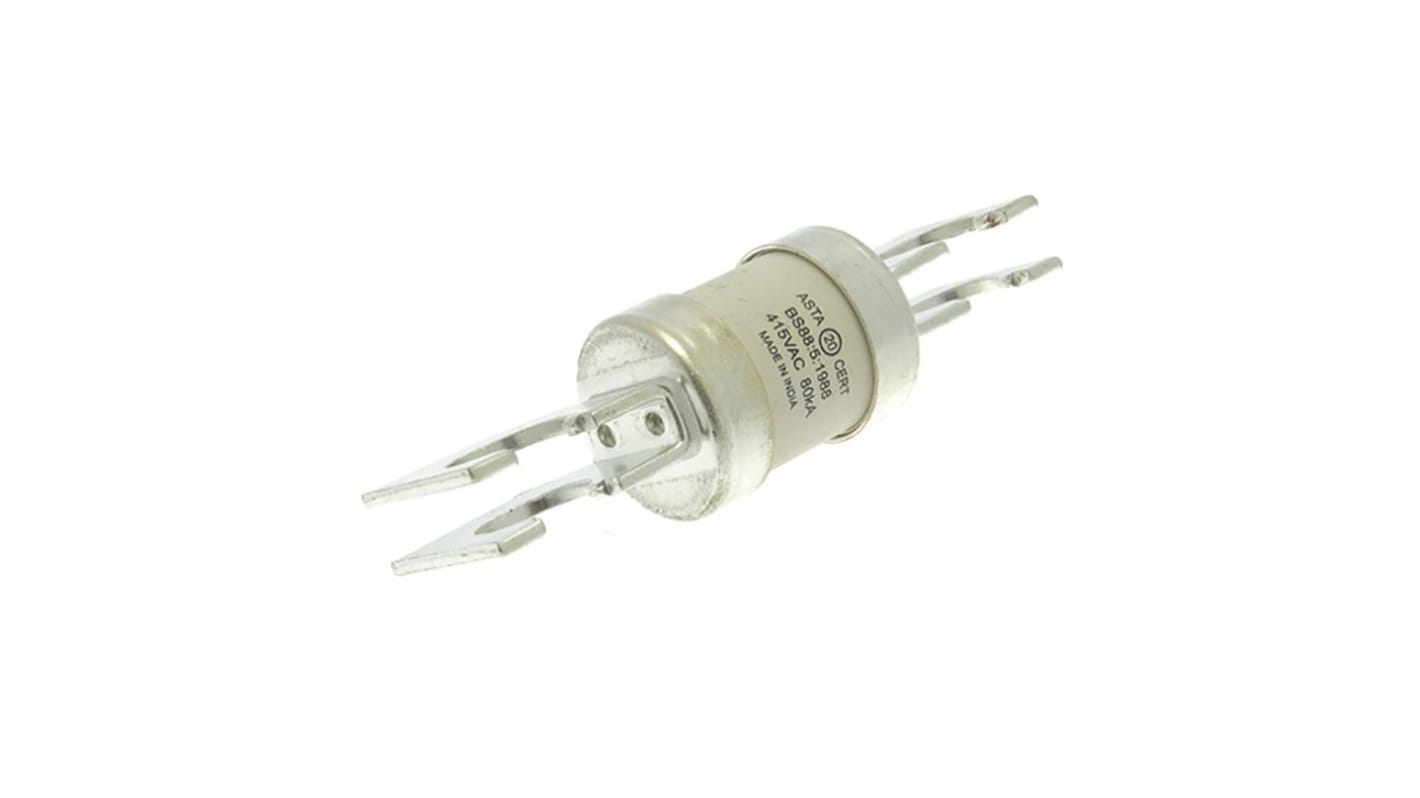

Eaton 125A Bolted Tag Fuse, 415V ac, 82mm
- RS Stock No.:
- 181-8890
- Mfr. Part No.:
- 125MJ30-7
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£40.63
(exc. VAT)
£48.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £40.63 |
| 5 + | £38.60 |
*price indicative
- RS Stock No.:
- 181-8890
- Mfr. Part No.:
- 125MJ30-7
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 125A | |
| Voltage Rating | 415V ac | |
| Fuse Standard | BS88, IEC 60269 | |
| Fixing Centres | 82mm | |
| Application Category | gG | |
| Tag Width | 30mm | |
| High Rupture Capacity | Yes | |
| Overall Length | 110mm | |
| Tag Type | Slotted | |
| Body Diameter | 30.9mm | |
| Tag Orientation | Centred | |
| Body Length | 40.5mm | |
| Body Width | 31mm | |
| Series | Eaton Bussmann | |
| Fuse Dimensions | 30.9 x 40.5mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 125A | ||
Voltage Rating 415V ac | ||
Fuse Standard BS88, IEC 60269 | ||
Fixing Centres 82mm | ||
Application Category gG | ||
Tag Width 30mm | ||
High Rupture Capacity Yes | ||
Overall Length 110mm | ||
Tag Type Slotted | ||
Body Diameter 30.9mm | ||
Tag Orientation Centred | ||
Body Length 40.5mm | ||
Body Width 31mm | ||
Series Eaton Bussmann | ||
Fuse Dimensions 30.9 x 40.5mm | ||
- COO (Country of Origin):
- IN
Eaton Bolted Tag Fuse, 125A Current Rating, 415V AC Voltage - 125MJ30-7
This bolted tag fuse is a crucial low voltage utility fuse-link, designed to effectively handle a rated current of 125A at 415V AC. With robust construction conforming to BS88/J standards, it measures 31mm x 110mm, ensuring compatibility across various applications. The high rupture capacity and slotted tag type enhance its functionality, making it an essential component in electrical systems.
Features & Benefits
• High rupture capacity fuse provides enhanced fault protection
• Reliable dual bolted tags ensure a secure connection
• Designed for low voltage applications, optimising performance
• Compliant with BS88 and IEC 60269 standards for safety
• Suitable for feeder pillars, enhancing versatility
• 82mm fixing centres facilitate easy installation
• Reliable dual bolted tags ensure a secure connection
• Designed for low voltage applications, optimising performance
• Compliant with BS88 and IEC 60269 standards for safety
• Suitable for feeder pillars, enhancing versatility
• 82mm fixing centres facilitate easy installation
Applications
• Used in feeder pillars for effective circuit protection
• Utilised in industrial settings needing reliable fuse solutions
• Compatible with Eaton fuse holders for added convenience
• Ideal for equipment requiring reliable electrical safety fuses
• Utilised in industrial settings needing reliable fuse solutions
• Compatible with Eaton fuse holders for added convenience
• Ideal for equipment requiring reliable electrical safety fuses
What is the breaking capacity of this fuse?
The breaking capacity is rated at 80kA, making it suitable for high fault levels in electrical systems, ensuring reliable operation during overload scenarios.
How does this fuse contribute to electrical safety?
The high rupture capacity allows the fuse to interrupt current quickly during faults, minimising the risk of electrical fires and system damage.
Is this product compatible with existing electrical setups?
Yes, owing to its BS88/J construction size and 82mm fixing centres, it can easily integrate into most electrical systems without extensive modifications.
What applications are best suited for this bolted tag fuse?
This fuse is particularly effective in feeder pillars, industrial machinery, and other low voltage systems that require dependable circuit protection.
Note
Eaton formerly known as Bussmann
