Eaton 100A NH Fuse, NH00, 690V
- RS Stock No.:
- 181-8772
- Mfr. Part No.:
- 100NHG00B-690
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£6.60
(exc. VAT)
£7.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 43 unit(s) ready to ship
- Plus 999,999,956 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £6.60 |
| 2 + | £6.26 |
*price indicative
- RS Stock No.:
- 181-8772
- Mfr. Part No.:
- 100NHG00B-690
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 100A | |
| Fuse Size | NH00 | |
| Voltage Rating | 690V | |
| Fuse Standard | DIN 43620, IEC 60269-1, IEC 60269-2 | |
| Application Category | gG | |
| Tag Width | 6mm | |
| Overall Length | 79mm | |
| Body Length | 47.8mm | |
| Body Width | 29.55mm | |
| Body Height | 49.7mm | |
| Series | Eaton Bussmann | |
| Fuse Dimensions | 79 x 30 x 58mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 100A | ||
Fuse Size NH00 | ||
Voltage Rating 690V | ||
Fuse Standard DIN 43620, IEC 60269-1, IEC 60269-2 | ||
Application Category gG | ||
Tag Width 6mm | ||
Overall Length 79mm | ||
Body Length 47.8mm | ||
Body Width 29.55mm | ||
Body Height 49.7mm | ||
Series Eaton Bussmann | ||
Fuse Dimensions 79 x 30 x 58mm | ||
- COO (Country of Origin):
- IN

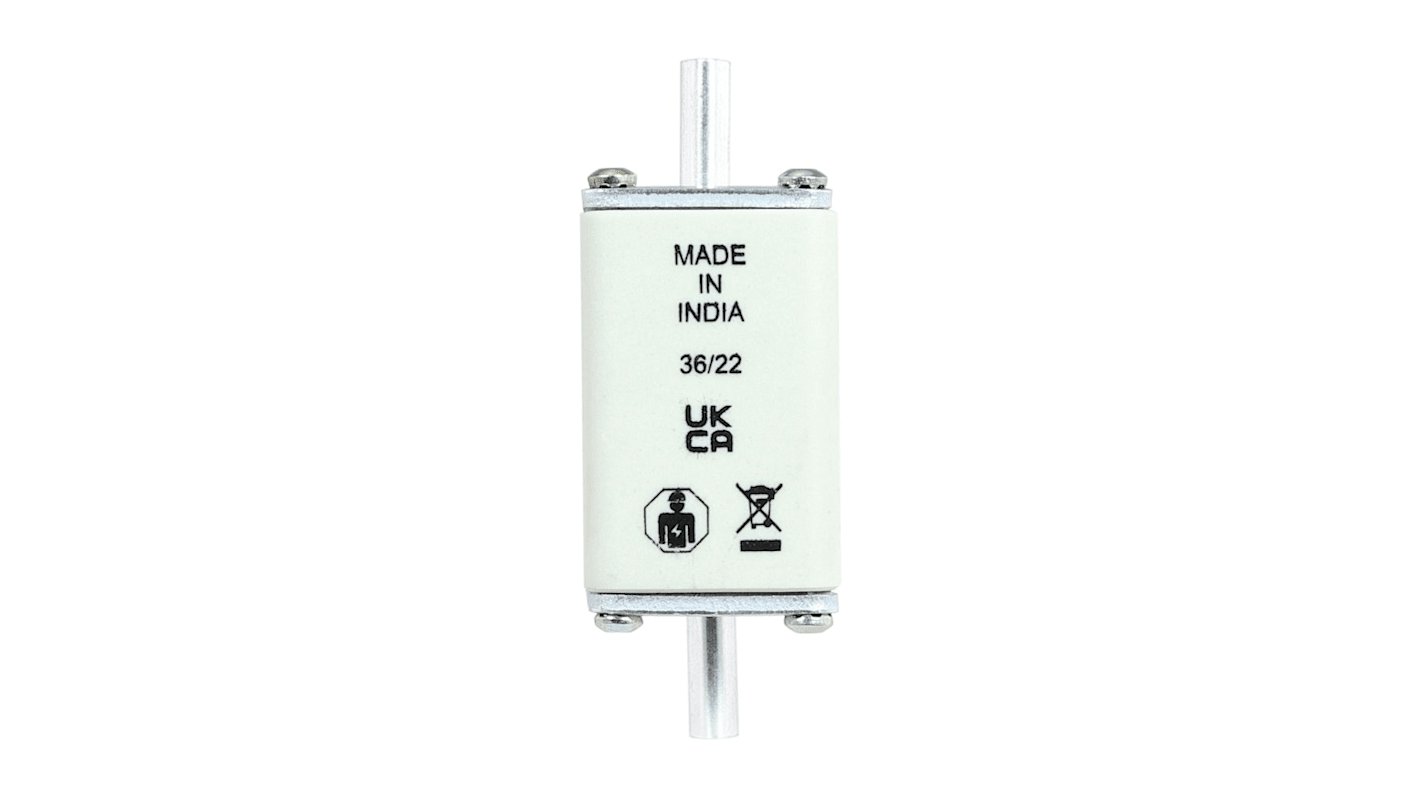

Eaton NH Fuse, 100A Current Rating, 690V Voltage Rating - 100NHG00B-690
This low voltage NH fuse provides essential protection in electrical systems, rated for 100 A and a maximum voltage of 690V. Its compact dimensions of 79x30x58mm make it adaptable for various installations while complying with industry standards.
Features & Benefits
• Complies with IEC 60269 and DIN 43620 standards for dependability
• Suitable for AC voltage applications to enhance compatibility
• gG fuse application ensures effective protection of equipment
• High breaking capacity of 120 kA for added safety
• Conforms to RoHS regulations for environmental safety
• Compatible with multiple fuse switch-disconnectors for versatility
• Suitable for AC voltage applications to enhance compatibility
• gG fuse application ensures effective protection of equipment
• High breaking capacity of 120 kA for added safety
• Conforms to RoHS regulations for environmental safety
• Compatible with multiple fuse switch-disconnectors for versatility
Applications
• Designed for use with EBH size 00 to 4 Horisontal fuse switch-disconnectors
• Ideal for integration with Microswitch 170H0236
• Compatible with TD00-D and SD00-D NH fuse bases
• Effective for protecting industrial electrical installations
• Ideal for integration with Microswitch 170H0236
• Compatible with TD00-D and SD00-D NH fuse bases
• Effective for protecting industrial electrical installations
Can it be used in high-frequency applications?
Yes, it operates effectively within 45 Hz to 62 Hz.
Will it fit into a standard NH00 fuse base?
Yes, it is specifically designed for NH00 fuse bases.
Is it suitable for protecting both cables and equipment?
Yes, it is designed for the protection of both cables and equipment.
Can it indicate its operational status?
Yes, it includes a combination fuse status indicator.
Note
Eaton formerly known as Bussmann
