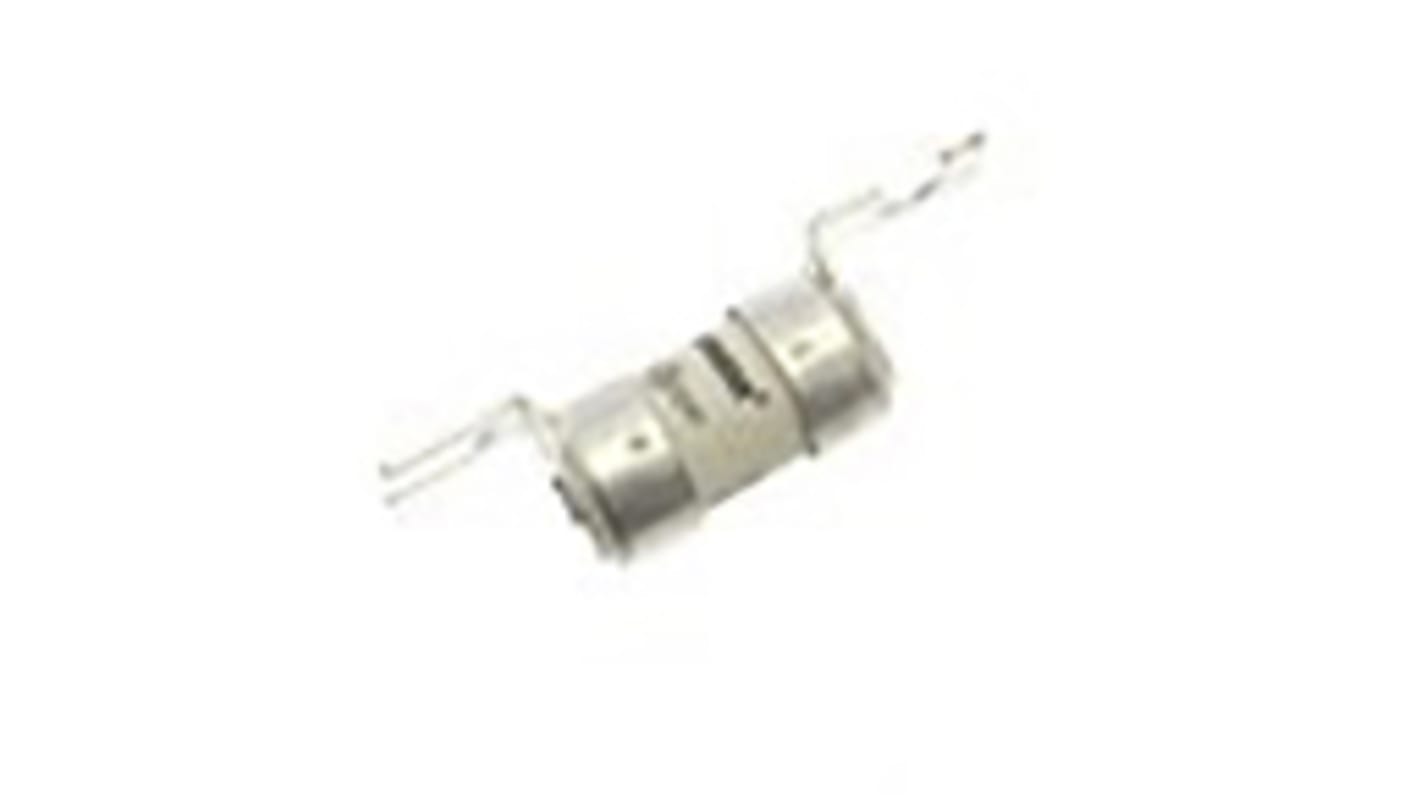

Eaton 16A Bolted Tag Fuse 12 x 47 mm 240V ac, 35 mm
- RS Stock No.:
- 181-8451
- Mfr. Part No.:
- STD16
- Brand:
- Eaton
Subtotal (1 box of 20 units)*
£65.04
(exc. VAT)
£78.05
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £65.04 | £3.252 |
*price indicative
- RS Stock No.:
- 181-8451
- Mfr. Part No.:
- STD16
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Bolted Tag Fuse | |
| Current Rating | 16A | |
| Fuse Size | 12 x 47 mm | |
| Voltage | 240V ac | |
| Standards/Approvals | RoHS, IEC 60269, CE | |
| Fixing Centres | 35 mm | |
| Tag Width | 11mm | |
| Fuse Speed | F | |
| High Rupture Capacity | Yes | |
| Overall Length | 47mm | |
| Length | 24mm | |
| Tag Orientation | Offset | |
| Diameter | 12mm | |
| Height | 12mm | |
| Width | 13mm | |
| Series | STD | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Bolted Tag Fuse | ||
Current Rating 16A | ||
Fuse Size 12 x 47 mm | ||
Voltage 240V ac | ||
Standards/Approvals RoHS, IEC 60269, CE | ||
Fixing Centres 35 mm | ||
Tag Width 11mm | ||
Fuse Speed F | ||
High Rupture Capacity Yes | ||
Overall Length 47mm | ||
Length 24mm | ||
Tag Orientation Offset | ||
Diameter 12mm | ||
Height 12mm | ||
Width 13mm | ||
Series STD | ||
Eaton STD fuse links are specifically designed for street lighting applications with Q1 fusing purpose.
Fuse-link, LV, 16 A, AC 240 V 88, 12 x 47 mm, gL/gG
Good peak let-through current limitation
1:1:6 Selective coordination ratio between “minor” and “major” fuse
gG characteristics for cable protection and general purpose applications
Note
Eaton formerly known as Bussmann
