Bulk discount available
Subtotal (1 pack of 5 units)*
£33.25
(exc. VAT)
£39.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 80 unit(s) shipping from 30 October 2025
- Plus 140 unit(s) shipping from 12 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £6.65 | £33.25 |
25 - 120 | £5.886 | £29.43 |
125 - 245 | £5.552 | £27.76 |
250 - 495 | £5.078 | £25.39 |
500 + | £4.836 | £24.18 |
*price indicative
- RS Stock No.:
- 122-9599
- Mfr. Part No.:
- ESD50
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 50A | |
Fuse Size | F2 | |
Voltage Rating | 415V ac | |
Fuse Standard | BS 88, IEC 269-1 | |
Application Category | gG | |
Tag Width | 15mm | |
High Rupture Capacity | Yes | |
Overall Length | 67mm | |
Body Diameter | 17.5mm | |
Tag Type | Blade | |
Tag Orientation | Offset | |
Body Length | 67mm | |
Body Width | 18mm | |
Body Height | 35.5mm | |
Fuse Dimensions | 67 x 18 x 18mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 50A | ||
Fuse Size F2 | ||
Voltage Rating 415V ac | ||
Fuse Standard BS 88, IEC 269-1 | ||
Application Category gG | ||
Tag Width 15mm | ||
High Rupture Capacity Yes | ||
Overall Length 67mm | ||
Body Diameter 17.5mm | ||
Tag Type Blade | ||
Tag Orientation Offset | ||
Body Length 67mm | ||
Body Width 18mm | ||
Body Height 35.5mm | ||
Fuse Dimensions 67 x 18 x 18mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IN

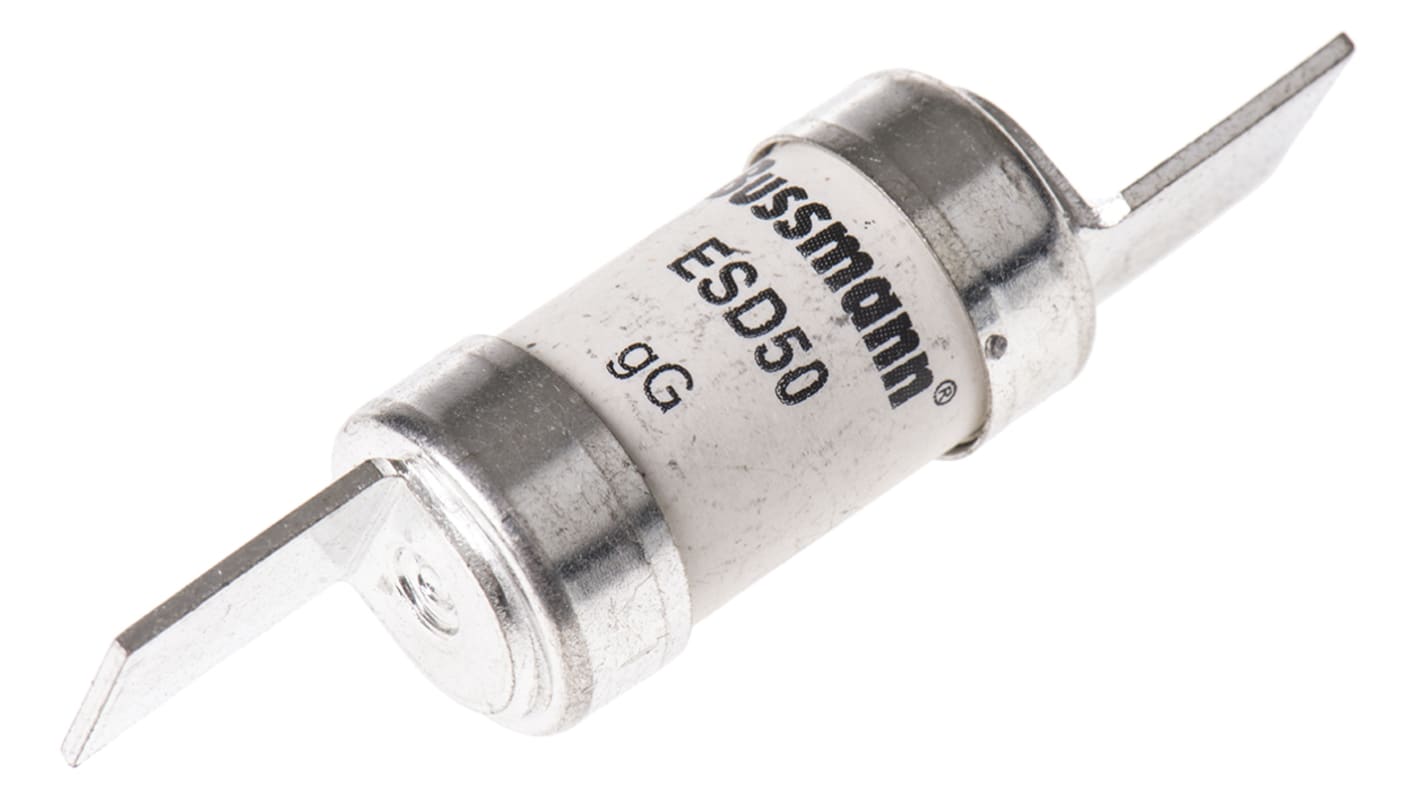

Eaton British Standard Fuse, 80kA Breaking Capacity, Pack of 5 - ESD50
Stop electrical faults in their tracks with this British Standard fuse from Eaton. It breaks when short circuits or overcurrents occur, which protects equipment and cuts downtime out of the picture. Thanks to its low-temperature rise, you can safely install the unit in high-density enclosures. Offset tags make bolting it onto a holder a piece of cake. With an overall length of just 67mm, this compact device takes up minimal space in your switchgear, medical imaging installations and automated factory applications.
Features & Benefits
• 50A current rating for use with heavy-duty applications
• Weighs just 29.85g, putting minimal strain on systems
• Weighs just 29.85g, putting minimal strain on systems
Which fuse holders are compatible with this British Standard fuse?
The unit slots accurately into Eaton rail mount fuse holders (such as 247-9492).
What type of fuse is this?
This is an HRC fuse, which means it has a high-rupturing capacity as it's made from heat-resistant material filled with powder. Under normal conditions, the fuse element stays below melting point and carries current without a hitch. When the current spikes, it immediately melts and the circuit is broken.
Note
Eaton formerly known as Bussmann
