C & K IP40 Black Tact Switch, SPST 100 mA @ 30 V dc
- RS Stock No.:
- 787-4849
- Mfr. Part No.:
- K12A BK 1 5N
- Brand:
- C & K

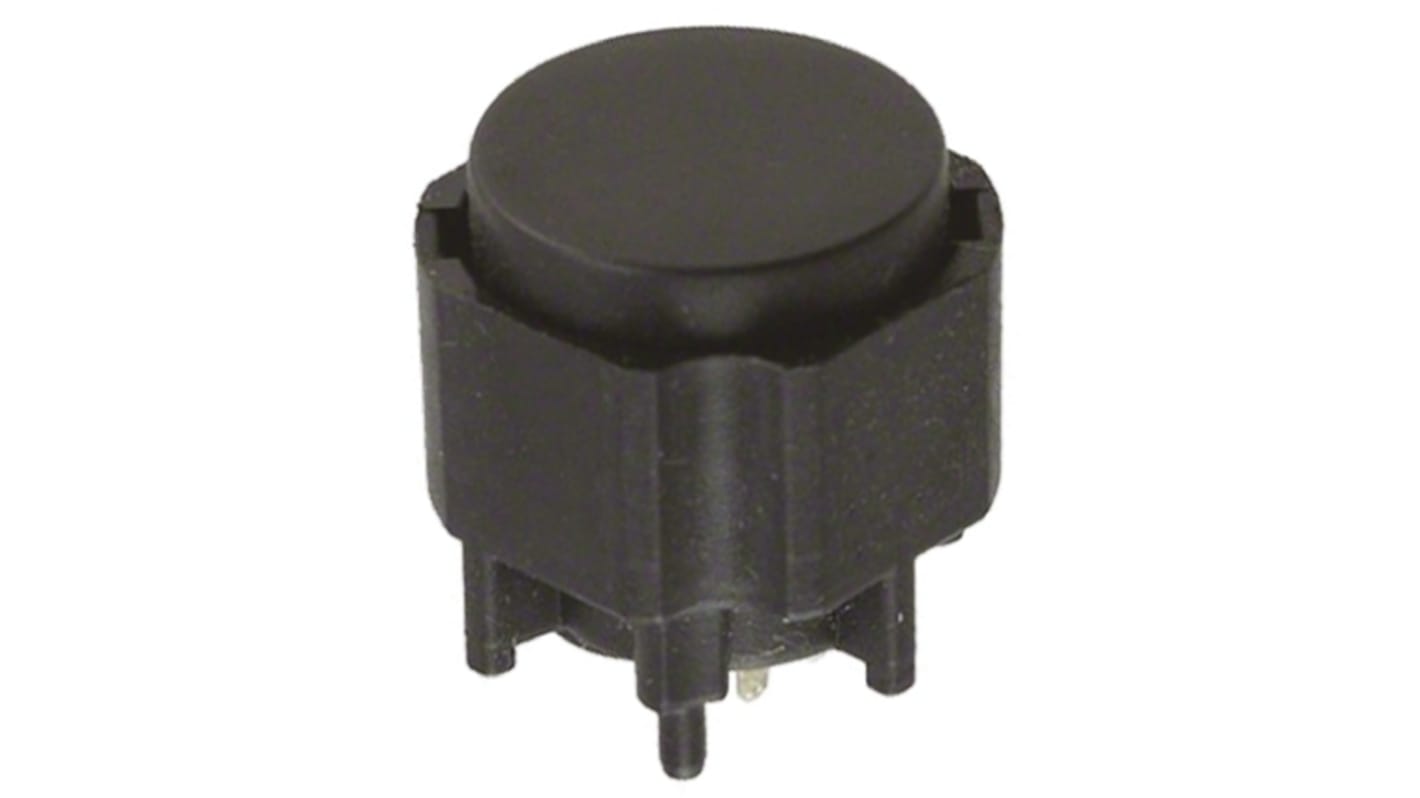

Image representative of range
Subtotal (1 unit)*
£3.23
(exc. VAT)
£3.88
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 151 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £3.23 |
*price indicative
- RS Stock No.:
- 787-4849
- Mfr. Part No.:
- K12A BK 1 5N
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPST | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Contact Current Rating | 100 mA @ 30 V dc | |
| IP Rating | IP40 | |
| Operating Force | 5 N | |
| Contact Material | Tin Plated | |
| Operating Temperature Range | -40 → +85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Contact Current Rating 100 mA @ 30 V dc | ||
IP Rating IP40 | ||
Operating Force 5 N | ||
Contact Material Tin Plated | ||
Operating Temperature Range -40 → +85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- FR
K12 Series High Performance Key Switches
K12 Series Keyboard Switches from C & K. Typical applications include automotive, plant machinery, computers, industrial electronics and network equipment
Excellent tactile feel
Designed for low level switching
Designed for low level switching
