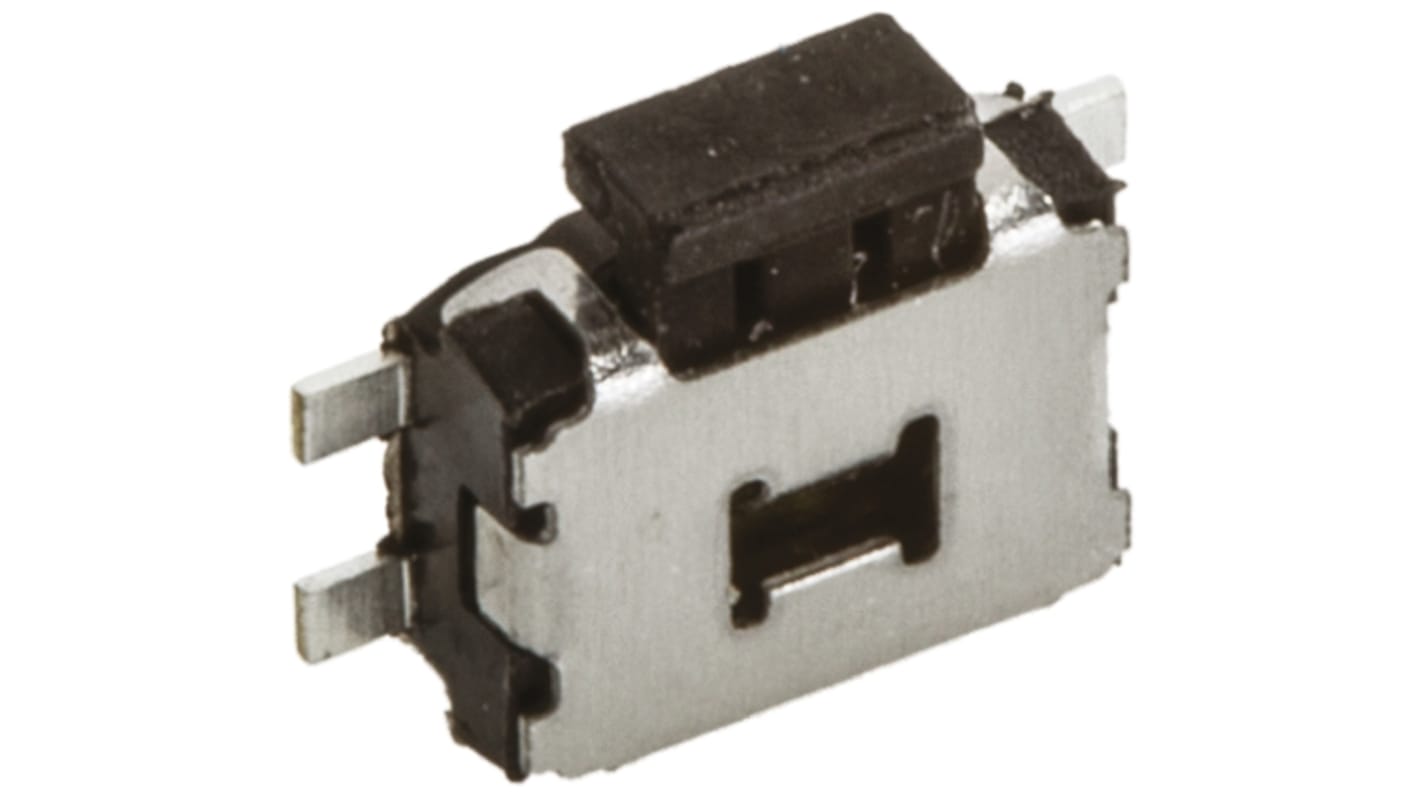

Wurth Elektronik Black Tactile Switch Tactile, 2.6 mm, SPST 50mA 12 V dc, Surface
- RS Stock No.:
- 785-6459
- Distrelec Article No.:
- 301-42-312
- Mfr. Part No.:
- 436331045822
- Brand:
- Wurth Elektronik
Subtotal (1 unit)*
£0.49
(exc. VAT)
£0.59
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 112 unit(s) ready to ship
- Plus 188 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £0.49 |
*price indicative
- RS Stock No.:
- 785-6459
- Distrelec Article No.:
- 301-42-312
- Mfr. Part No.:
- 436331045822
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Actuator Length | 2.6mm | |
| Length | 4.7mm | |
| Width | 4.5mm | |
| Illuminated | No | |
| Contact DC Voltage | 12V dc | |
| Minimum Operating Temperature | 85°C | |
| Actuator Orientation | Right Angle | |
| Mount Type | Surface | |
| Actuator Style | Tactile | |
| Switch Configuration | Off-Mom | |
| Maximum Operating Temperature | -40°C | |
| Switch Contact Current | 50mA | |
| Standards/Approvals | RoHS | |
| Operating Force | 2.16N | |
| Height | 1.65mm | |
| Mechanical Life | 100000Cycles | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Actuator Length 2.6mm | ||
Length 4.7mm | ||
Width 4.5mm | ||
Illuminated No | ||
Contact DC Voltage 12V dc | ||
Minimum Operating Temperature 85°C | ||
Actuator Orientation Right Angle | ||
Mount Type Surface | ||
Actuator Style Tactile | ||
Switch Configuration Off-Mom | ||
Maximum Operating Temperature -40°C | ||
Switch Contact Current 50mA | ||
Standards/Approvals RoHS | ||
Operating Force 2.16N | ||
Height 1.65mm | ||
Mechanical Life 100000Cycles | ||
- COO (Country of Origin):
- CN
Tactile Switch WS-TUS
Stainless Steel cover
Silver clad Stainless Steel contact
Reflow soldering according to JEDEC J-STD 020 Hot Air
Operating temperature range -40°C to +85°C
Tactile
