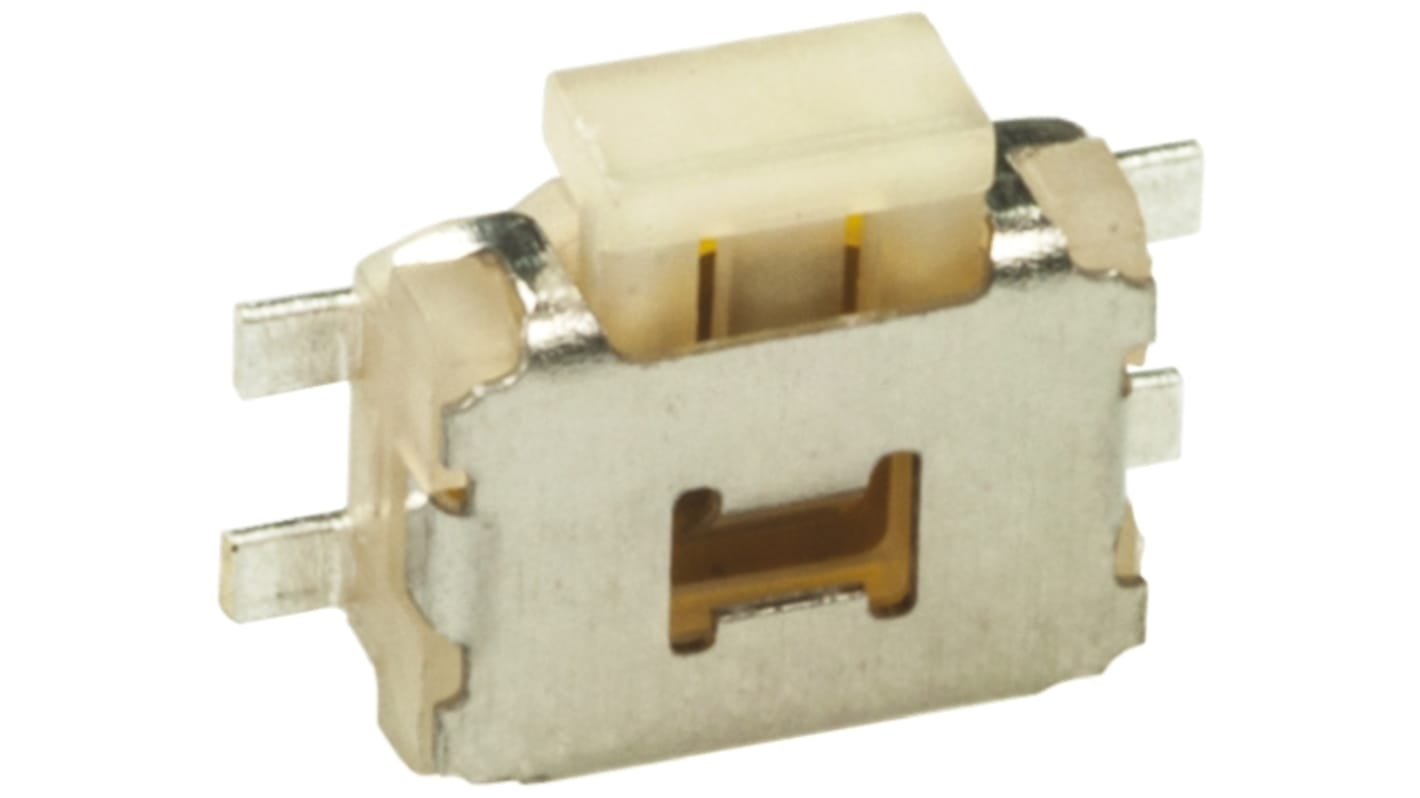

Wurth Elektronik White Tactile Switch, SPST 50 mA @ 12 V dc 2.6mm Surface Mount
- RS Stock No.:
- 785-6447
- Mfr. Part No.:
- 434351045816
- Brand:
- Wurth Elektronik
Subtotal (1 unit)*
£0.49
(exc. VAT)
£0.59
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 6,493 left, ready to ship
- Plus 15 left, ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £0.49 |
*price indicative
- RS Stock No.:
- 785-6447
- Mfr. Part No.:
- 434351045816
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| Switch Operation | Momentary | |
| Actuator Length | 2.6mm | |
| Actuator Colour | White | |
| Actuator Type | Tactile | |
| Length | 4.7mm | |
| Width | 4.5mm | |
| Dimensions | 4.5 x 4.7mm | |
| Illuminated | No | |
| Mounting Type | Surface Mount | |
| Contact Current Rating | 50 mA @ 12 V dc | |
| Voltage Rating | 12V dc | |
| Height | 1.65mm | |
| Operating Force | 1.57 N | |
| Contact Material | Stainless Steel | |
| Mechanical Life | 200000Cycles | |
| Operating Temperature Range | -40 → +85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
Switch Operation Momentary | ||
Actuator Length 2.6mm | ||
Actuator Colour White | ||
Actuator Type Tactile | ||
Length 4.7mm | ||
Width 4.5mm | ||
Dimensions 4.5 x 4.7mm | ||
Illuminated No | ||
Mounting Type Surface Mount | ||
Contact Current Rating 50 mA @ 12 V dc | ||
Voltage Rating 12V dc | ||
Height 1.65mm | ||
Operating Force 1.57 N | ||
Contact Material Stainless Steel | ||
Mechanical Life 200000Cycles | ||
Operating Temperature Range -40 → +85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- CN
Tactile Switch WS-TUS
Stainless Steel cover
Silver clad Stainless Steel contact
Reflow soldering according to JEDEC J-STD 020 Hot Air
Operating temperature range -40°C to +85°C
Silver clad Stainless Steel contact
Reflow soldering according to JEDEC J-STD 020 Hot Air
Operating temperature range -40°C to +85°C
Tactile
