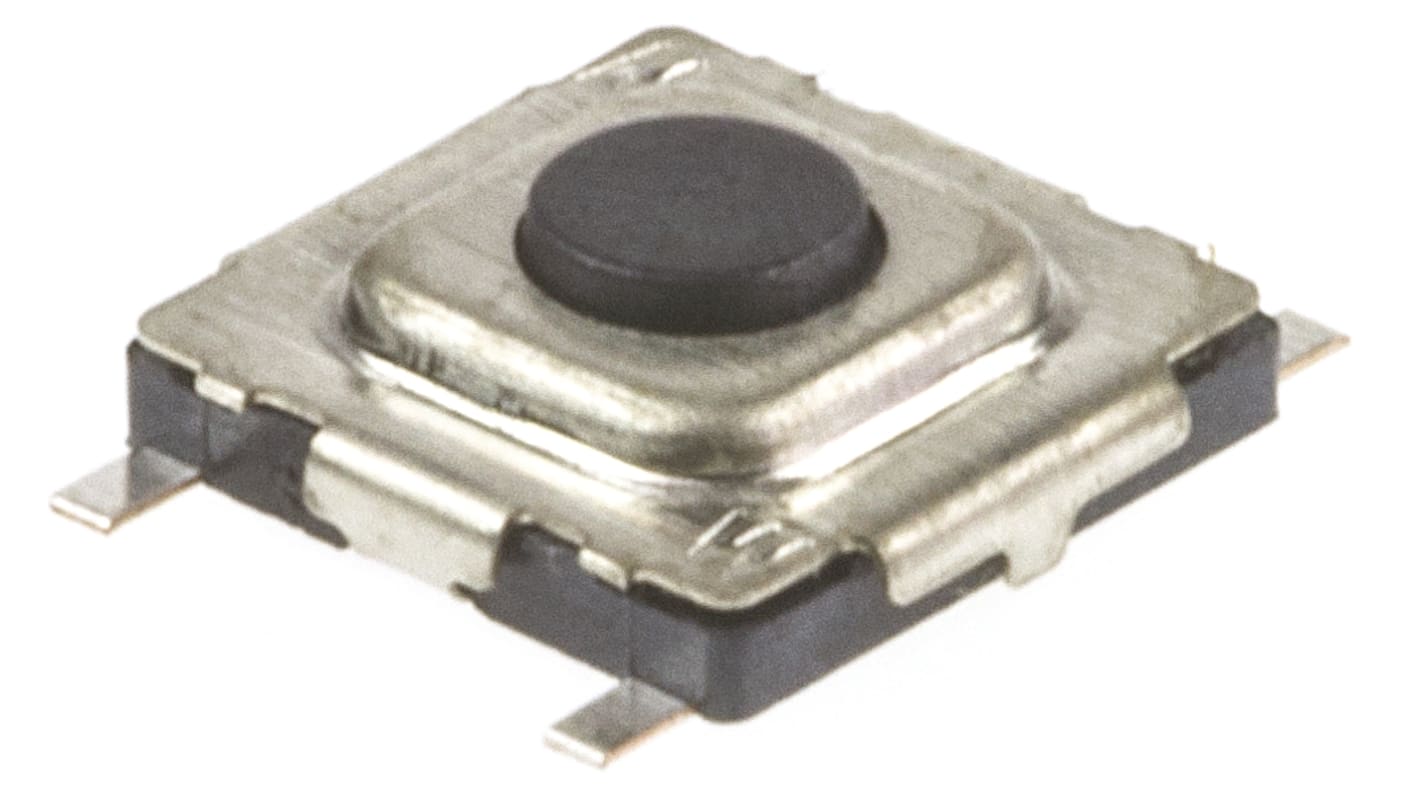

Black Tactile Switch, SPST 20 mA 0.3mm Surface Mount
- RS Stock No.:
- 785-6377
- Mfr. Part No.:
- 431181015816
- Brand:
- Wurth Elektronik
51 In stock for delivery within 1 working days
Added
Price Each
£0.44
(exc. VAT)
£0.53
(inc. VAT)
| Units | Per unit |
| 1 + | £0.44 |
- RS Stock No.:
- 785-6377
- Mfr. Part No.:
- 431181015816
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Tactile Switch WS-TSS
Copper alloy cover
Stainless Steel contacts with silver cladding
Reflow process as per JEDEC J-020D-STD
Operating temperature range -40°C to +85°C
Stainless Steel contacts with silver cladding
Reflow process as per JEDEC J-020D-STD
Operating temperature range -40°C to +85°C
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Solder |
| Switch Operation | Momentary |
| Actuator Length | 0.3mm |
| Actuator Colour | Black |
| Actuator Type | Tactile |
| Length | 5mm |
| Width | 5mm |
| Dimensions | 5 x 5 x 1.5mm |
| Illuminated | No |
| Mounting Type | Surface Mount |
| Contact Current Rating | 20 mA |
| Height | 1.5mm |
| Voltage Rating | 15V dc |
| Operating Force | 1.57 N |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 1000000Cycles |
| Contact Material | Stainless Steel |
