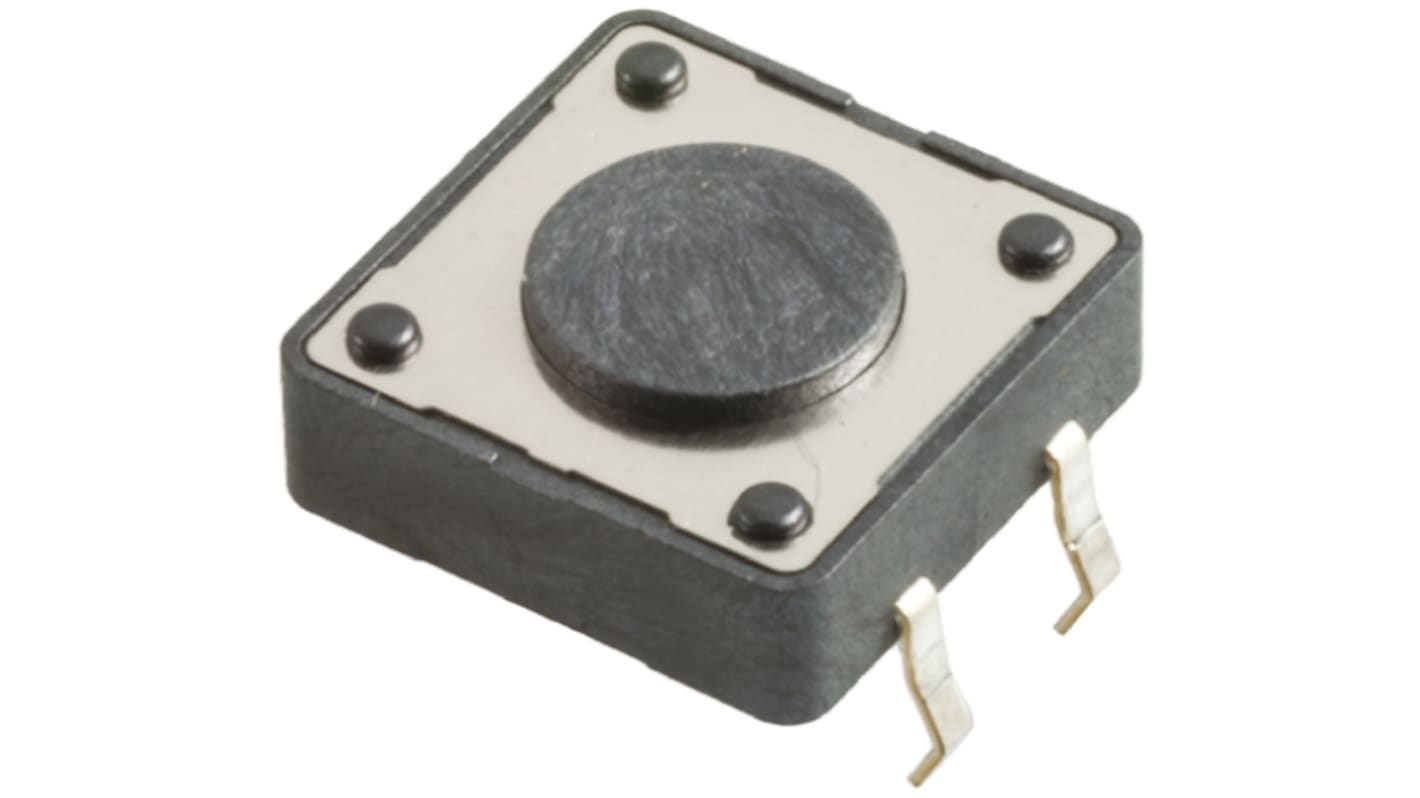

Wurth Elektronik Black Button Tactile Switch, SPST 50 mA @ 12 V dc 5mm Through Hole
- RS Stock No.:
- 785-6305
- Distrelec Article No.:
- 301-42-286
- Mfr. Part No.:
- 430476043716
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£0.49
(exc. VAT)
£0.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 145 unit(s) shipping from 03 October 2025
- Plus 68 unit(s) shipping from 03 October 2025
- Plus 600 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £0.49 |
| 25 - 49 | £0.47 |
| 50 - 99 | £0.44 |
| 100 - 249 | £0.42 |
| 250 + | £0.39 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£0.43
(exc. VAT)
£0.52
(inc. VAT)
- RS Stock No.:
- 785-6305
- Distrelec Article No.:
- 301-42-286
- Mfr. Part No.:
- 430476043716
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Contact Configuration | SPST | |
| Terminal Type | Solder, Through Hole | |
| Switch Operation | Momentary | |
| Actuator Length | 5mm | |
| Actuator Colour | Black | |
| Actuator Type | Button | |
| Length | 12.5mm | |
| Width | 12mm | |
| Dimensions | 12 x 12.5mm | |
| Illuminated | No | |
| Mounting Type | Through Hole | |
| Contact Current Rating | 50 mA @ 12 V dc | |
| Operating Force | 1.57 N | |
| Height | 4.3mm | |
| Voltage Rating | 12V dc | |
| Mechanical Life | 500000Cycles | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Plated Stainless Steel | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Contact Configuration SPST | ||
Terminal Type Solder, Through Hole | ||
Switch Operation Momentary | ||
Actuator Length 5mm | ||
Actuator Colour Black | ||
Actuator Type Button | ||
Length 12.5mm | ||
Width 12mm | ||
Dimensions 12 x 12.5mm | ||
Illuminated No | ||
Mounting Type Through Hole | ||
Contact Current Rating 50 mA @ 12 V dc | ||
Operating Force 1.57 N | ||
Height 4.3mm | ||
Voltage Rating 12V dc | ||
Mechanical Life 500000Cycles | ||
Operating Temperature Range -40 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Plated Stainless Steel | ||
- COO (Country of Origin):
- CN
Tactile Switch Washable THT
Stainless Steel cover
Stainless Steel contacts with silver cladding
Wave soldering 260°C 10 seconds. Max.
Operating temperature range -40°C to +85°C
Stainless Steel contacts with silver cladding
Wave soldering 260°C 10 seconds. Max.
Operating temperature range -40°C to +85°C
Tactile
