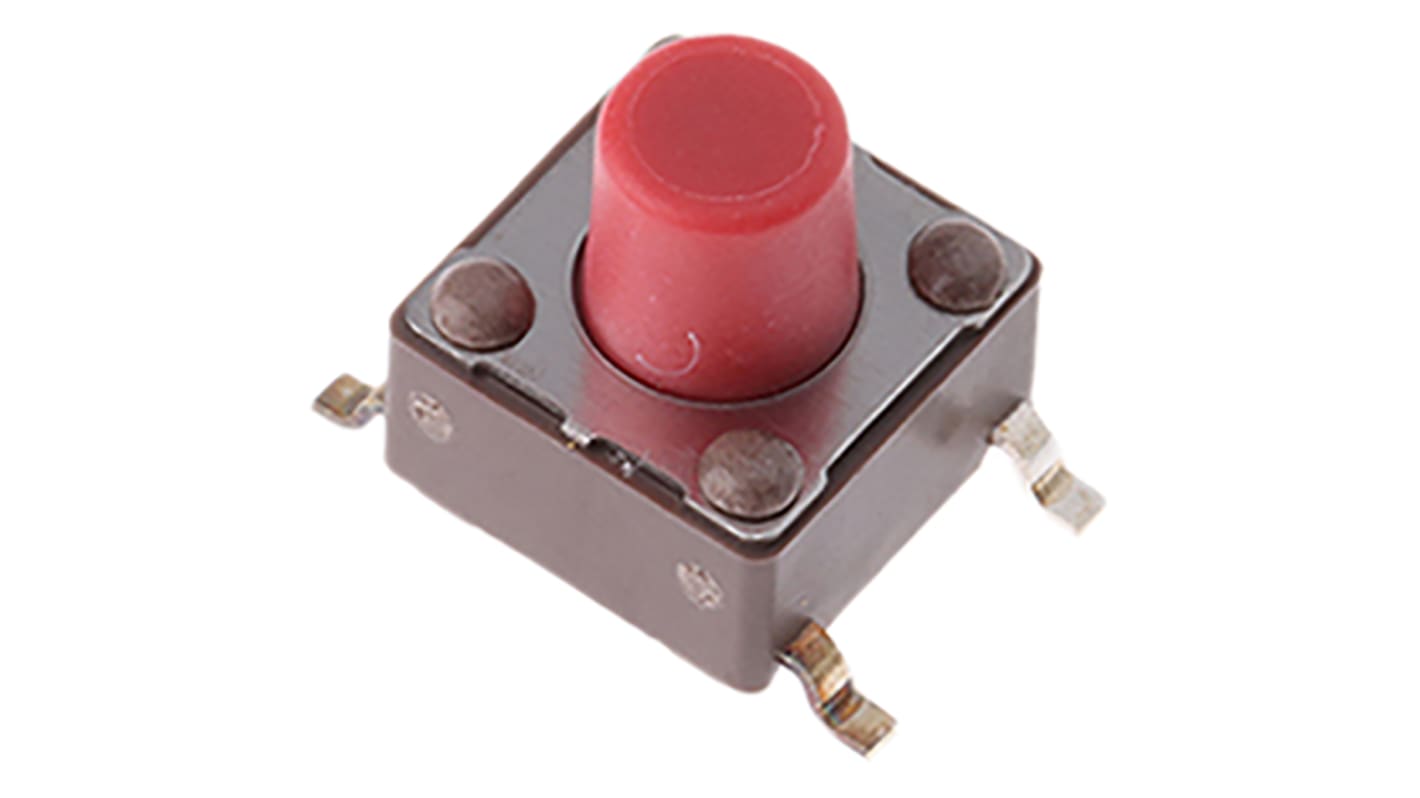

Apem Red Stem Tactile Switch, SPST 50 mA @ 12 V dc 7mm Surface Mount
- RS Stock No.:
- 765-1074
- Mfr. Part No.:
- DTSM63RV
- Brand:
- APEM
Bulk discount available
Subtotal (1 tube of 77 units)*
£7.931
(exc. VAT)
£9.548
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 462 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 77 - 308 | £0.103 | £7.93 |
| 385 - 1848 | £0.095 | £7.32 |
| 1925 - 3773 | £0.085 | £6.55 |
| 3850 - 7623 | £0.077 | £5.93 |
| 7700 + | £0.072 | £5.54 |
*price indicative
- RS Stock No.:
- 765-1074
- Mfr. Part No.:
- DTSM63RV
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | SPST | |
| Terminal Type | Solder, Tab | |
| Switch Operation | Momentary | |
| Actuator Length | 7mm | |
| Actuator Colour | Red | |
| Actuator Type | Stem | |
| Length | 6mm | |
| Width | 6mm | |
| Dimensions | 6 x 6mm | |
| Mounting Type | Surface Mount | |
| Contact Current Rating | 50 mA @ 12 V dc | |
| Height | 7mm | |
| Operating Force | 2.6 N | |
| Minimum Operating Temperature | -25°C | |
| Contact Material | Phosphor Bronze | |
| Maximum Operating Temperature | +70°C | |
| Operating Temperature Range | -25 → +70°C | |
Select all | ||
|---|---|---|
Brand APEM | ||
Contact Configuration SPST | ||
Terminal Type Solder, Tab | ||
Switch Operation Momentary | ||
Actuator Length 7mm | ||
Actuator Colour Red | ||
Actuator Type Stem | ||
Length 6mm | ||
Width 6mm | ||
Dimensions 6 x 6mm | ||
Mounting Type Surface Mount | ||
Contact Current Rating 50 mA @ 12 V dc | ||
Height 7mm | ||
Operating Force 2.6 N | ||
Minimum Operating Temperature -25°C | ||
Contact Material Phosphor Bronze | ||
Maximum Operating Temperature +70°C | ||
Operating Temperature Range -25 → +70°C | ||
- COO (Country of Origin):
- CN
Apem DTSM-6 Series Tact Switches
Apem DTSM-6 series tactile or tact SPST switches are designed to be used with small currents and feature a sharp click feel and positive tactile feedback. A small movement distance on these tact switches mean that the user experiences a distinct sensation when the switch ’clicks’ into place. This series of Apem tact switches have SMT terminals, low contact resistance and high reliability. The ultra-miniature and lightweight structure of this series of tact switches ensures suitability of high density mounting.
Vertical operating direction
Low contact resistance: 100mΩ
Insulation resistance >100MΩ at 500Vdc
Positive tactile feedback
Long life
Low contact resistance: 100mΩ
Insulation resistance >100MΩ at 500Vdc
Positive tactile feedback
Long life
Tactile
