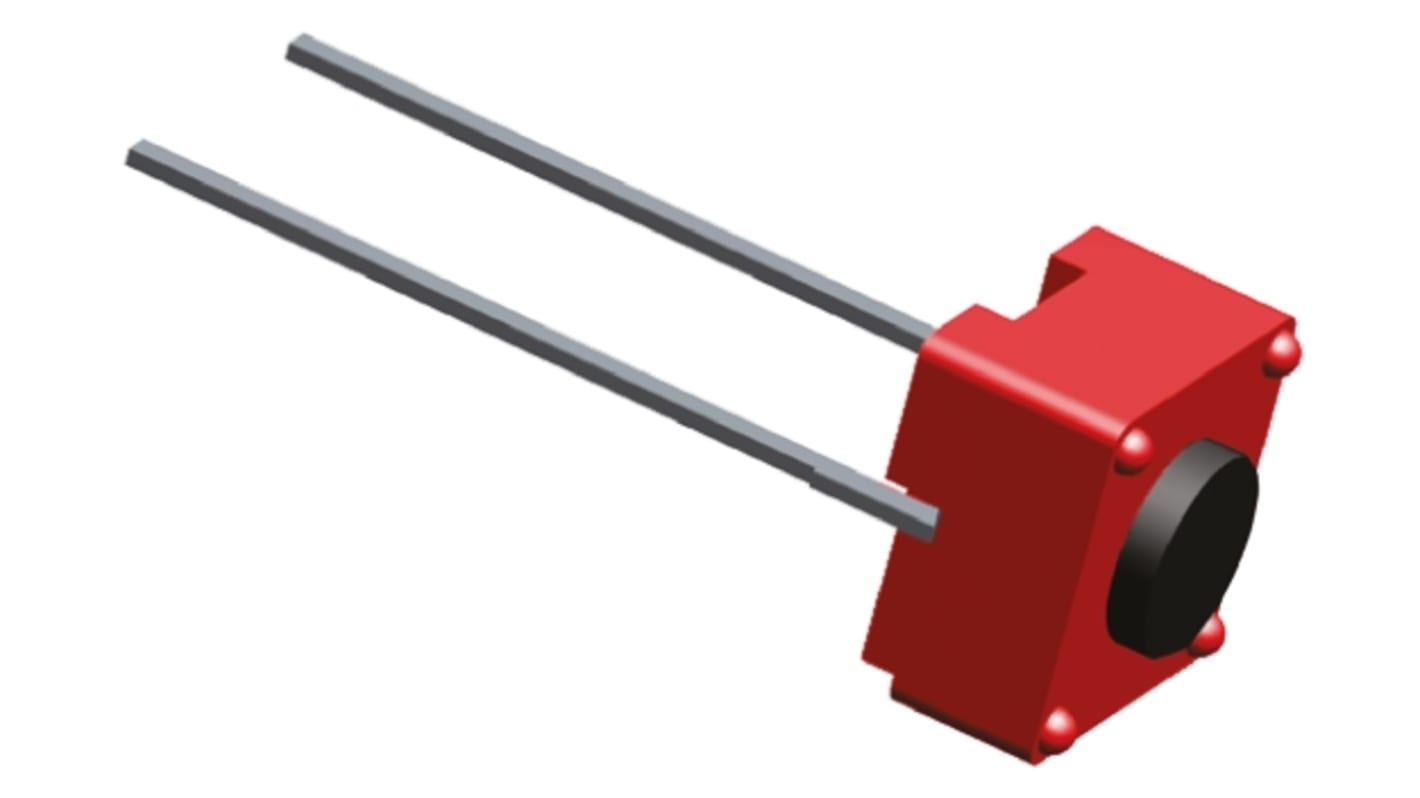

Black Tactile Switch, SPST 50 mA @ 24 V dc 0.7mm
- RS Stock No.:
- 745-5185
- Mfr. Part No.:
- FSM2JART
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 745-5185
- Mfr. Part No.:
- FSM2JART
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| Switch Operation | Momentary | |
| Actuator Length | 0.7mm | |
| Actuator Colour | Black | |
| Actuator Type | Tactile | |
| Contact Current Rating | 50 mA @ 24 V dc | |
| Operating Force | 160 gf | |
| Maximum Operating Temperature | +105°C | |
| Operating Temperature Range | -35 → +105°C | |
| Minimum Operating Temperature | -35°C | |
| Contact Material | Silver Over Nickel Plated Brass, Silver Plated Phosphorus Bronze | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
Switch Operation Momentary | ||
Actuator Length 0.7mm | ||
Actuator Colour Black | ||
Actuator Type Tactile | ||
Contact Current Rating 50 mA @ 24 V dc | ||
Operating Force 160 gf | ||
Maximum Operating Temperature +105°C | ||
Operating Temperature Range -35 → +105°C | ||
Minimum Operating Temperature -35°C | ||
Contact Material Silver Over Nickel Plated Brass, Silver Plated Phosphorus Bronze | ||
TE Connectivity FSM Series Tactile Switches
TE Connectivity brings you a range of professional and brilliant tactile switches. The FSM series of tactile switches are housed in a strong 'Nylon 66' material and feature a moving contact of copper alloy-silver. These tactile switches are great use for mounting on your PCB to close a circuit. The small tactile switches come in THT & SMT mounting styles and excellent quality.
Features and benefits:
• Up to 1 Million operations
• Actuation force of 1.6N to 2.5N
• Small PCB footprint
• Low profile
• 0.25 Actuation travel
• Actuation force of 1.6N to 2.5N
• Small PCB footprint
• Low profile
• 0.25 Actuation travel
Applications:
• Keyboards
• Keypads
• Telephones
• Radios
• General consumer electronics
• Closing the circuit on a PCV
• Keypads
• Telephones
• Radios
• General consumer electronics
• Closing the circuit on a PCV
Tactile
