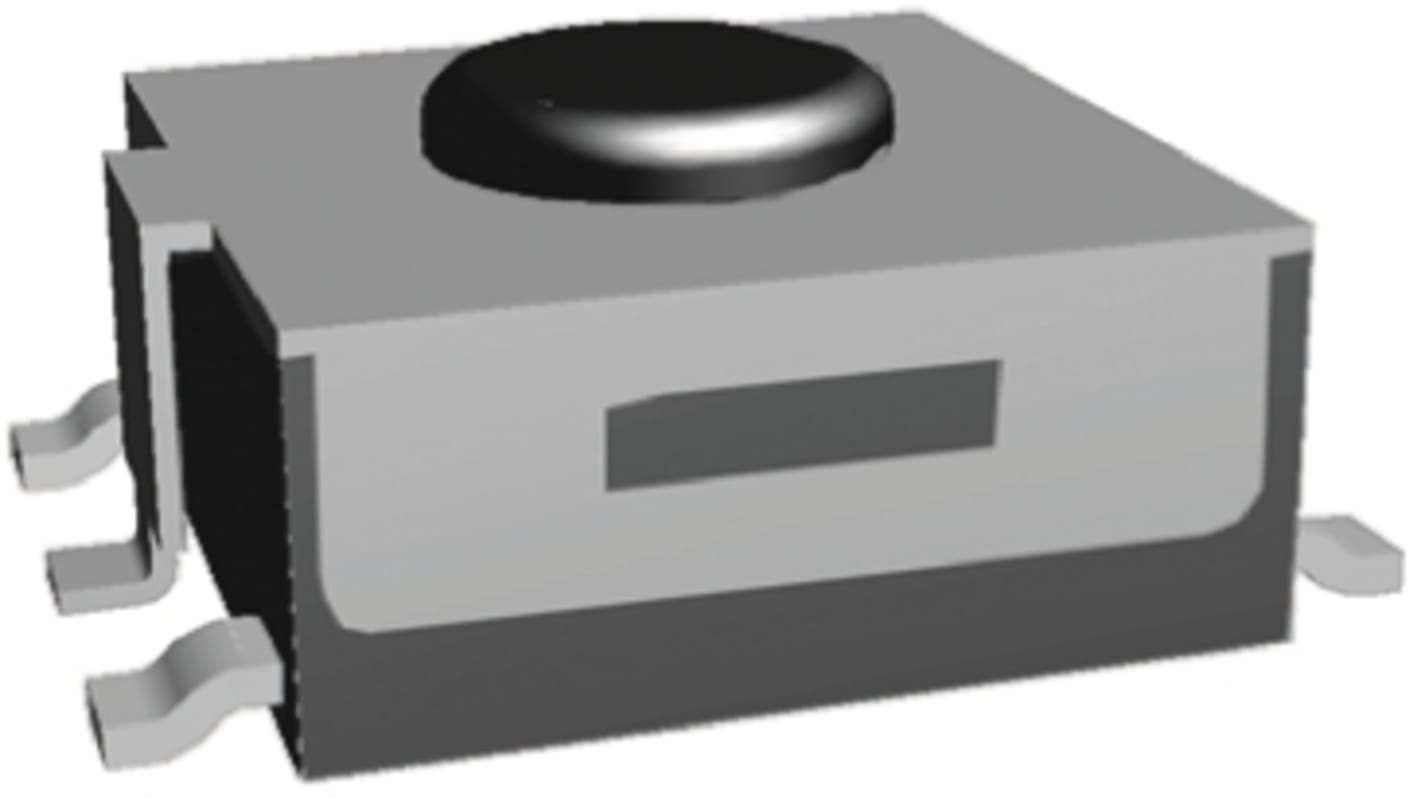

Black Button Tactile Switch, SPST 50 mA @ 24 V dc 0.27mm
- RS Stock No.:
- 718-2452
- Mfr. Part No.:
- FSM1LPTR
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 718-2452
- Mfr. Part No.:
- FSM1LPTR
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | SPST | |
| Terminal Type | Through Hole | |
| Switch Operation | Momentary | |
| Actuator Length | 0.27mm | |
| Actuator Colour | Black | |
| Actuator Type | Button | |
| Dimensions | 6 x 6 x 3.10mm | |
| Contact Current Rating | 50 mA @ 24 V dc | |
| Height | 3.1mm | |
| Operating Force | 1.6 N | |
| Operating Temperature Range | -20 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -20°C | |
| Contact Material | Silver Copper Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Configuration SPST | ||
Terminal Type Through Hole | ||
Switch Operation Momentary | ||
Actuator Length 0.27mm | ||
Actuator Colour Black | ||
Actuator Type Button | ||
Dimensions 6 x 6 x 3.10mm | ||
Contact Current Rating 50 mA @ 24 V dc | ||
Height 3.1mm | ||
Operating Force 1.6 N | ||
Operating Temperature Range -20 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -20°C | ||
Contact Material Silver Copper Alloy | ||
