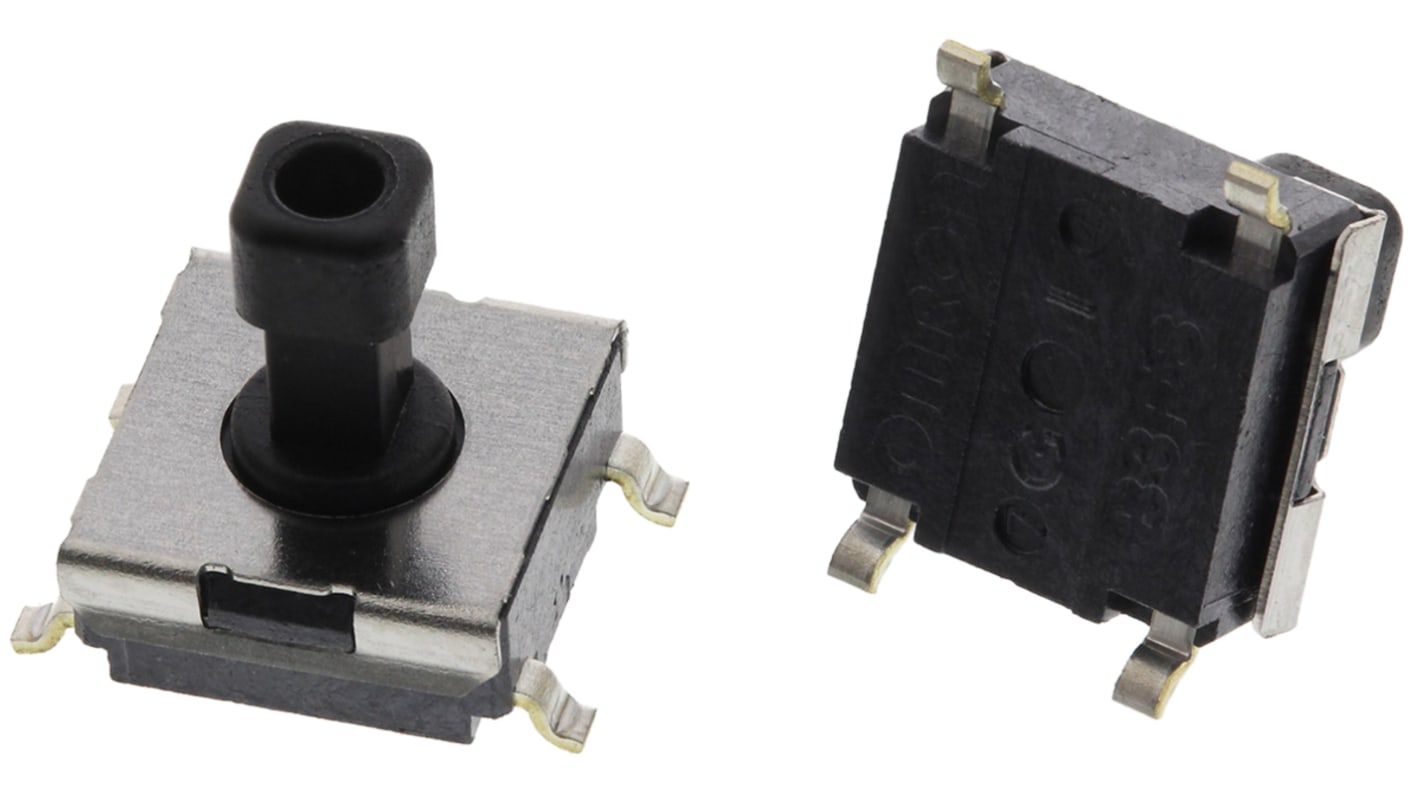

Omron Plunger Tactile Switch, SPST 50 mA @ 24 V dc 4.7mm Through Hole
- RS Stock No.:
- 682-1279
- Mfr. Part No.:
- B3FS-1050
- Brand:
- Omron
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.39
(exc. VAT)
£8.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 245 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 90 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.478 | £7.39 |
| 50 - 120 | £1.334 | £6.67 |
| 125 - 245 | £1.214 | £6.07 |
| 250 - 495 | £1.108 | £5.54 |
| 500 + | £1.034 | £5.17 |
*price indicative
- RS Stock No.:
- 682-1279
- Mfr. Part No.:
- B3FS-1050
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Contact Configuration | SPST | |
| Terminal Type | Surface Mount | |
| Actuator Length | 4.7mm | |
| Actuator Type | Plunger | |
| Length | 6.3mm | |
| Width | 6mm | |
| Dimensions | 6.3 x 6 x 7.3mm | |
| Mounting Type | Through Hole | |
| Contact Current Rating | 50 mA @ 24 V dc | |
| Operating Force | 0.98 N | |
| Height | 7.3mm | |
| Maximum Operating Temperature | +70°C | |
| Mechanical Life | 1000000Operations | |
| Operating Temperature Range | -25 → +70°C | |
| Contact Material | Silver Plated | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Contact Configuration SPST | ||
Terminal Type Surface Mount | ||
Actuator Length 4.7mm | ||
Actuator Type Plunger | ||
Length 6.3mm | ||
Width 6mm | ||
Dimensions 6.3 x 6 x 7.3mm | ||
Mounting Type Through Hole | ||
Contact Current Rating 50 mA @ 24 V dc | ||
Operating Force 0.98 N | ||
Height 7.3mm | ||
Maximum Operating Temperature +70°C | ||
Mechanical Life 1000000Operations | ||
Operating Temperature Range -25 → +70°C | ||
Contact Material Silver Plated | ||
Minimum Operating Temperature -25°C | ||
Tactile Switches Omron B3FS
Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators
Positive click action plus a long life equal to that of a no-contact switch.
Note
Manufacturers part numbers with the P suffix are supplied on tape reel or strip and part numbers without the P suffix are bag quantity
Tactile
