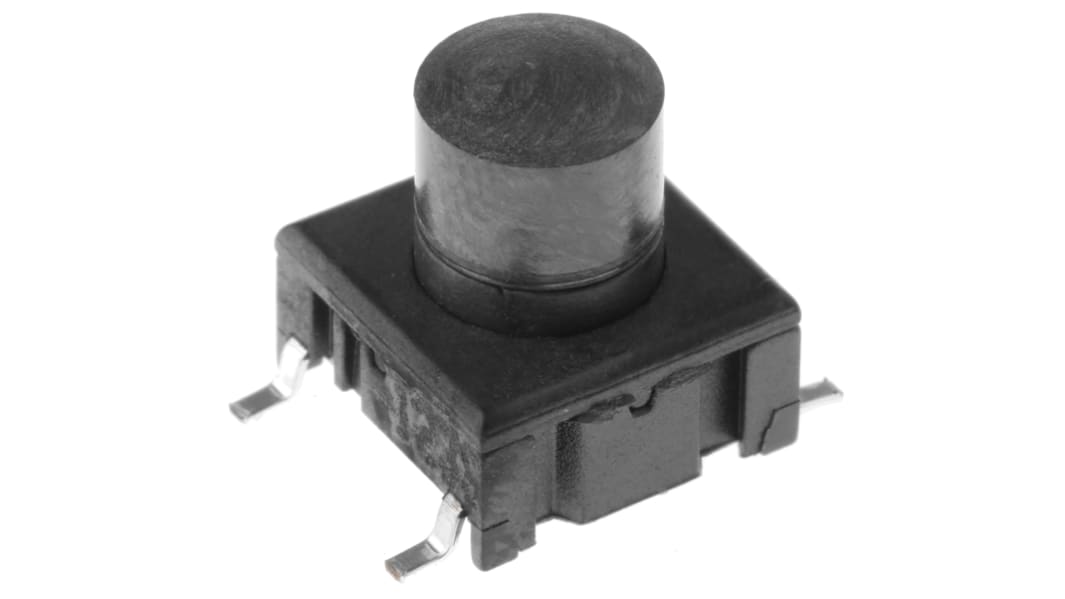

MEC IP67 Black Button Tactile Switch, SPST 50 mA @ 24 V dc 5.9mm PCB
- RS Stock No.:
- 495-2242
- Mfr. Part No.:
- 3ESH9-11.0
- Brand:
- MEC
Bulk discount available
Subtotal (1 unit)*
£2.80
(exc. VAT)
£3.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 198 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.80 |
| 10 - 24 | £2.51 |
| 25 - 49 | £2.30 |
| 50 - 99 | £2.10 |
| 100 + | £1.97 |
*price indicative
- RS Stock No.:
- 495-2242
- Mfr. Part No.:
- 3ESH9-11.0
- Brand:
- MEC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEC | |
| Contact Configuration | SPST | |
| Terminal Type | Surface Mount | |
| Switch Operation | Momentary | |
| Actuator Length | 5.9mm | |
| Actuator Colour | Black | |
| Actuator Type | Button | |
| Length | 10.1mm | |
| Width | 10.1mm | |
| Dimensions | 10.1 x 10.1mm | |
| Illuminated | No | |
| Mounting Type | PCB | |
| Contact Current Rating | 50 mA @ 24 V dc | |
| IP Rating | IP67 | |
| Height | 11mm | |
| Voltage Rating | 24V dc | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +160°C | |
| Mechanical Life | 10000000Operations | |
| Maximum Operating Temperature | +160°C | |
Select all | ||
|---|---|---|
Brand MEC | ||
Contact Configuration SPST | ||
Terminal Type Surface Mount | ||
Switch Operation Momentary | ||
Actuator Length 5.9mm | ||
Actuator Colour Black | ||
Actuator Type Button | ||
Length 10.1mm | ||
Width 10.1mm | ||
Dimensions 10.1 x 10.1mm | ||
Illuminated No | ||
Mounting Type PCB | ||
Contact Current Rating 50 mA @ 24 V dc | ||
IP Rating IP67 | ||
Height 11mm | ||
Voltage Rating 24V dc | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +160°C | ||
Mechanical Life 10000000Operations | ||
Maximum Operating Temperature +160°C | ||
- COO (Country of Origin):
- DK
Multimec® 3C/3E Switches
SPNO momentary action
Sealed to IP67
Base 10.1x10.1mm with 6.5mm Ø black actuator, available in various heights
Sealed to IP67
Base 10.1x10.1mm with 6.5mm Ø black actuator, available in various heights
